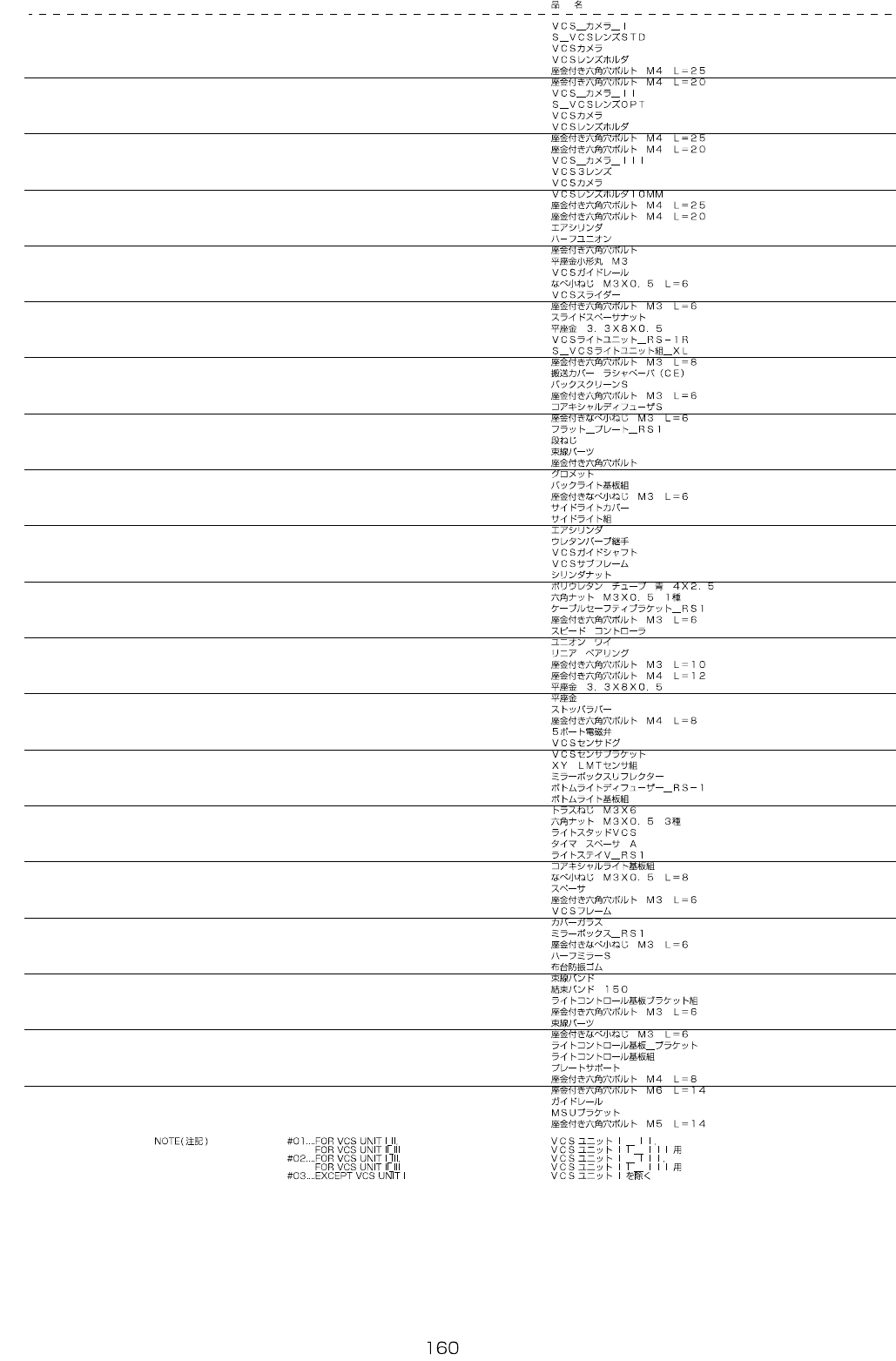

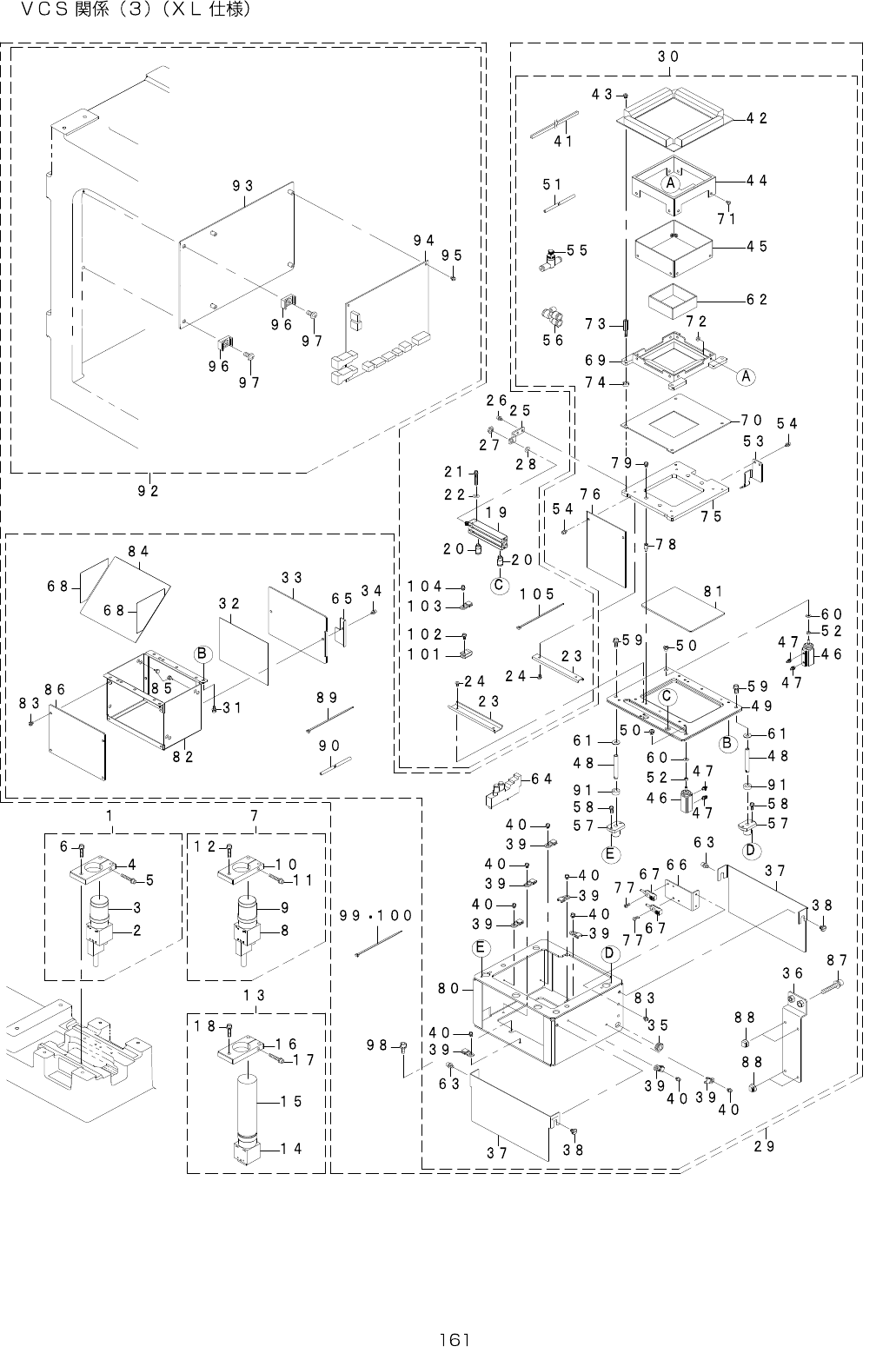

- - 81. VCSCOMPONENT S(3)(TYPEXL)

100%1 / 246
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-86783 VCS_CAMERA_I 1
2 401-09807 S_VCSLENSSTD (1)
3 401-33149 VCSCAMERA (1)
4 400-93915 VCS_LENS_HOLDER (1)
5 SL-6042592-TN SCREWM4L=25 (1)
6 SL-6042092-TN SCREWM4L=20 (3)
7
#01
401-86784 VCS_CAMERA_II 1
8 401-09808 S_VCSLENSOPT (1)
9 401-33149 VCSCAMERA (1)
10 400-93915 VCS_LENS_HOLDER (1)
11 SL-6042592-TN SCREWM4L=25 (1)
12 SL-6042092-TN SCREWM4L=20 (3)
13
#02
401-86785 VCS_CAMERA_III 1
14 401-88312 VCS3LENS (1)
15 401-88244 VCSCAMERA (1)
16 401-88162 VCS_LENS_HOLDER_10MM (1)
17 SL-6042592-TN SCREWM4L=25 (1)
18 SL-6042092-TN SCREWM4L=20 (3)
19
#03
400-71347 AIR_CYLINDER 1
20
#03
PJ-3010405-05 HALFUNION 2
21
#03
SL-6032542-TN SCREW 2
22
#03
WP-0320500-SC WASHERM3 2
23
#03
400-00628 VCSGUIDERAIL 1
24
#03
SM-4030601-SC SCREWM3X0.5L=6 8
25
#03
400-00629 VCSSLIDER 1
26
#03
SL-6030692-TN SCREWM3L=6 2
27
#03
400-00630 SLIDESPACERNUT 1
28
#03
WP-0330516-SC WASHER3.3X8X0.5 1
29 402-21639 VCS_LIGHT_UNIT_RS1R 1
30 402-15206 S_VCS_LIGHT_UNIT_ASM_XL (1)
31 SL-6030892-TN SCREWM3L=8 (4)
32 E1143-721-000 WOOLENCLOTHPAPER (1)
33 400-71348 BACK_SCREEN_S (1)
34 SL-6030692-TN SCREWM3L=6 (2)
35 400-71349 COAXIAL_DIFFUSER_S (1)
36 SL-4030691-SC SCREWM3L=6 (2)
37 401-86249 FLAT_PLATE_RS1 (2)
38 400-56913 STEPSCREW (2)
39 HX-0034400-00 FIXEDBASE (8)
40 SL-6030592-TN SCREWM3L=5 (6)
41 HX-0067100-0B GROMMET
(0.07)
42 401-32986 BACKLIGHTPCBASM (1)
43 SL-4030691-SC SCREWM3L=6 (4)
44 401-11657 SIDE_LIGHT_COVER (1)
45 401-80854 SIDELIGHTASM (2)
46 401-83363 AIR_CYLINDER (2)
47 PJ-0320390-01 URETHANEBARBEDJOINT (4)
48 401-83364 VCS_GUIDE_SH (2)
49 401-83365 VCS_SUB_FRAME (1)
50 401-83366 CYLINDER_NUT (2)
51 BT-0400251-EA URETHANETUBEBLUE4X2.5 (1.5)
52 NM-6030001-SC NUTM3X0.5TYPE1 (2)
53 401-83371 CABLE_SAFETY_BR_RS1 (1)
54 SL-6030692-TN SCREWM3L=6 (6)
55 PC-0124070-00 SPEEDCONTROLLER (2)
56 PJ-3080400-06 UNIONY (2)
57 SB-8060001-00 LINEARBEARING (2)
58 SL-6031092-TN SCREWM3L=10 (4)
59 SL-6041292-TN SCREWM4L=12 (2)
60 WP-0330516-SC WASHER3.3X8X0.5 (2)
61 WP-0431005-SP PLAINWASHER4.3X12X1 (2)
62 402-05095 STOPPER_RUBBER (2)
63 SL-6040892-TN SCREWM4L=8 (2)
64 PV-1502093-00 5-PORTSOLENOIDVALVE (1)
65 401-83368 VCS_SENSOR_DOG (1)
66 401-83369 VCS_SENSOR_BR (1)
67 401-65028 XYLMTSENSORASM (2)
68 401-83372 MIRROR_BOX_REFLECTOR (2)
69 402-19112 BOTTOM_LIGHT_DIFFUSER_RS-1 (1)
70 401-80852 BOTTOMLIGHTPCBASM (1)
71 SM-0030601-SC SCREWM3X6 (8)
72 NM-6030003-SC NUTM3X0.5TYPE3 (8)
73 400-23599 LIGHTSTUDVCS (4)
74 E2143-715-000 TIMERSPACERA (4)
75 401-83370 LIGHT_STAY_V_RS1 (1)
76 401-80857 COAXIALLIGHTPCBASM (1)
77 SM-4030801-SC SCREWM3X0.5L=8 (2)
78 HX-0035400-0B SPACER (4)
79 SL-6030642-TN SCREWM3L=6 (4)
80 402-15876 VCS_FRAME (1)
81 400-71351 COVER_GLASS (1)
82 401-83361 MIRROR_BOX_RS1 (1)
83 SL-4030691-SC SCREWM3L=6 (6)
84 400-71350 HALF_MIRROR_S (1)
85 118-04606 RUBBERPLUG (8)
86 EA-9500B01-00 CABLEBAND (10)
87 EA-9500B02-00 CABLEBAND150 (15)
88 401-83858 LIGHT_CONTROL_PCB_BR_ASM (1)
89 SL-6030692-TN SCREWM3L=6 (1)
90 HX-0034400-00 FIXEDBASE (2)
91 SL-4030691-SC SCREWM3L=6 (2)
92 401-83015 LIGHT_CTRL_PCB_BR (1)
93 401-32991 LIGHTCONTROLPCBASM (1)
94 401-62631 PLATE_SUPPORT (3)
95 SL-6040892-TN SCREWM4L=8 (3)
96 SL-6061492-TN SCREWM6L=14 (3)
97 HX-0002600-00 GUIDERAIL (2)
98 400-47390 MSU_BRACKET (1)
99 SL-6051492-TN SCREWM5L=14 (4)
- -

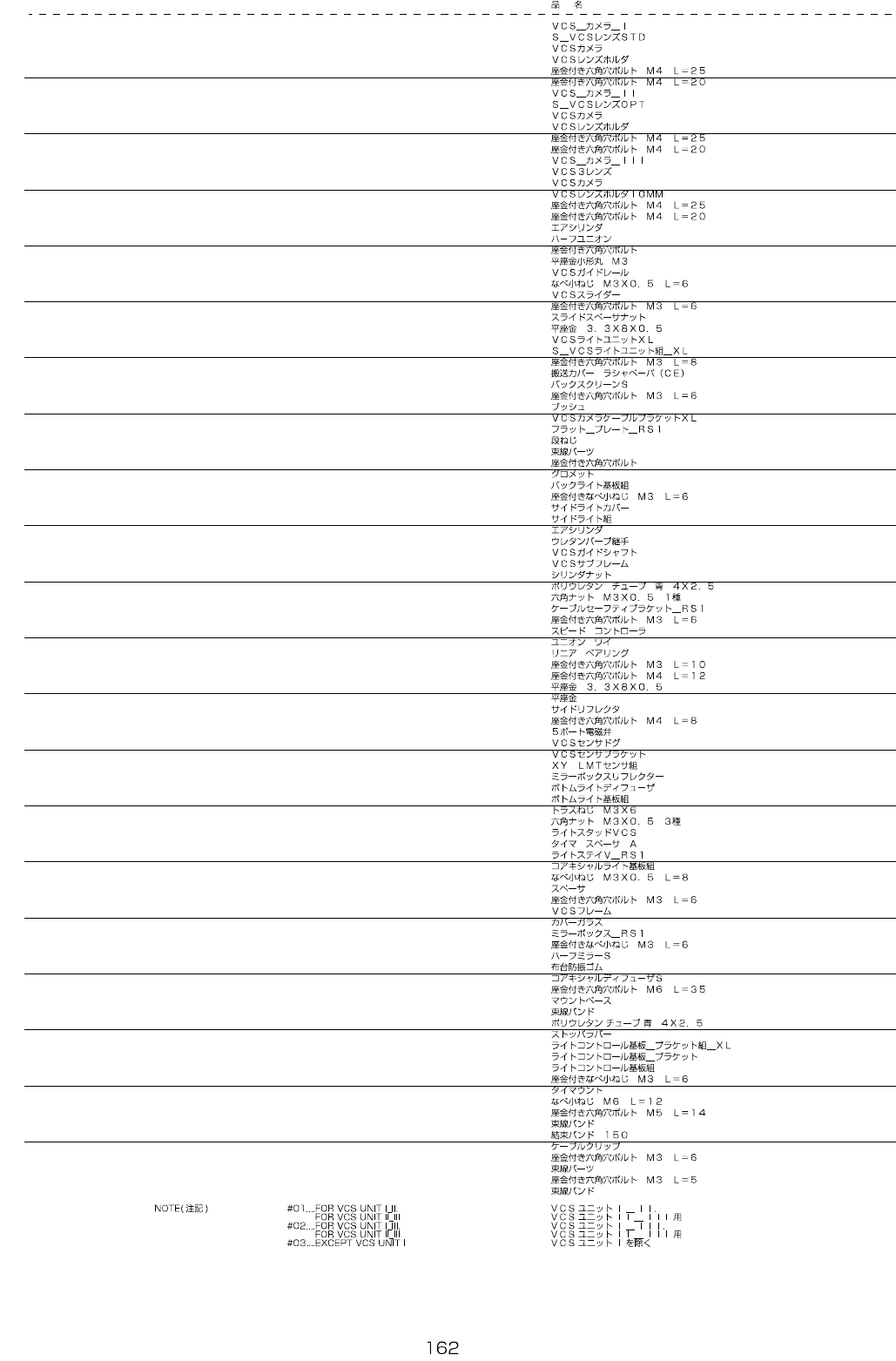

81.VCSCOMPONENTS(3)(TYPEXL)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-86783 VCS_CAMERA_I 1
2 401-09807 S_VCSLENSSTD (1)
3 401-33149 VCSCAMERA (1)
4 400-93915 VCS_LENS_HOLDER (1)
5 SL-6042592-TN SCREWM4L=25 (1)
6 SL-6042092-TN SCREWM4L=20 (3)
7
#01
401-86784 VCS_CAMERA_II 1
8 401-09808 S_VCSLENSOPT (1)
9 401-33149 VCSCAMERA (1)
10 400-93915 VCS_LENS_HOLDER (1)
11 SL-6042592-TN SCREWM4L=25 (1)
12 SL-6042092-TN SCREWM4L=20 (3)
13
#02
401-86785 VCS_CAMERA_III 1
14 401-88312 VCS3LENS (1)
15 401-88244 VCSCAMERA (1)
16 401-88162 VCS_LENS_HOLDER_10MM (1)
17 SL-6042592-TN SCREWM4L=25 (1)
18 SL-6042092-TN SCREWM4L=20 (3)
19
#03
400-71347 AIR_CYLINDER 1
20
#03
PJ-3010405-05 HALFUNION 2
21
#03
SL-6032542-TN SCREW 2
22
#03
WP-0320500-SC WASHERM3 2
23
#03
400-00628 VCSGUIDERAIL 1
24
#03
SM-4030601-SC SCREWM3X0.5L=6 8
25
#03
400-00629 VCSSLIDER 1
26
#03
SL-6030692-TN SCREWM3L=6 2
27
#03
400-00630 SLIDESPACERNUT 1
28
#03
WP-0330516-SC WASHER3.3X8X0.5 1
29 402-15597 VCS_LIGHT_UNIT_XL 1
30 402-15206 S_VCS_LIGHT_UNIT_ASM_XL (1)
31 SL-6030892-TN SCREWM3L=8 (4)
32 E1143-721-000 WOOLENCLOTHPAPER (1)
33 400-71348 BACK_SCREEN_S (1)
34 SL-6030692-TN SCREWM3L=6 (2)
35
#01
HX-0005500-0E GROMMET (1)
36 402-15160 VCS_CAMERA_CABLE_BR_XL (1)
37 401-86249 FLAT_PLATE_RS1 (2)
38 400-56913 STEPSCREW (2)
39 HX-0034400-00 FIXEDBASE (8)
40 SL-6030592-TN SCREWM3L=5 (6)
41 HX-0067100-0A GROMMET
(0.07)
42 401-32986 BACKLIGHTPCBASM (1)
43 SL-4030691-SC SCREWM3L=6 (4)
44 401-11657 SIDE_LIGHT_COVER (1)
45 401-80854 SIDELIGHTASM (2)
46 401-83363 AIR_CYLINDER (2)
47 PJ-0320390-01 URETHANEBARBEDJOINT (4)
48 401-83364 VCS_GUIDE_SH (2)
49 401-83365 VCS_SUB_FRAME (1)
50 401-83366 CYLINDER_NUT (2)
51 BT-0400251-EA URETHANETUBEBLUE4X2.5 (1.5)
52 NM-6030001-SC NUTM3X0.5TYPE1 (2)
53 401-83371 CABLE_SAFETY_BR_RS1 (1)
54 SL-6030692-TN SCREWM3L=6 (6)
55 PC-0124070-00 SPEEDCONTROLLER (2)
56 PJ-3080400-06 UNIONY (2)
57 SB-8060001-00 LINEARBEARING (2)
58 SL-6031092-TN SCREWM3L=10 (4)
59 SL-6041292-TN SCREWM4L=12 (2)
60 WP-0330516-SC WASHER3.3X8X0.5 (2)
61 WP-0431005-SP PLAINWASHER4.3X12X1 (2)
62 401-83367 SIDE_REFLECTOR (4)
63 SL-6040892-TN SCREWM4L=8 (2)
64 PV-1502093-00 5-PORTSOLENOIDVALVE (1)
65 401-83368 VCS_SENSOR_DOG (1)
66 401-83369 VCS_SENSOR_BR (1)
67 401-65028 XYLMTSENSORASM (2)
68 401-83372 MIRROR_BOX_REFLECTOR (2)
69 401-11656 BOTTOM_LIGHT_DIFFUSER (1)
70 401-80852 BOTTOMLIGHTPCBASM (1)
71 SM-0030601-SC SCREWM3X6 (8)
72 NM-6030003-SC NUTM3X0.5TYPE3 (8)
73 400-23599 LIGHTSTUDVCS (4)
74 E2143-715-000 TIMERSPACERA (4)
75 401-83370 LIGHT_STAY_V_RS1 (1)
76 401-80857 COAXIALLIGHTPCBASM (1)
77 SM-4030801-SC SCREWM3X0.5L=8 (2)
78 HX-0035400-0B SPACER (4)
79 SL-6030642-TN SCREWM3L=6 (4)
80 402-15876 VCS_FRAME (1)
81 400-71351 COVER_GLASS (1)
82 401-83361 MIRROR_BOX_RS1 (1)
83 SL-4030691-SC SCREWM3L=6 (6)
84 400-71350 HALF_MIRROR_S (1)
85 118-04606 RUBBERPLUG (8)
86 400-71349 COAXIAL_DIFFUSER_S (1)
87 SL-6063592-TN SCREWM6L=35 (2)
88 HX-0070600-0A MOUNTBASE (4)
89 EA-9500B01-00 CABLEBAND (6)
90 BT-0400251-EA URETHANETUBEBLUE4X2.5 (2.4)
91 402-05095 STOPPER_RUBBER (2)
92 402-15596 LIGHT_CONTROL_PCB_BR_ASSY_XL (1)
93 402-15100 LIGHT_CTRL_PCB_BR (1)
94 401-32991 LIGHTCONTROLPCBASM (1)
95 SL-4030681-SC SCREWM3L=6 (4)
96 HX-0055700-00 TIEMOUNT (2)
97 SM-4061201-SC SCREWM6L=12 (2)
98 SL-6051492-TN SCREWM5L=14 (4)
99 EA-9500B01-00 CABLEBAND (10)
100 EA-9500B02-00 CABLEBAND150 (15)
101 HX-0015000-0A CABLECLAMP 1
102 SL-6030692-TN SCREWM3L=6 1
103 HX-0034400-00 FIXEDBASE 2
104 SL-6030592-TN SCREWM3L=5 2
105 EA-9500B01-00 CABLEBAND 5
