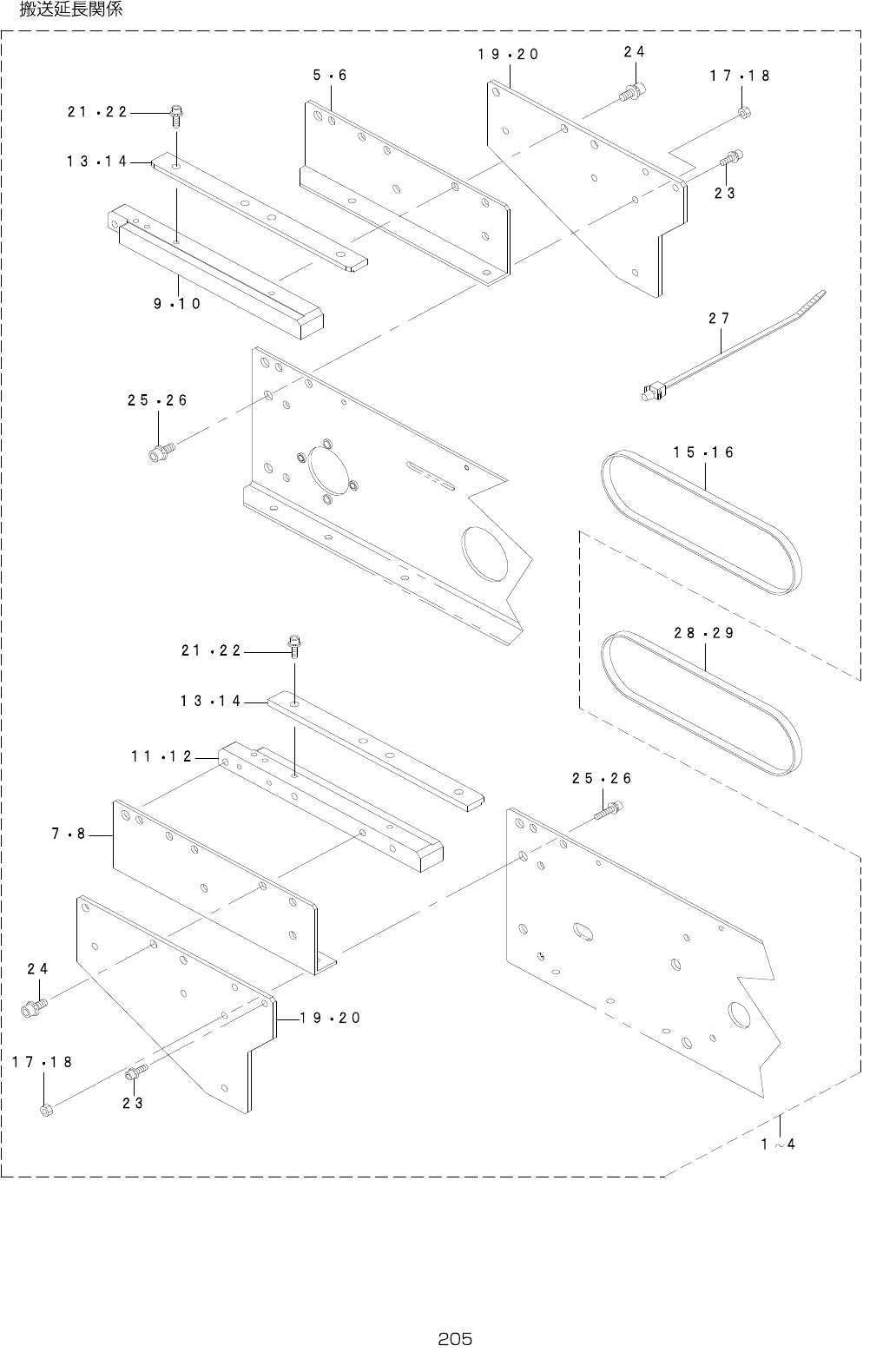

103.CONVEYOREXTENTIONCOMPONENTS
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-87786 CONVEYOR_EX_150L_ASM 1
2
#02
401-87788 CONVEYOR_EX_250L_ASM 1
3
#03
401-87787 CONVEYOR_EX_150R_ASM 1
4
#04
401-87789 CONVEYOR_EX_250R_ASM 1
5
#05
400-11053 RAILPLATEF(150) (1)
6
#06
400-11060 RAILPLATEF(250) (1)
7
#05
400-11054 RAILPLATER(150) (1)
8
#06
400-11061 RAILPLATER(250) (1)
9
#05
400-11055 RAILF(150) (1)
10
#06
400-11062 RAILF(250) (1)
11
#05
400-11056 RAILR(150) (1)
12
#06
400-11063 RAILR(250) (1)
13
#05
400-11057 PWBGUIDEEX(150) (2)
14
#06
400-11064 PWBGUIDEEX(250) (2)
15
#07
401-86617 CONVEYOR_BELT_S_150 (2)
16
#08
401-86618 CONVEYOR_BELT_S_250 (2)
17
#05
NM-6040002-SN NUTM4 (8)
18
#06
NM-6040002-SN NUTM4 (12)
19
#05
400-11072 JOINTPLATEF(150) (2)
20
#06
401-40931 JOINT_PLATE_250 (2)
21
#05
SL-6031092-TN SCREWM3L=10 (6)
22
#06
SL-6031092-TN SCREWM3L=10 (8)
23 SL-6031092-TN SCREWM3L=10 (4)
24 SL-6041292-TN SCREWM4L=12 (6)
25
#05
SL-6041092-TN SCREWM4L=10 (8)
26
#06
SL-6041092-TN SCREWM4L=10 (12)
27 HX-0044000-00 CABLEBAND (5)
28
#09
401-88359 CONVEYOR_BELT_S_150_ESD 2
29
#09
401-88360 CONVEYOR_BELT_S_250_ESD 2
- -
