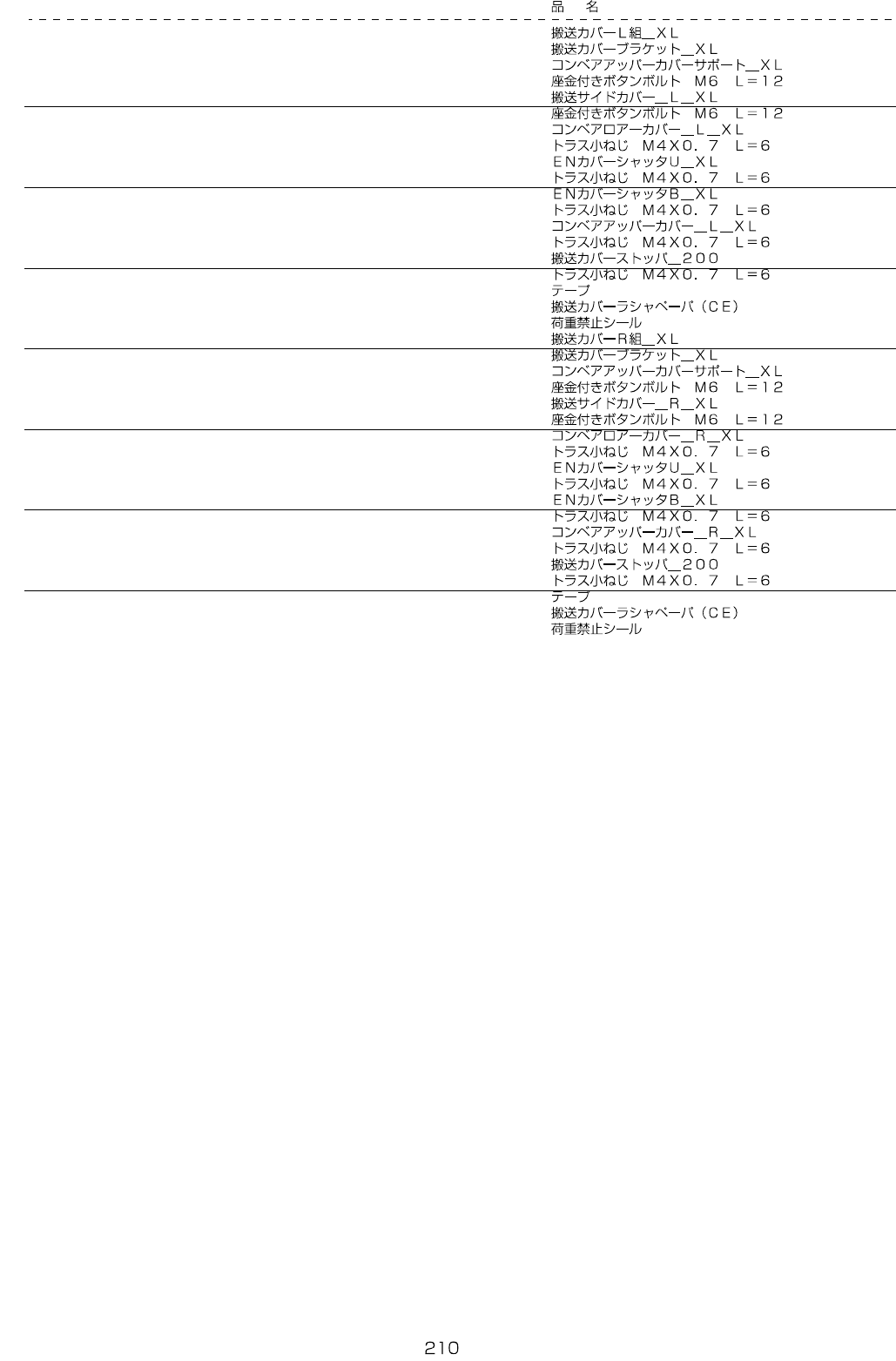

105.CONVEYORCOVERCOMPONENTS(2)(TYPEXL)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-15559 CONVEYOR_COVER_L_ASM_XL 1
2 402-15125 CONV_COVER_BR_XL (1)
3 402-15132 CONV_UPPER_COVER_SUPPORT_XL (1)
4 SL-3061232-TN SCREWM6L=12 (4)
5 402-15126 CONV_SIDE_COVER_L_XL (1)
6 SL-3061232-TN SCREWM6L=12 (4)
7 402-15128 CONV_LOWER_COVER_L_XL (1)
8 SM-0040601-SC SCREWM4X0.7L=6 (6)
9 400-92186 EN_COVER_SHUTTER_U_XL (1)
10 SM-0040601-SC SCREWM4X0.7L=6 (4)
11 400-92187 EN_COVER_SHUTTER_B_XL (1)
12 SM-0040601-SC SCREWM4X0.7L=6 (4)
13 402-15130 CONV_UPPER_COVER_L_XL (1)
14 SM-0040601-SC SCREWM4X0.7L=6 (2)
15 401-47192 CONVEYOR_COVER_STOPPER_200 (1)
16 SM-0040601-SC SCREWM4X0.7L=6 (2)
17 400-01490 TAPE (1.5)
18 E1143-721-000 WOOLENCLOTHPAPER (2)
19 E5721-729-000 LABEL (1)
20 402-15560 CONVEYOR_COVER_R_ASM_XL 1
21 402-15125 CONV_COVER_BR_XL (1)
22 402-15132 CONV_UPPER_COVER_SUPPORT_XL (1)
23 SL-3061232-TN SCREWM6L=12 (4)
24 402-15127 CONV_SIDE_COVER_R_XL (1)
25 SL-3061232-TN SCREWM6L=12 (4)
26 402-15129 CONV_LOWER_COVER_R_XL (1)
27 SM-0040601-SC SCREWM4X0.7L=6 (6)
28 400-92186 EN_COVER_SHUTTER_U_XL (1)
29 SM-0040601-SC SCREWM4X0.7L=6 (4)
30 400-92187 EN_COVER_SHUTTER_B_XL (1)
31 SM-0040601-SC SCREWM4X0.7L=6 (4)
32 402-15131 CONV_UPPER_COVER_R_XL (1)
33 SM-0040601-SC SCREWM4X0.7L=6 (2)
34 401-47192 CONVEYOR_COVER_STOPPER_200 (1)
35 SM-0040601-SC SCREWM4X0.7L=6 (2)
36 400-01490 TAPE (1.5)
37 E1143-721-000 WOOLENCLOTHPAPER (2)
38 E5721-729-000 LABEL (1)
- -

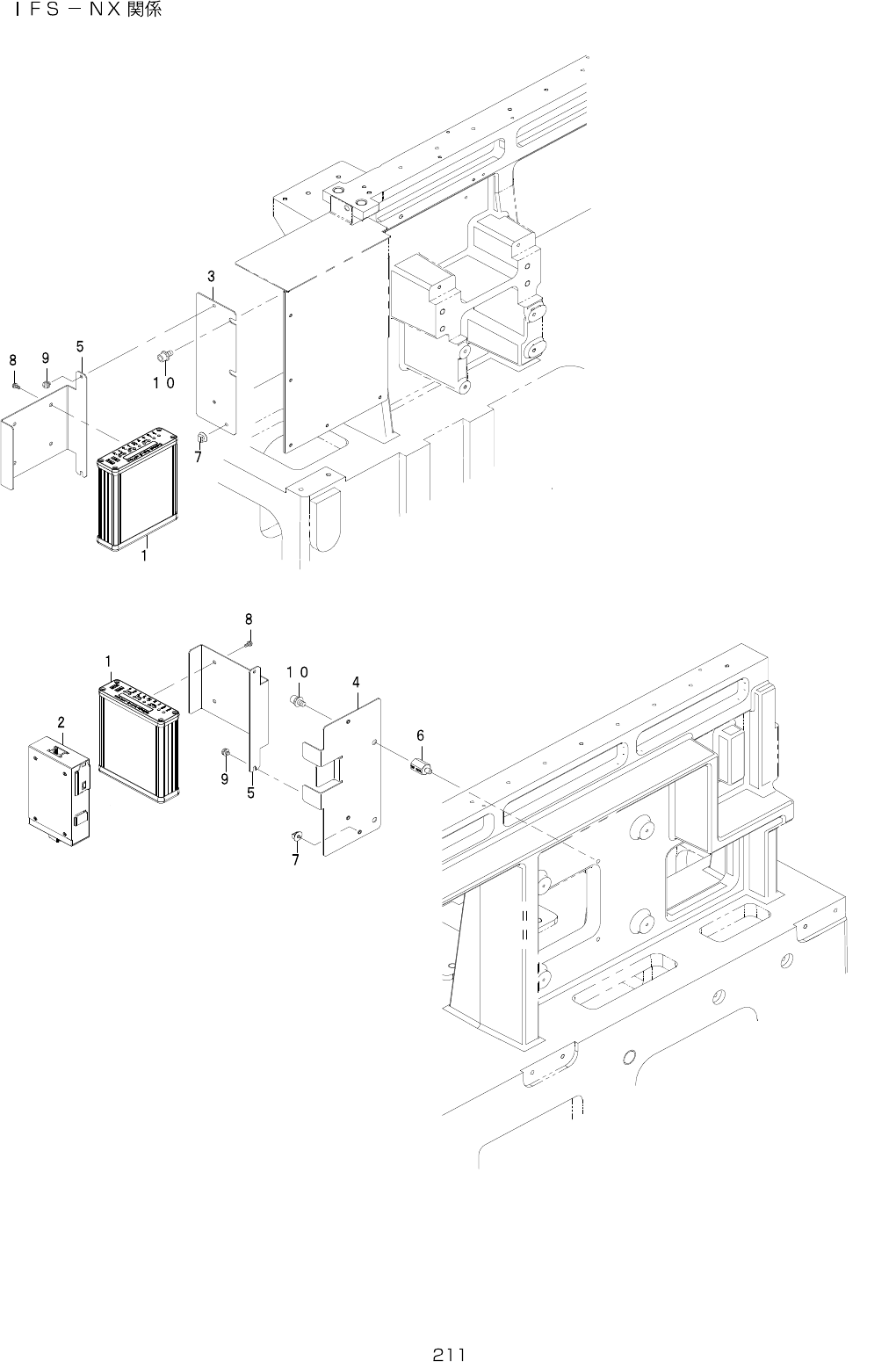

106.IFS-NXCOMPONENTS
