- - 114.SYSTEMDIAGRAM(1 )

- -

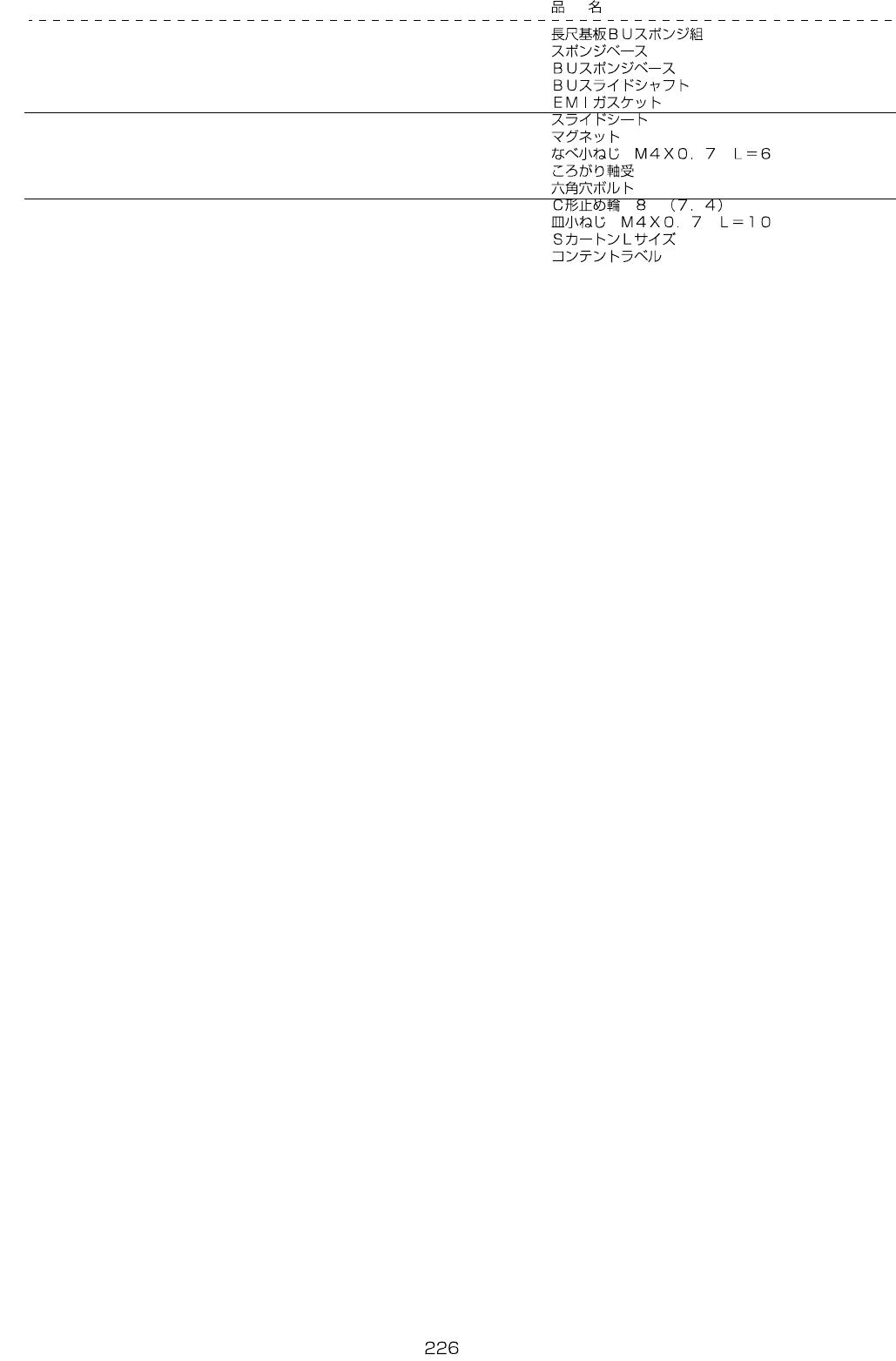

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-11593 LONG_BOARD_BU_SPONGE_ASM 1

2 402-11619 SPONGE_BASE (1)

3 402-11621 BU_SPONGE_BASE (1)

4 402-14192 BU_SLIDE_SHAFT (2)

5 401-96546 EMIGASKET (1)

6 401-28507 SLIDE_SHEET (1)

7 401-34189 MAGNET (4)

8 SM-4040601-SC SCREWM4X0.7L=6 (4)

9 SB-8080001-00 BEARING (2)

10 SM-6030802-TN SCREW (4)

11 RC-0740811-KP C-RING8(7.4) (2)

12 SM-1041001-SC SCREWM4X0.7L=10 (2)

13 400-99436 S_CARTON_L_SIZE (1)

14 E6953-861-B00 CONTENTLABEL (1)

- -

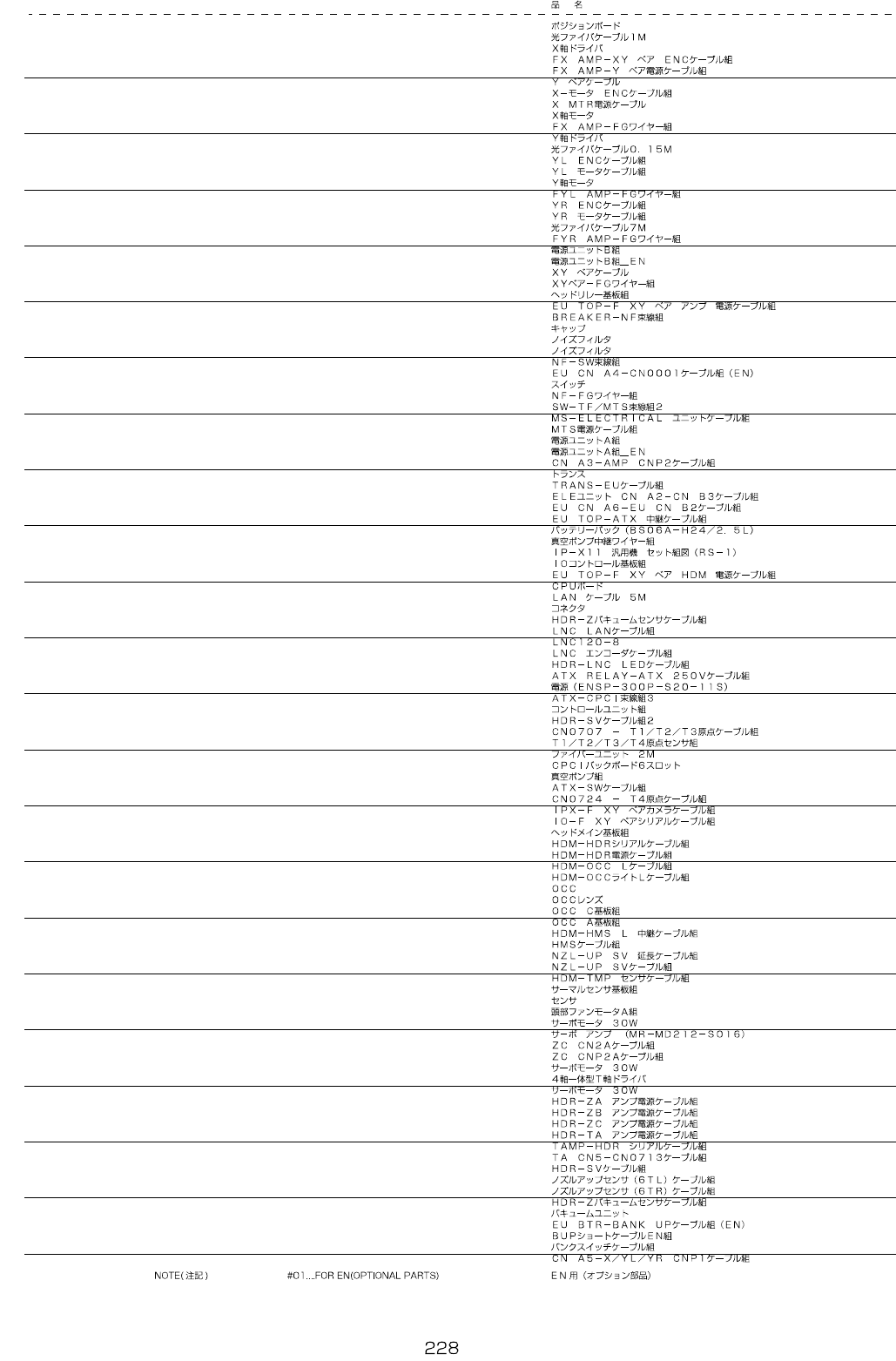

114.SYSTEMDIAGRAM(1)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-29648 POSITIONBOARD 1

2 401-29627 OPTICALFIBERCABLE1M 1

3 401-29652 XAXISDRIVER 1

4 401-82237 FXAMP-XYBEARENCCABLEASM 1

5 401-82234 FXAMP-YBEARPWRCABLEASM 1

6 401-82273 YBEARCABLE 1

7 401-29148 X-MOTORENCCABLEASM 1

8 400-44546 XMTRPWRCABLE 1

9 401-29653 XAXISMOTOR 1

10 401-82256 FXAMP-FGWIREASM 1

11 401-29654 YAXISDRIVER 1

12 401-29628 OPTICALFIBERCABLE0.15M 1

13 400-45401 YLENCCABLEASM 1

14 401-82269 YLMOTORCABLEASM 1

15 401-46348 YAXISSERVOMOTOR 1

16 401-82257 FYLAMP-FGWIREASM 1

17 400-45403 YRENCCABLEASM 1

18 401-82270 YRMOTORCABLEASM 1

19 400-48070 OPTICALFIBERCABLE7M 1

20 401-82258 FYRAMP-FGWIREASM 1

21 401-83536 POWERSUPPLYUNITBASM 1

#01

401-87824 POWERSUPPLYUNITBASM_EN 1

23 401-82272 XYBEARCABLE 1

24 401-33060 XYBEARAMPPWR-FGWIREASM 1

25 401-28874 HEADRELAYPCBASM 1

26 401-82243 EUTOP-FXYBEARAMPPWRCABLEASM 1

27 401-86992 BREAKER-NFWIREASM 1

#01

HK-0429900-7A CAP 1

29 401-91282 NOISEFILTER 1

#01

401-91283 NOISEFILTER 1

31 401-86994 NF-SWWIREASM 1

#01

401-88159 EUCNA4-CN0001CABLEASM(EN) 1

33 401-88712 SWITCH 1

34 401-28954 NF-FGWIREASM 1

35 401-86995 SW-TF/MTSWIREASM2 1

36 401-82231 MS-ELECTRICALUNITCABLEASM 1

37 401-83500 MTSPWRCABLEASM 1

38 401-83535 POWERSUPPLYUNITAASM 1

#01

401-87823 POWERSUPPLYUNITAASM_EN 1

40 401-82230 CNA3-AMPCNP2CABLEASM 1

41 401-91280 TRANSFORMER

42 401-83414 TRANS-EUCABLEASM 1

43 401-82214 ELEUNITCNA2-CNB3CABLEASM 1

44 401-82232 EUCNA6-EUCNB2CABLEASM 1

45 401-82255 EUTOP-ATXRELAYCABLEASM 1

46 EZ-1756647-11 BATTERYPACK(BS06A-H24/2.5L) 1

47 401-82264 VACUUMPUMPRELAYWIREASM 1

48 401-90921 IP-X11SETGENASM(RS-1) 1

49 401-28871 IOCONTROLPCBASM 1

50 401-82240 EUTOP-FXYBEARHDMPWRCABLEASM 1

51 401-23242 CPUBOARD 1

52 401-36338 LANCABLE5M 1

53 HK-0849200-80 CONNECTOR 1

54 401-89336 HDR-ZVACSENSORCABLEASM 1

55 401-82216 LNCLANCABLEASM 1

56 401-82791 LNC120-8 1

57 401-82217 LNCENCODERCABLEASM 1

58 401-82218 HDR-LNCLEDCABLEASM 1

59 401-86497 ATXRELAY-ATX250VCABLEASM 1

60 EZ-1468979-11 POWER(ENSP-300P-S20-11S) 1

61 401-72724 ATX-CPCIWIREASM3 1

62 401-83537 CTRL_UNIT_ASM 1

63 401-82220 HDR-SVCABLEASM2 1

64 401-82558 CN0707-T1/T2/T3ORIGINCABLEASM 1

65 401-82560 T1/T2/T3/T4ORIGINSENSORASM 1

66 401-83385 FIBERUNIT2M 1

67 401-72512 CPCIBACKBOARD6SLOT 1

68 401-29244 VACUUMPUMPASM 1

69 401-82233 ATX-SWCABLEASM 1

70 401-82559 CN0724-T4ORIGINCABLEASM 1

71 401-82238 IPX-FXYBEARCAMERACABLEASM 1

72 401-82239 IO-FXYBEARSERIALCABLEASM 1

73 401-28873 HEADMAINPCBASM 1

74 401-82241 HDM-HDRSERIALCABLEASM 1

75 401-29105 HDM-HDRPWRCABLEASM 1

76 401-29102 HDM-OCCLCABLEASM 1

77 401-29273 HDM-OCCLIGHTLCABLEASM 1

78 401-29639 OCC 1

79 401-29640 OCCLENS 1

80 401-28879 OCCCPCBASM 1

81 401-28878 OCCAPCBASM 1

82 401-29106 HDM-HMSLRELAYCABLEASM 1

83 401-29108 HMSCABLEASM 1

84 401-85429 NZL-UPSVEXTENSIONCABLEASM 1

85 401-83349 NZL-UPSVCABLEASM 1

86 401-86318 HDM-TMPSENSORCABLEASM 1

87 401-28883 THERMALSENSORPCBASM 1

88 HD-0030600-00 SENSOR 1

89 401-19461 HEADFANMOTORAASSY 1

90 401-36334 SERVOMOTOR30W 1

91 EZ-1492148-11 AMPLIFIERSERVO 1

92 401-82565 ZCCN2ACABLEASM 1

93 401-82563 ZCCNP2ACABLEASM 1

94 401-87431 SERVOMOTOR30W 1

95 401-29650 4AXISINTEGRALTYPETAXISDRIVER 1

96 401-36335 SERVOMOTOR30W 1

97 401-82252 HDR-ZAAMPPWRCABLEASM 1

98 401-82253 HDR-ZBAMPPWRCABLEASM 1

99 401-82254 HDR-ZCAMPPWRCABLEASM 1

100 401-82222 HDR-TAAMPPWRCABLEASM 1

101 401-82250 TAMP-HDRSERIALCABLEASM 1

102 401-82215 TACN5-CN0713CABLEASM 1

103 401-82251 HDR-SVCABLEASM 1

104 401-33002 NZLUPSENSOR6TLCABLEASM 1

105 401-33003 NZLUPSENSOR6TRCABLEASM 1

106 401-89336 HDR-ZVACSENSORCABLEASM 1

107 401-82489 VACUUM_UNIT 1

108

#01

401-88158 EUBTM-BANKUPCABLEASM(EN) 1

109

#01

400-02344 BUPSHORTWIRE(EN)ASM 1

110

#01

400-02287 BANKSWCABLEASSY 1

111 401-82229 CNA5-X/YL/YRCNP1CABLEASM 1
