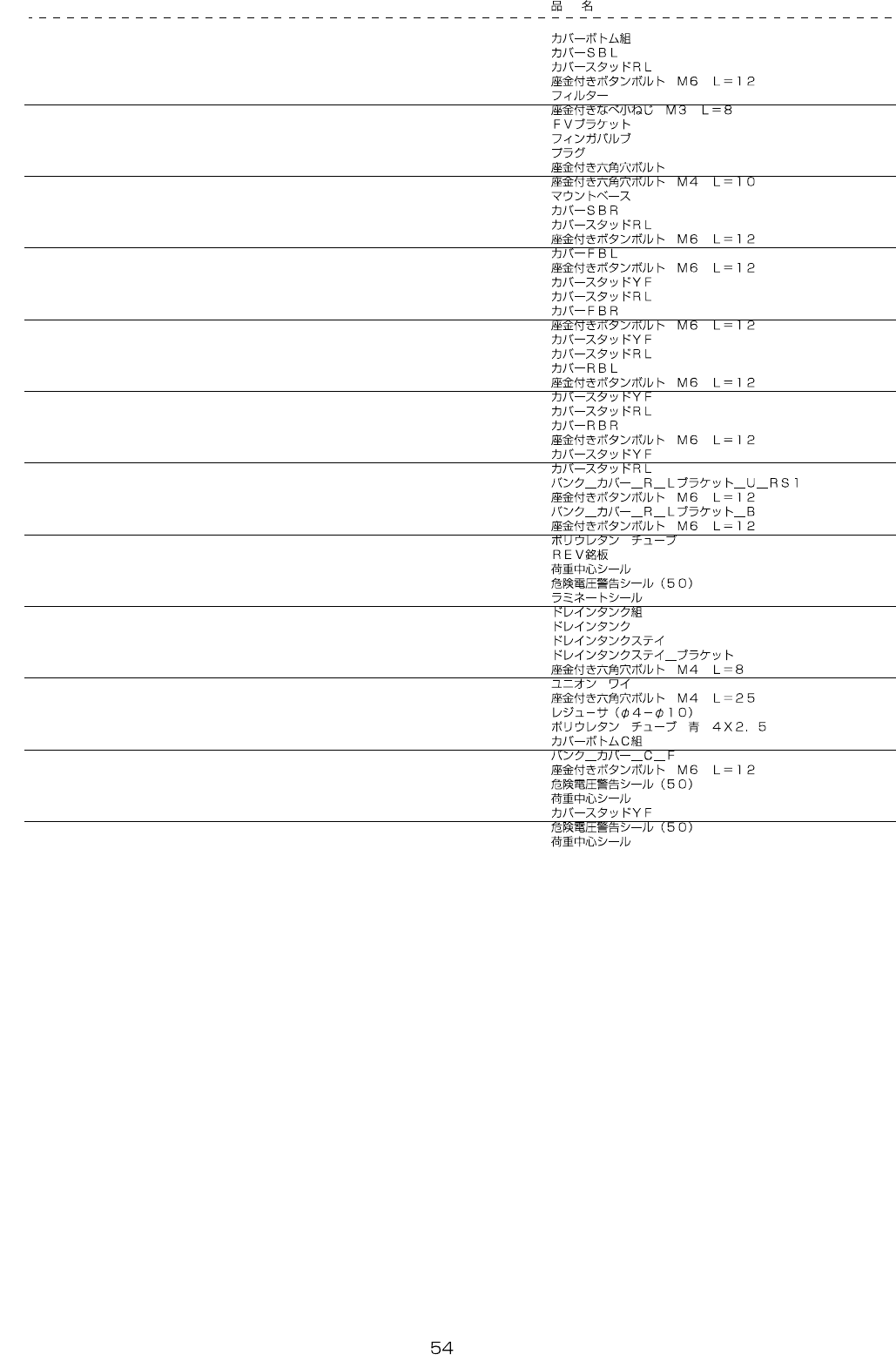

- - 28. COVERCOMPONEN TS(10)(RS-1R)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83530 COVER_BOTTOM_ASM 1

2 401-47105 COVER_SBL (1)

3 400-01510 COVERSTUDRL (6)

4 SL-3061232-TN SCREWM6L=12 (6)

5 HM-0010100-10 FILTER (2)

6 SL-4030891-SC SCREWM3L=8 (4)

7 400-00550 FVBRACKET (1)

8 PV-0152120-00 FINGERVALVE (1)

9 PJ-0252000-03 PLUG (1)

10 SL-6032542-TN SCREW (2)

11 SL-6041092-TN SCREWM4L=10 (2)

12 HX-0070600-0A MOUNTBASE (2)

13 401-47107 COVER_SBR (1)

14 400-01510 COVERSTUDRL (5)

15 SL-3061232-TN SCREWM6L=12 (5)

16 401-47082 COVER_FBL (1)

17 SL-3061232-TN SCREWM6L=12 (4)

18 400-01512 COVERSTUDYF (2)

19 400-01510 COVERSTUDRL (2)

20 401-47083 COVER_FBR (1)

21 SL-3061232-TN SCREWM6L=12 (4)

22 400-01512 COVERSTUDYF (2)

23 400-01510 COVERSTUDRL (2)

24 401-87352 COVER_RBL (1)

25 SL-3061232-TN SCREWM6L=12 (4)

26 400-01512 COVERSTUDYF (2)

27 400-01510 COVERSTUDRL (2)

28 401-87353 COVER_RBR (1)

29 SL-3061232-TN SCREWM6L=12 (4)

30 400-01512 COVERSTUDYF (2)

31 400-01510 COVERSTUDRL (2)

32 401-86406 BANK_COVER_R_L_BR_U_RS1 (1)

33 SL-3061232-TN SCREWM6L=12 (4)

34 401-83000 BANK_COVER_R_L_BR_B (1)

35 SL-3061232-TN SCREWM6L=12 (2)

36 BT-1000651-EB POLYURETHANETUBE (1.7)

37 E9635-455-000 REVISIONSEAL (1)

38 168-70206 GRAVITYSEAL (2)

39 CM-3001000-04 DANGERLABEL(50) (3)

40 401-81150 LAMINATING_SEAL (1)

41 400-93785 ASM_DRAIN_TANK (1)

42 400-16815 DRAINTANK (1)

43 400-16814 DRAINTANKSTAY (1)

44 400-93721 DT_STAY_BR (1)

45 SL-6040892-TN SCREWM4L=8 (4)

46 PJ-3081000-01 UNIONY (1)

47 SL-6042592-TN SCREWM4L=25 (1)

48 PJ-3090400-03 REDUCER4-10 (1)

49 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.16)

50 401-84581 COVER_BOTTOM_C_ASM (1)

51 401-47215 BANK_COVER_C_F (2)

52 SL-3061232-TN SCREWM6L=12 (8)

53 CM-3001000-04 DANGERLABEL(50) (1)

54 168-70206 GRAVITYSEAL (1)

55 400-01512 COVERSTUDYF (4)

56 CM-3001000-04 DANGERLABEL(50) (1)

57 168-70206 GRAVITYSEAL (1)

- -

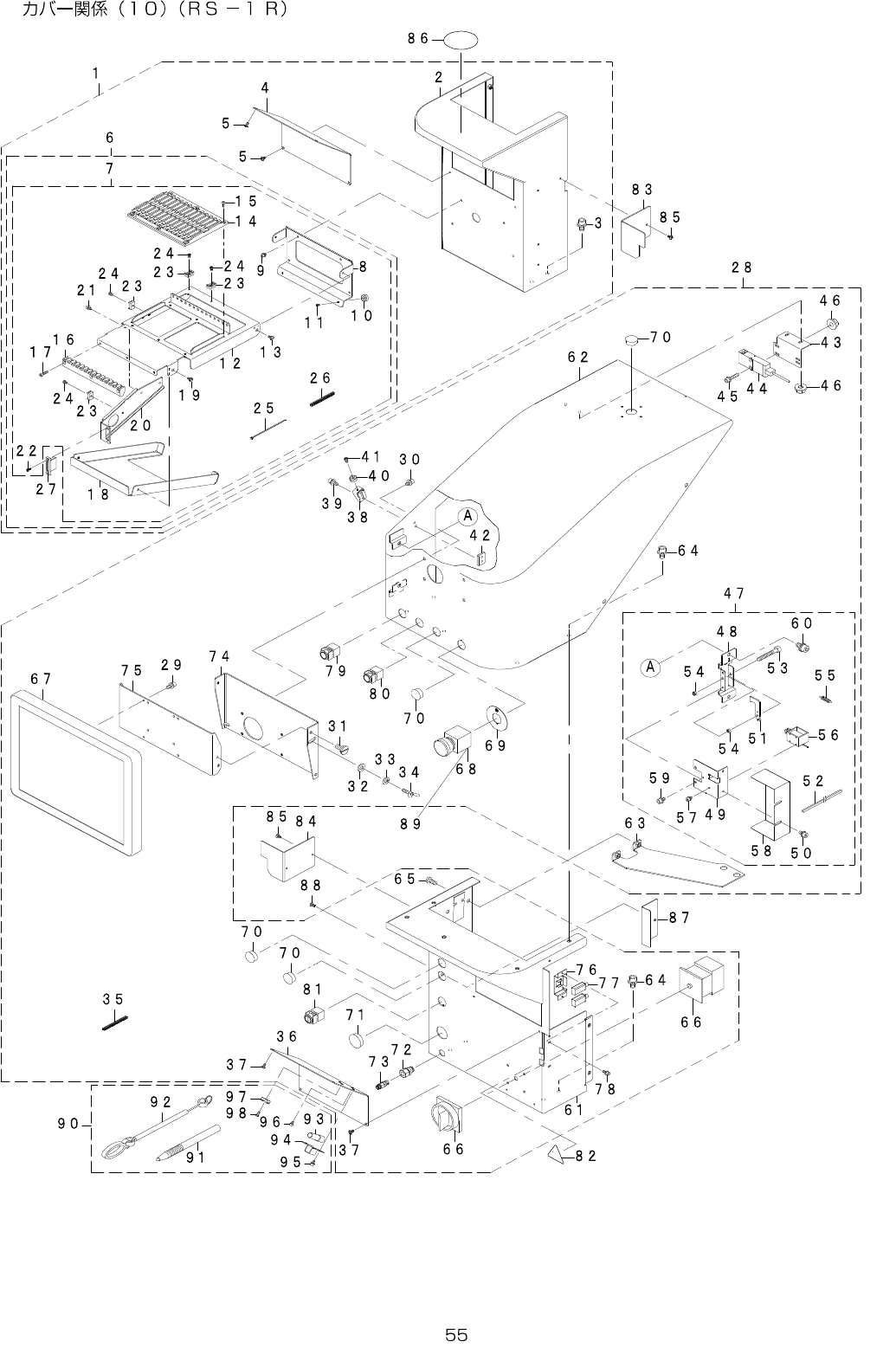

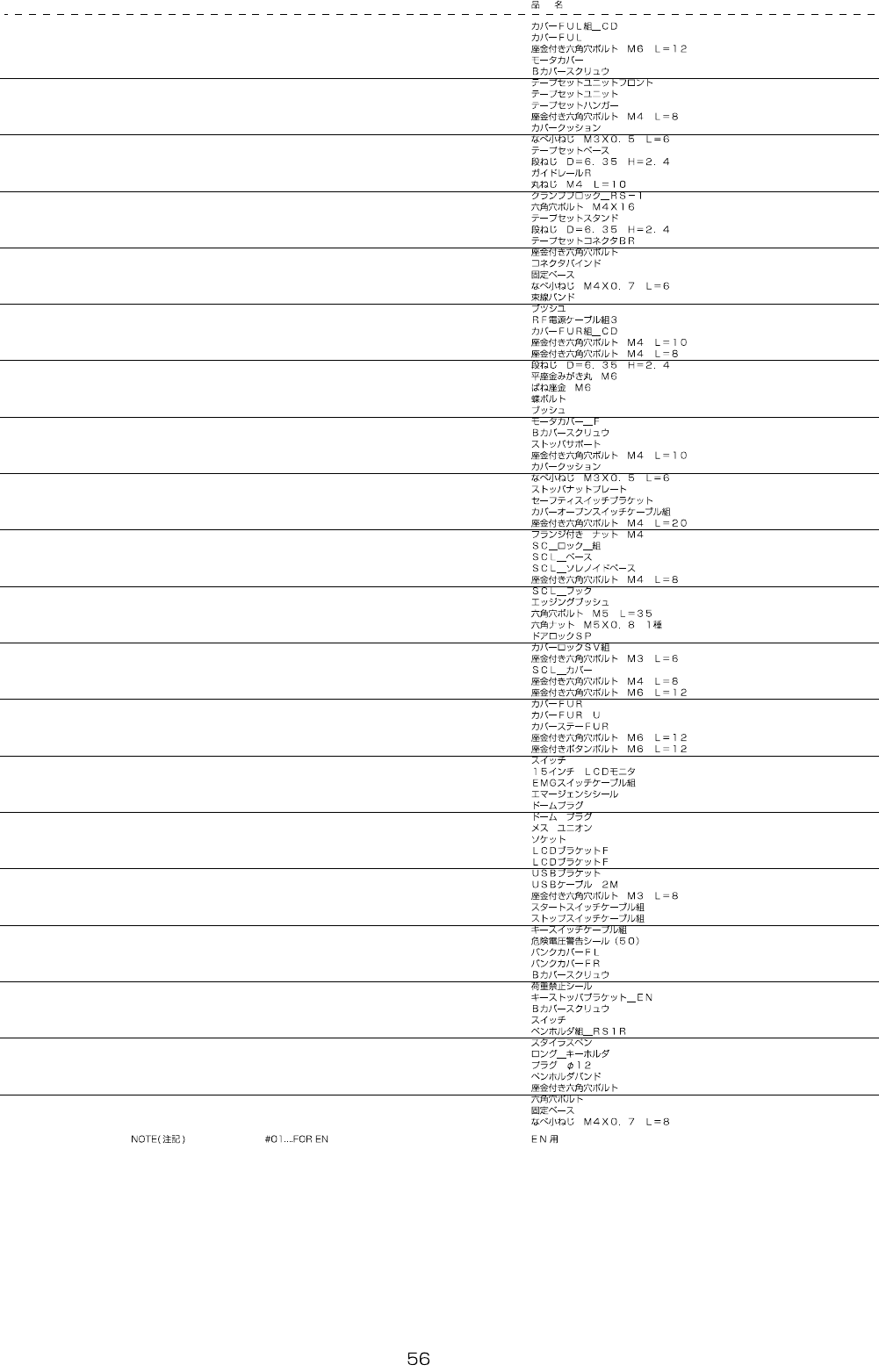

28.COVERCOMPONENTS(10)(RS-1R)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-96670 COVER_FUL_ASM_CD 1

2 401-96677 COVER_FUL (1)

3 SL-6061292-TN SCREWM6L=12 (4)

4 401-83443 MOTOR_COVER (1)

5 400-81751 B_COVER_SCREW (4)

6 401-99986 TAPE_SET_UNIT_FRONT (1)

7 401-97768 TAPE_SET_UNIT (1)

8 401-97769 TAPE_SET_HANGER (1)

9 SL-6040892-TN SCREWM4L=8 (4)

10 400-49671 COVERCUSHION (2)

11 SM-4030601-SC SCREWM3X0.5L=6 (2)

12 401-97770 TAPE_SET_BASE (1)

13 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)

14 401-83208 GUIDE_RAIL_R (1)

15 SM-3041052-TN SCREWM4L=10 (6)

16 402-42076 CLAMP_BLOCK_RS1 (1)

17 SM-6041602-TN SCREWM4X16 (3)

18 401-97771 TAPE_SET_STAND (1)

19 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)

20 401-97772 TAPE_SET_CONNECTOR_BR (1)

21 SL-6040892-TN BOLT (2)

22 401-82051 CONNECTOR_BIND (2)

23 HX-0029400-00 FIXEDBASE (4)

24 SM-4040601-SC SCREWM4X0.7L=6 (4)

25 EA-9500B01-00 CABLEBAND (4)

26 E5348-033-100 GROMMET (0.2)

27 401-98674 RFPWRCABLEASM3 (1)

28 401-96668 COVER_FUR_ASM_CD 1

29 SL-6041092-TN SCREWM4L=10 (4)

30 SL-6040892-TN SCREWM4L=8 (4)

31 SD-0640246-SP SHOULDERSCREWD=6.35H=2.4 (2)

32 WP-0641601-SC WASHERM6 (1)

33 WS-0610002-KN SPRINGWASHERM6 (1)

34 161-87007 WINGBOLT (1)

35 E5348-033-100 GROMMET (0.156)

36 402-23086 MOTOR_COVER_F (1)

37 400-81751 B_COVER_SCREW (4)

38 400-01464 STOPPERSUPPORT (1)

39 SL-6041092-TN SCREWM4L=10 (2)

40 400-49671 COVERCUSHION (1)

41 SM-4030601-SC SCREWM3X0.5L=6

(1)

42 401-47221 STOPPER_NUT_PLATE (1)

43 400-01453 SAFETYSWITCHBRACKET (1)

44 400-02254 COVEROPENSWCABLEASM (1)

45 SL-6042042-TN SCREWM4L=20 (2)

46 NM-3040520-SF FLANGENUTM4 (4)

47 401-47273 SC_LOCK_ASM (1)

48 401-11821 SCL_BASE (1)

49 401-47117 SCL_SOLENOID_BASE (1)

50 SL-6040892-TN SCREWM4L=8 (2)

51 401-47118 SCL_HOOK (1)

52 HX-0036700-0A GROMMET (0.015)

53 SM-6053502-TN SCREWM5L=35 (1)

54 NM-6050001-SC NUTM5X0.8TYPE1 (2)

55 401-47119 DOOR_LOCK_SP (1)

56 401-46405 COVERLOCKSVASM (1)

57 SL-6030692-TN SCREWM3L=6 (4)

58 401-11824 SCL_COVER (1)

59 SL-6040892-TN SCREWM4L=8 (2)

60 SL-6061292-TN SCREWM6L=12 (2)

61 401-96679 COVER_FUR (1)

62 401-96681 COVER_FUR_U (1)

63 401-83472 COVER_STAY_FUR (1)

64 SL-6061292-TN SCREWM6L=12 (9)

65 SL-3061232-TN SCREWM6L=12 (2)

66 401-88712 SWITCH (1)

67 401-58158 15INCHLCDMONITOR (1)

68 401-29025 EMGSWCABLEASM (1)

69 401-26708 EMERGENCY_SEAL (1)

70 HX-0032600-0A GROMMET (4)

71 HX-0032600-0M GROMMET (1)

72 PJ-3010651-06 FEMALEUNION (1)

73 E2904-700-000 SOCKET (1)

74 402-23088 LCD_BRACKET_F (1)

75 400-47170 LCD_BRACKET_F (1)

76 400-46640 USBBRACKET (1)

77 401-22816 USBCABLE2M (2)

78 SL-6030892-TN SCREWM3L=8 (2)

79 401-90601 STARTSWCABLEASM (1)

80 401-90602 STOPSWCABLEASM (1)

81 401-90603 KEYSWCABLEASM (1)

82 CM-3001000-04 DANGERLABEL(50) 1

83 401-86066 BANK_COVER_FL 1

84 401-86067 BANK_COVER_FR 1

85 400-81751 B_COVER_SCREW 4

86 E5721-729-000 LABEL 1
