08.2021 Top accuracy and precision Industry leading speed Fast and easy operation SMART algorithms Powerful debug-free OCR ► ► ► ► ► ALD8700S SERIES Full 3D Automatic Optical Inspection Breaking limits in AOI technology …
08.2021
Top accuracy and precision
Industry leading speed
Fast and easy operation
SMART algorithms
Powerful debug-free OCR
►
►
►
►
►

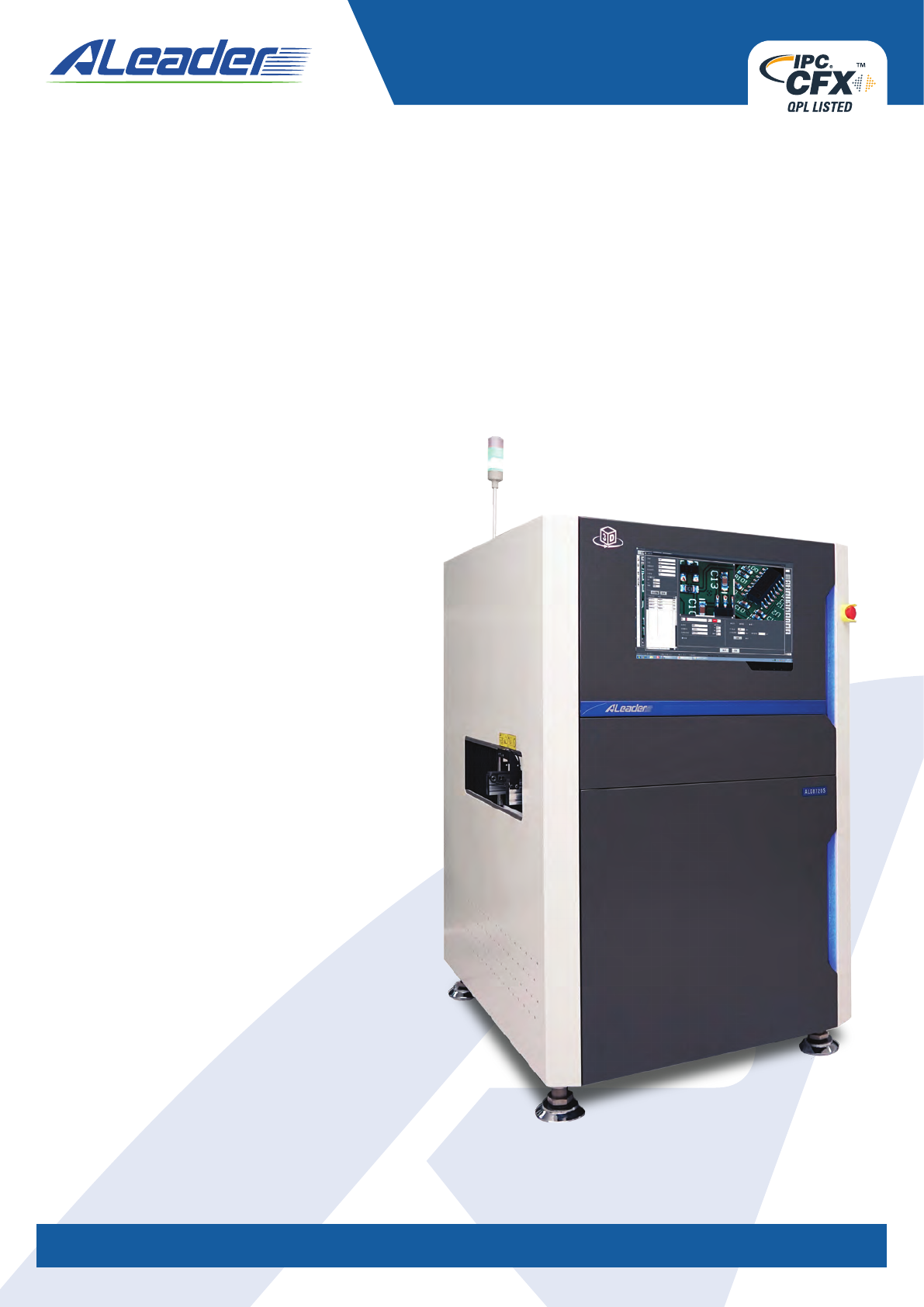

ALD8700S SERIES
Full 3D Automatic Optical Inspection
Breaking limits in AOI technology in
speed, performance and ease of use
Beyond Innovation
IPC BASED FULL 3D MEASUREMENT AOI
The Ultimate Response to Modern Production Needs
High-range, precise, shadow-free 3D height measurement of solder joints and
components coupled with simultaneous high-resolution, high-quality 2D images.
100% board coverage including the smallest parts.
Unique optical system developed by ALeader
delivers an accurate, reliable 3D measurement
without compromising 2D image quality
• 4-direction structured light (developed in-house,
advanced phase-shifting digital projection system)
• Multi-directional (360˚ horizontal, 0-90˚ vertical)
LED illumination system
• High-speed telecentric camera
Inspection pass-fail criteria complies with IPC-610 standard for shift and solder
fillet measurement
Tolerances defined according to IPC level (dependent of pad size)
Best-in-industry component marking recognition
Open Short
Pads defined by PCB Gerber Solder fillet height measurement
BGA lifted Wrong height Billboard
Beyond Innovation
Inspection result verification
Process control
Easy programming. Friendly and intuitive user interface.
Insensitivity to the Component’s and PCB Color
•
Visualized and transparent definitions, no “black box”, no “special” algorithms
•
Defect samples are not required for creating a program without escapes
•
AI based auto-programming
•
Central library with part number and package links
• Simple and fast definition of non-standard
components
• Over 90% of the program can be done offline
• One-click solution for OCV/OCR and body
color definition
• Easy setup of skipped components
• Effective debugging procedures
• Ensures the operator will not miss the defect detected by AOI
• Easy to find component location on the PCB
• Clear component top and 3D interactive image for
reliable verification
• A real board is not required for decision making
• Inspection history review
• Operator feedback
• Possibility to use one repair station for multiple AOI machines
ALeader’s AOI is capable of inspecting PCBs of any color.
No user adjustments are required during program creation and
tuning. The color of the component does not reduce the system’s
accuracy; however it serves wrong component and polarity
detection, as well as other inspections.
• Real-time SPC charts
• History review and analysis
• Cp, Cpk, GR&R
• Traceability
• Reports
