7 Repairs to SmartFeeder 8 mm X
7.12 Foil disposal flap
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 119

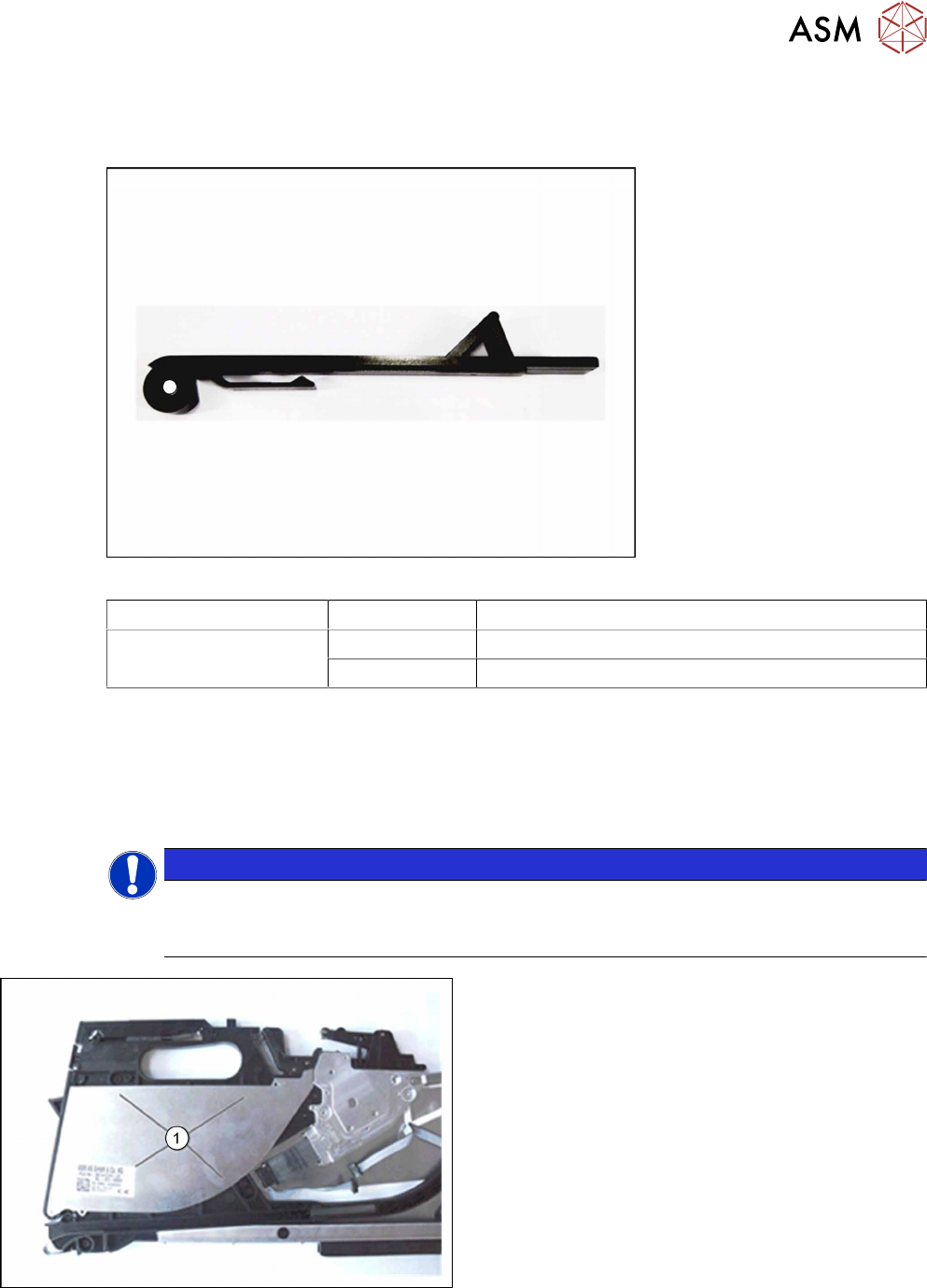

7.12 Foil disposal flap
Required spare part
Fig.36: Flap for foil stuffing unit assy. X8Smart
Feeder module Item no. Designation
SmartFeeder 8mmX 03107505-xx Flap for foil stuffing unit assy. X8Smart
03004081-xx Shaft for D2 foil flap X8
Required tools
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
7.12.1 Removing the Flap
NOTICE
Avoid confusing the foil tank panel
The foil tank panel has a barcode which uniquely identifies the feeder module. Make sure
that this sheet is not confused with another foil tank panel.
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Remove the right side cover (see 7.3.3 "Remov-
ing the right side cover" [}84])
► Carefully lift the foil tank panel(1) out of the base
of the feeder module.
7 Repairs to SmartFeeder 8 mm X
7.12 Foil disposal flap
120 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

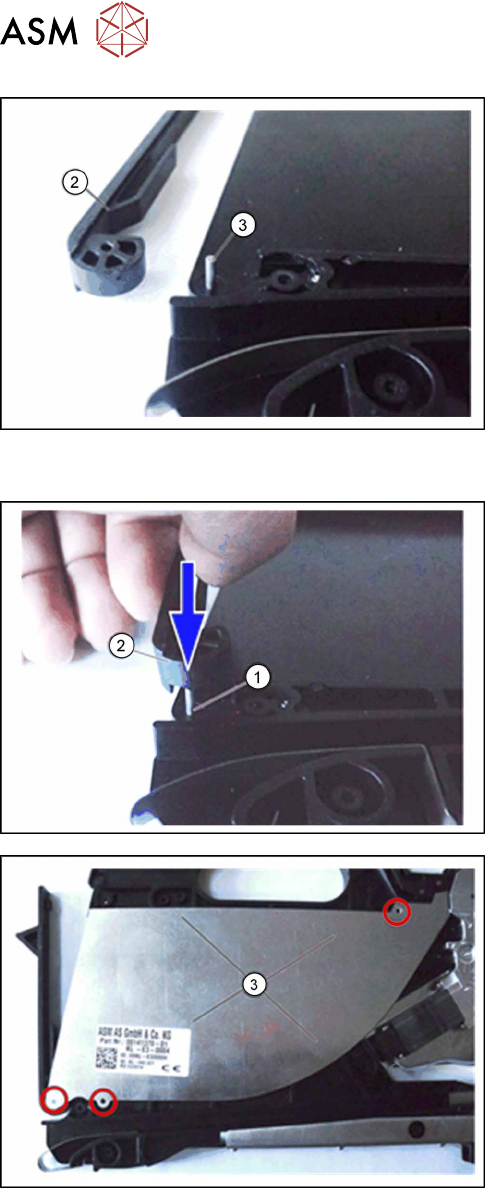

► Remove the flap(2) and the shaft(3). The shaft
is only pushed into the foil tank.
► Clean the foil tank thoroughly and remove all foil
and adhesive residues before fitting the foil tank
panel back on the foil tank.
7.12.2 Fitting the Flap
► Insert the shaft(1) into the foil tank for the feeder
module.
► Push the flap(2) onto the shaft.
► Place the foil tank panel(3) onto the foil tank, as
shown.
Make sure that the foil tank panel engages with
the nibs provided at the positions marked in red.
► Fit the right side cover (see7.3.4 "Fitting the right
side cover 8" [}85]).
7 Repairs to SmartFeeder 8 mm X
7.13 Foil disposal blade
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 121

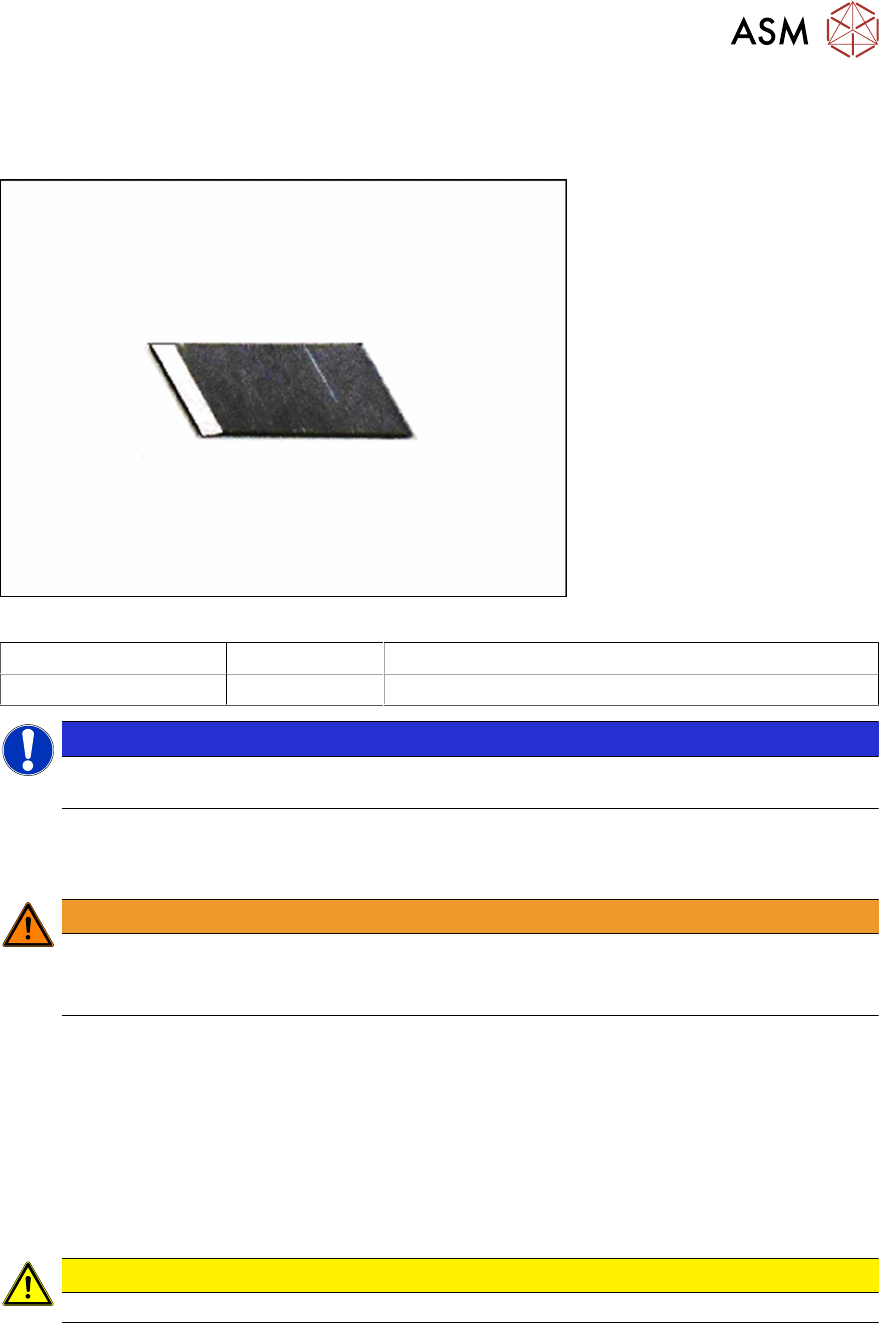

7.13 Foil disposal blade
Required spare part
Fig.37: Blade partition wall
Feeder module Item no. Designation
SmartFeeder 8mmX 00341370Sxx Blade partition wall
NOTICE
Pay attention when preparing the individual blades. Individual blades must be broken at the
cutter edge. Ensure all safety precautions are observed.
Required tools
●
TORX screwdriver 0.6Nm, size T8
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
7.13.1 Removing the Blade Partition Wall
► Place the feeder on a stable, level and clean surface.
► Open the flap.
► Loosen the screw fastening the blade and remove the old blade.
7.13.2 Fitting the Blade Partition Wall
► Place the new blade in position and tighten the screw.
CAUTION
► The blades are sharp, take necessary safety precautions.
