7 Repairs to SmartFeeder 8 mm X 7.14 Handle with control panel 122 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 7.14 Handle with control panel 7.14.1 Control Panel Assembly Required spare part Fig.38: Board a…
7 Repairs to SmartFeeder 8 mm X
7.13 Foil disposal blade
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 121
7.13 Foil disposal blade
Required spare part
Fig.37: Blade partition wall
Feeder module Item no. Designation
SmartFeeder 8mmX 00341370Sxx Blade partition wall
NOTICE
Pay attention when preparing the individual blades. Individual blades must be broken at the
cutter edge. Ensure all safety precautions are observed.
Required tools
●
TORX screwdriver 0.6Nm, size T8
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
7.13.1 Removing the Blade Partition Wall
► Place the feeder on a stable, level and clean surface.
► Open the flap.
► Loosen the screw fastening the blade and remove the old blade.
7.13.2 Fitting the Blade Partition Wall
► Place the new blade in position and tighten the screw.
CAUTION
► The blades are sharp, take necessary safety precautions.
7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
122 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
7.14 Handle with control panel
7.14.1 Control Panel Assembly
Required spare part

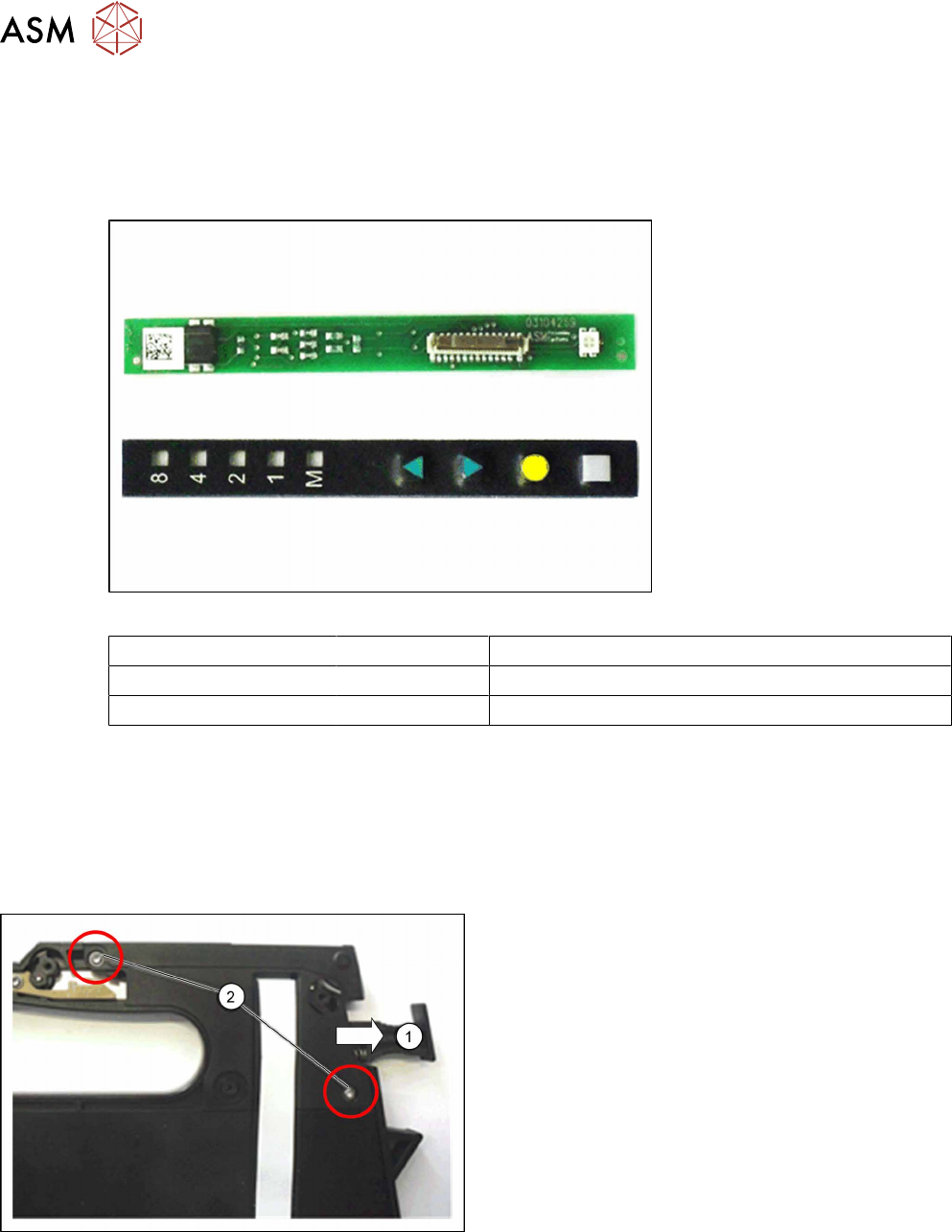

Fig.38: Board assy. control panel (top), control panel assy. (bottom)
Feeder module Item no. Designation
SmartFeeder 8mm X 03104269-xx Board assy. control panel X8Smart
SmartFeeder 8mm X 03102428 -xx Control panel assy. X8Smart
Required tools
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver size T8, 0.6Nm
●
Tweezers or small screwdriver
7.14.1.1 Removing the Control Panel and Board
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Remove the left side cover (see 7.3.1 "Removing
the Left Side Cover" [}83]).
► Loosen the lock(1) in the position "unlocked".
► Open the two marked TORX screws(2), with
which the cap on the foil stuffing unit is fixed.
7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 123
► Carefully lift the cap on the foil stuffing unit(3) a
little from the base of the feeder module. Make
sure that the flat ribbon cable is still fastened to
the control panel board.
► Pull the control panel(4) out of the guidance, to-
gether with the board(5).
► Open the bracket on the flat ribbon cable connec-
tion(6) at the board.
► Pull the flat ribbon cable(7) out of the flat ribbon
cable connection.
► Pull the flat ribbon cable out of the foil stuffing
unit cap.
7.14.1.2 Fitting the Control Panel and Board
► If this is not open, swing the bracket on the flat
ribbon connection(2) on the board upwards.
► Push the flat ribbon cable(1) through the foil
stuffing unit cap, as shown, with the blue side
pointing upwards.
► Push the flat ribbon cable(1), with the blue side
pointing upwards, further into the flat ribbon cable
connection(2), on the board.
► Make sure that the flat ribbon cable contacts lie
against the contacts on the connection.
► Swing the bracket on the flat ribbon connection
down(2).
