7 Repairs to SmartFeeder 8 mm X 7.14 Handle with control panel 124 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 ► Insert the control panel (3) with the marked pins into the marked holes (4) on the board. ► P…
7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 123
► Carefully lift the cap on the foil stuffing unit(3) a
little from the base of the feeder module. Make
sure that the flat ribbon cable is still fastened to
the control panel board.

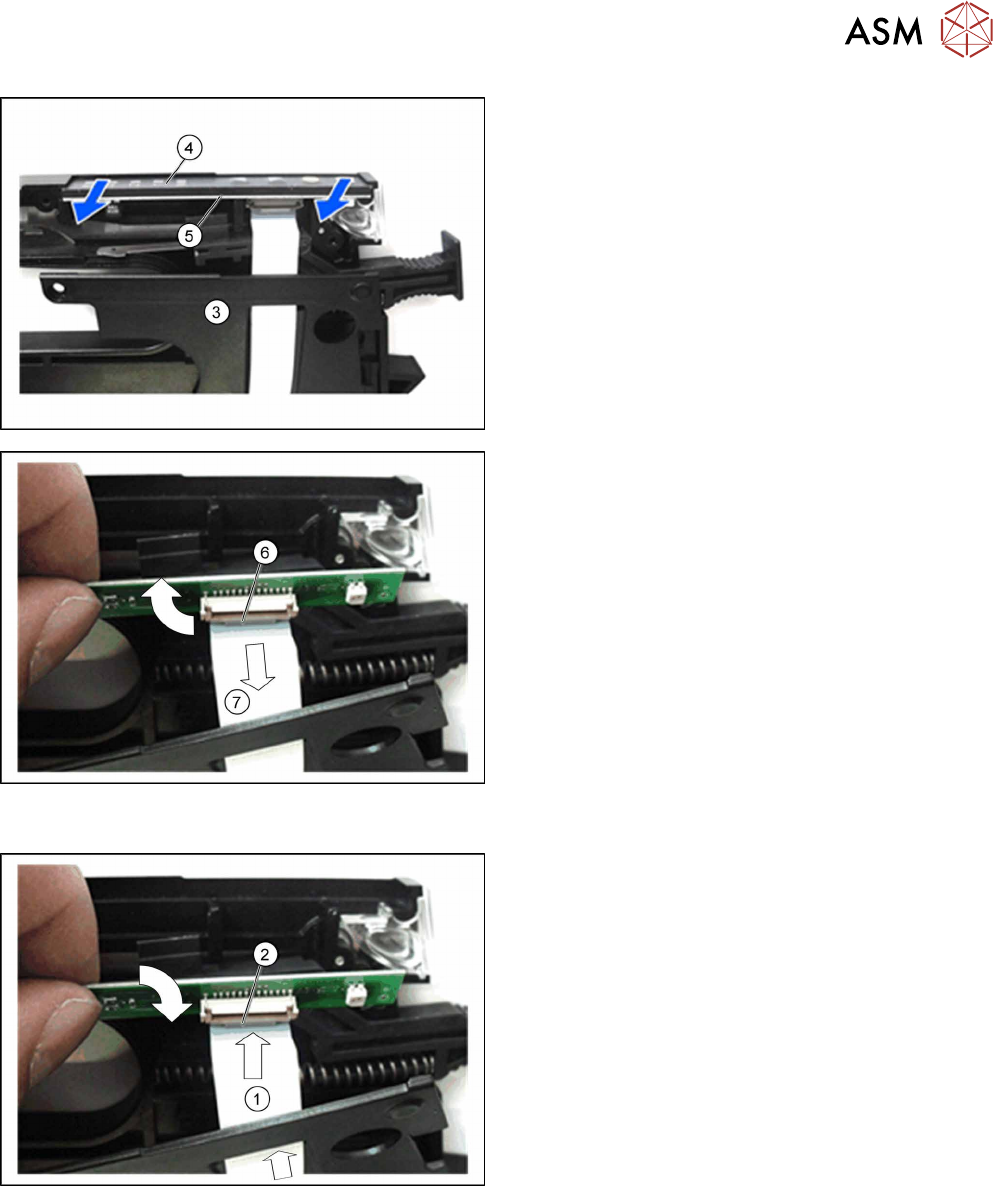

► Pull the control panel(4) out of the guidance, to-
gether with the board(5).
► Open the bracket on the flat ribbon cable connec-
tion(6) at the board.
► Pull the flat ribbon cable(7) out of the flat ribbon
cable connection.
► Pull the flat ribbon cable out of the foil stuffing
unit cap.
7.14.1.2 Fitting the Control Panel and Board
► If this is not open, swing the bracket on the flat
ribbon connection(2) on the board upwards.
► Push the flat ribbon cable(1) through the foil
stuffing unit cap, as shown, with the blue side
pointing upwards.
► Push the flat ribbon cable(1), with the blue side
pointing upwards, further into the flat ribbon cable
connection(2), on the board.
► Make sure that the flat ribbon cable contacts lie
against the contacts on the connection.
► Swing the bracket on the flat ribbon connection
down(2).
7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
124 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

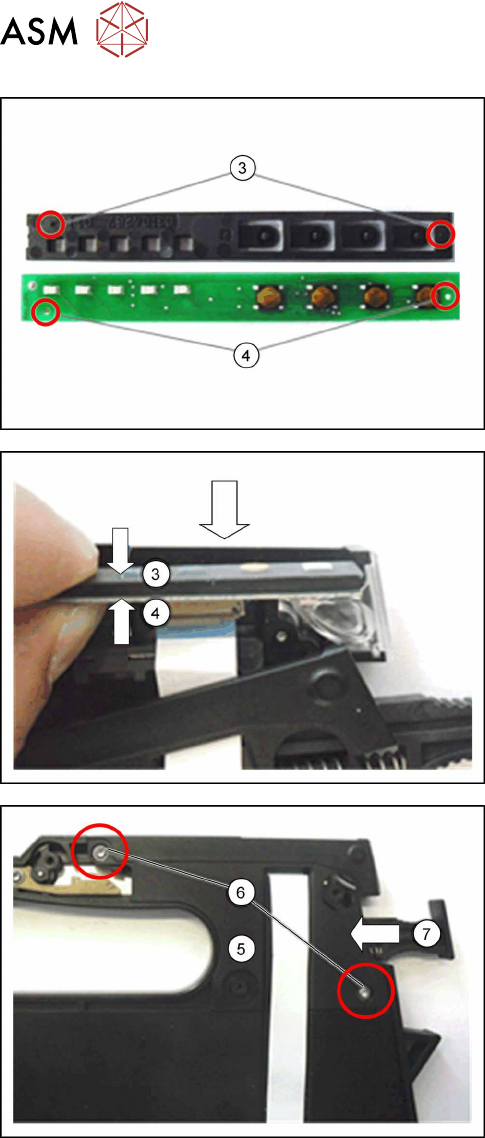

► Insert the control panel(3) with the marked pins
into the marked holes(4) on the board.
► Push the control panel(3) together with the
board(4) sideways into the feeder module guid-
ance provided.
► Make sure that the flat ribbon cable is not
pinched or pulled out of the connection on the
board.
► Carefully life the cap on the foil stuffing unit(5)
into the position shown on the feeder module
base. Make sure that the flat ribbon cable hangs
out of the cap as shown.
► Fasten the cap on the foil stuffing unit at the
marked points(6) with 2 screws. Use a size 8
TORX screwdriver and 0.6 Nm for this.
► Make sure that the lock(7) on the feeder module
moves easily and that no components are
trapped or pinched.
► Fasten the left side cover (see 7.3.2 "Fitting the
left side cover" [}83]).
7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 125
7.14.2 Other spare parts on the handle
Required spare parts
Fig.39: Spare parts for handle SmartFeeder 8 mm X
Feeder module Position Item no. Designation
SmartFeeder 8mmX 1 03108403Sxx Slide for foil stuffing unit assy. X8Smart
2 03009150Sxx Pressure spring VD-090V
3 03113828Sxx Spring hook for slide X8Smart
4 03033796-xx RF-SN75-2.5 x 6-9.8
5 03101437Sxx Window for operating panel X8Smart
6 03101508Sxx Cover for foil stuffing unit X8Smart
Required tools
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers or flat pliers
