7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 125
7.14.2 Other spare parts on the handle
Required spare parts

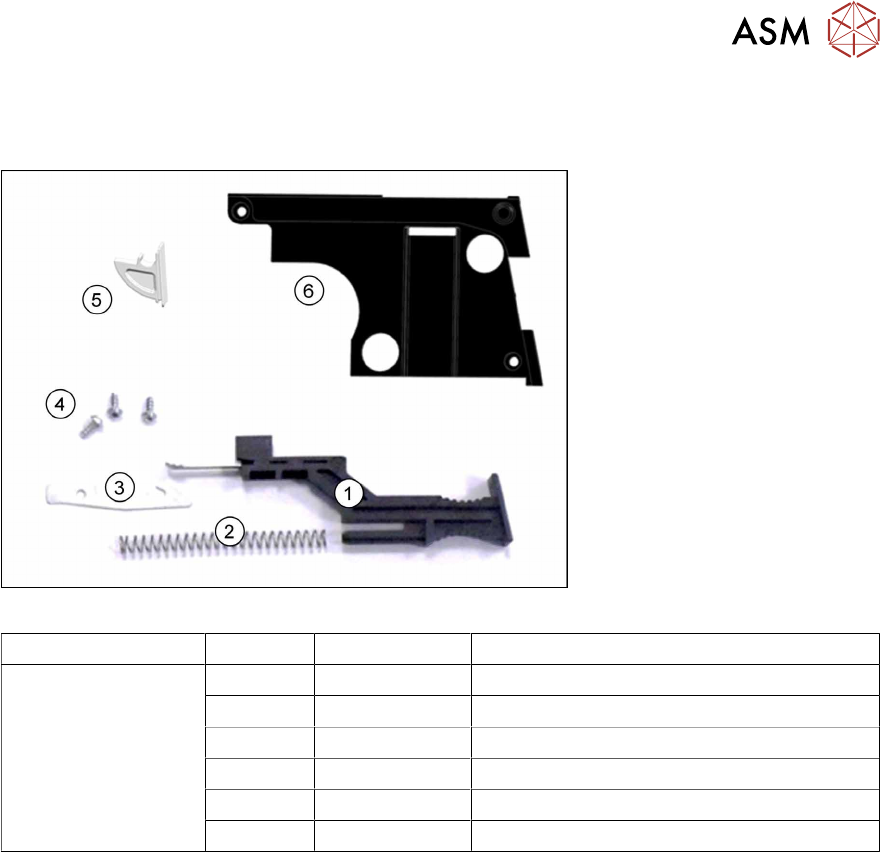

Fig.39: Spare parts for handle SmartFeeder 8 mm X
Feeder module Position Item no. Designation
SmartFeeder 8mmX 1 03108403Sxx Slide for foil stuffing unit assy. X8Smart
2 03009150Sxx Pressure spring VD-090V
3 03113828Sxx Spring hook for slide X8Smart
4 03033796-xx RF-SN75-2.5 x 6-9.8
5 03101437Sxx Window for operating panel X8Smart
6 03101508Sxx Cover for foil stuffing unit X8Smart
Required tools
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers or flat pliers
7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
126 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
7.14.2.1 Removing other spare parts
► Carefully place the feeder module with the right side down on a stable, level and clean sur-
face.
► Remove the left side cover (see 7.3.1 "Removing the Left Side Cover" [}83]).
► Remove the operating panel (see 7.14.1.1 "Removing the Control Panel and Board" [}122]).
If you have removed the operating panel, the cover on the foil stuffing unit will be accessible and
can be replaced if necessary.

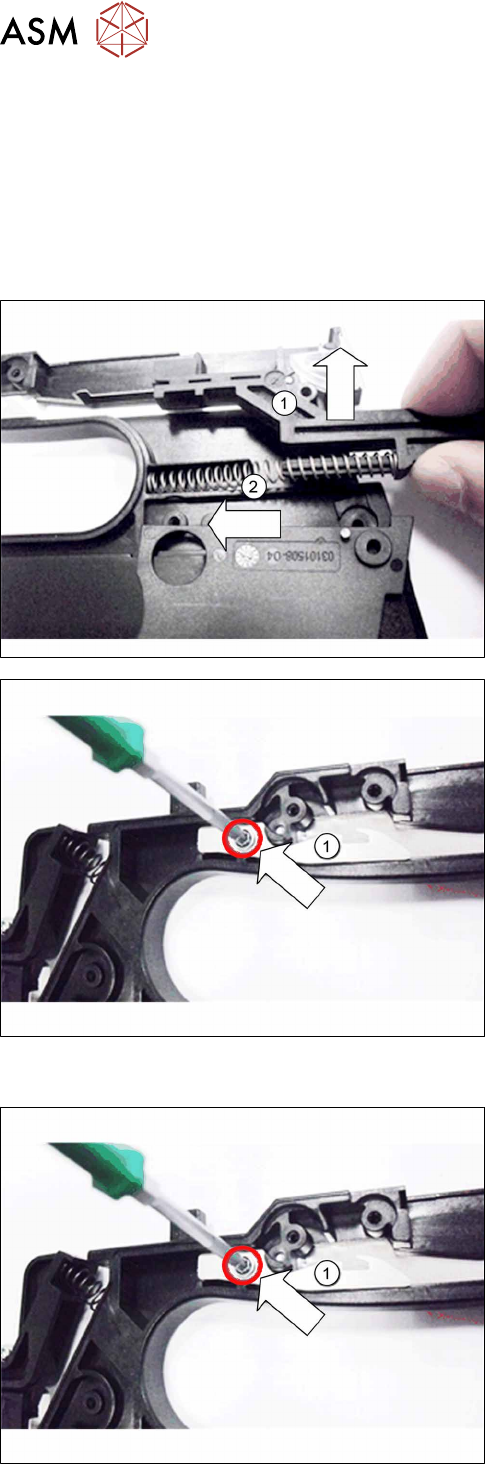

► Pull the slide up and out of the handle. (1)
► Remove the pressure spring. (2)
► Remove the screw which fastens the spring
hook(1) to the handle.
► Remove the spring hook.
7.14.2.2 Fitting other spare parts
► Hold the spring hook as shown(1) by the handle,
so that you can look through the opening and see
the hole for the screw.
► Screw the spring hook to the handle. Use a size
T8 TORX screwdriver with 0.6 Nm for this.
7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 127

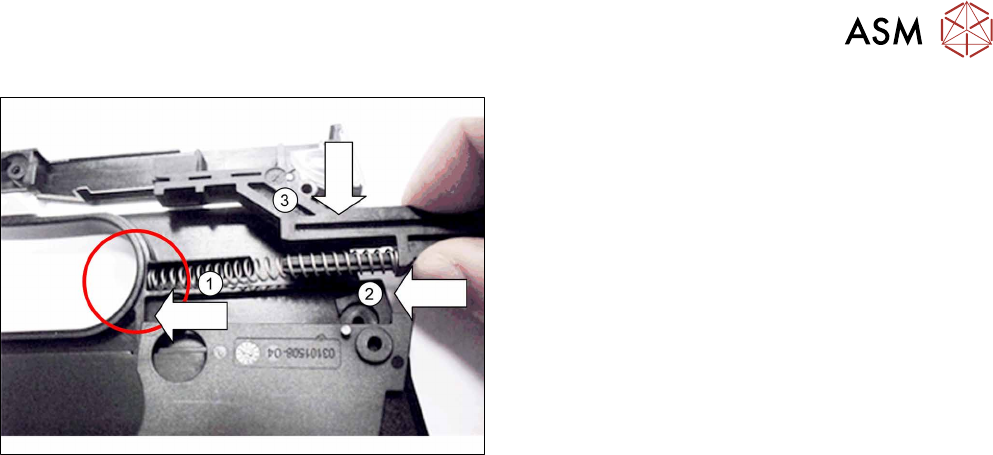

► Push one end of the pressure spring in the
handle, as shown.(1)
► Insert the slide into the other end of the pressure
spring.(2)
► Press the slide into the pressure spring and insert
it from above, into the handle.(3)
At this point, the cover on the foil stuffing unit will be accessible and can be replaced if necessary,
before you fit the operating panel.
► Fasten the operating panel (see 7.14.1.2 "Fitting the Control Panel and Board" [}123]).
► Fasten the left side cover (see 7.3.2 "Fitting the left side cover" [}83]).
