7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
126 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
7.14.2.1 Removing other spare parts
► Carefully place the feeder module with the right side down on a stable, level and clean sur-
face.
► Remove the left side cover (see 7.3.1 "Removing the Left Side Cover" [}83]).
► Remove the operating panel (see 7.14.1.1 "Removing the Control Panel and Board" [}122]).
If you have removed the operating panel, the cover on the foil stuffing unit will be accessible and
can be replaced if necessary.
► Pull the slide up and out of the handle. (1)
► Remove the pressure spring. (2)
► Remove the screw which fastens the spring
hook(1) to the handle.
► Remove the spring hook.
7.14.2.2 Fitting other spare parts
► Hold the spring hook as shown(1) by the handle,
so that you can look through the opening and see
the hole for the screw.
► Screw the spring hook to the handle. Use a size
T8 TORX screwdriver with 0.6 Nm for this.
7 Repairs to SmartFeeder 8 mm X
7.14 Handle with control panel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 127
► Push one end of the pressure spring in the
handle, as shown.(1)
► Insert the slide into the other end of the pressure
spring.(2)
► Press the slide into the pressure spring and insert
it from above, into the handle.(3)
At this point, the cover on the foil stuffing unit will be accessible and can be replaced if necessary,
before you fit the operating panel.
► Fasten the operating panel (see 7.14.1.2 "Fitting the Control Panel and Board" [}123]).
► Fasten the left side cover (see 7.3.2 "Fitting the left side cover" [}83]).
7 Repairs to SmartFeeder 8 mm X
7.15 Control board
128 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
7.15 Control board
CAUTION
Electrostatic charge
When removing and fitting the control board, observe the currently applicable ESD
guidelines.
Required spare part

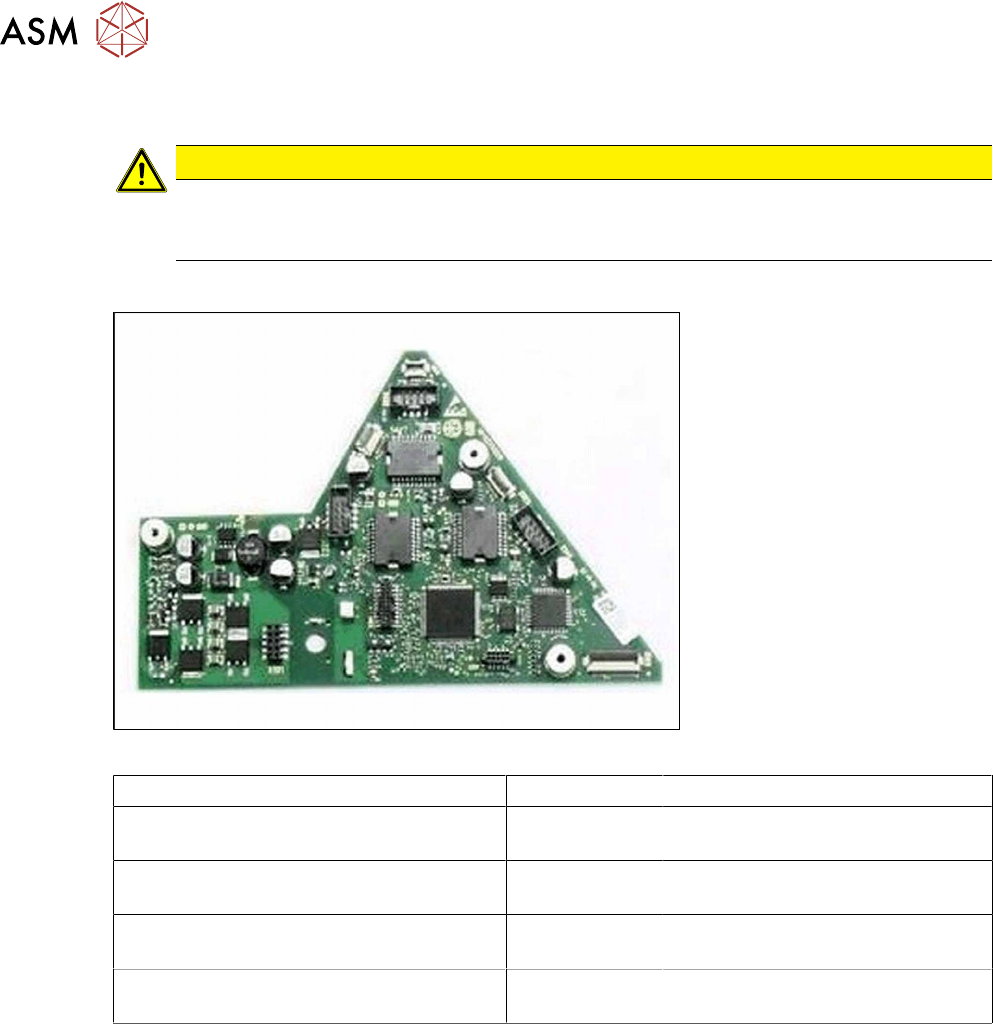

Fig.40: Control board X8Smart V2
Feeder module Item no. Designation
SmartFeeder 8mmX (V1)
00141370-01
03101127-xx Control board X8Smart
SmartFeeder 8mmX (V2)
00141370-02
03124276-xx Control board X8Smart V2
SmartFeeder 8mm X splice sensor (V1)
00141390-01
03101127-xx Control board X8Smart
SmartFeeder 8mm X splice sensor (V2)
00141390-02
03124276-xx Control board X8Smart V2
Required tools
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm and 0.2 Nm, size T8
