8 Repairs to SmartFeeder 2x8 mm X 8.7 Drives 158 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 ► Loosen the screw on the wiper plate. (1) ► Press the two rockers towards the back. (2) ► Remove the wiper plate.…
8 Repairs to SmartFeeder 2x8 mm X
8.7 Drives
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 157
Feeder mod-
ule
Position Number Item no. Designation
SmartFeeder
2x8mmX
1 03095487-xx ETP gear set foil right X 2x8mm
1 1 03071607-xx Shifted gear 1 foil right PA /X2x8
2 1 03071605-xx Toothed wheel 4 foil PA /X2x8
3 3 03083028-xx DIN 988-3x6x0.1-1.4310 (washer)
4 2 00305726-xx DIN 471-3x0.4-C67 (circlip)
Required tools
●
Phillips screwdriver 60 Ncm
●
TORX screwdriver 60 Ncm, size T8
●
Circlip pliers for outer rings 3-10 mm
●
Tweezers
●
Polylub GLY 801 (grease)
Removing shifted gear 1 foil right
► Place the feeder on a stable, level and clean sur-
face.
► Remove the right side cover (see 8.3.3 "Remov-
ing the Right Side Cover" [}136])
► Remove the circlip from the axis of shifted gear 1.
Use the relevant circlip pliers for this.
► Remove the washer.
► Pull shifted gear 1 straight up (vertically) and off
the axis.
8 Repairs to SmartFeeder 2x8 mm X
8.7 Drives
158 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

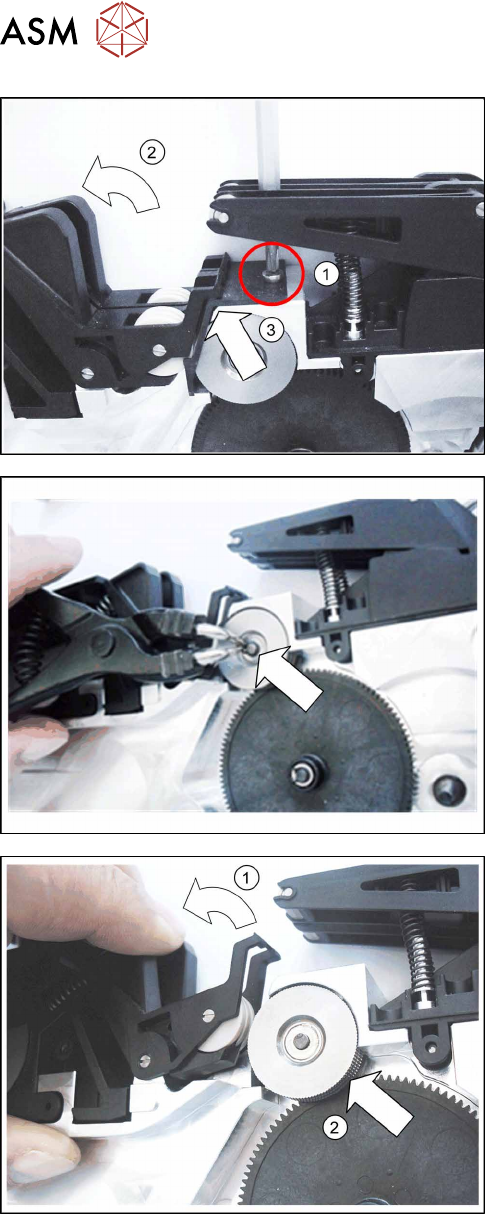

► Loosen the screw on the wiper plate.(1)
► Press the two rockers towards the back. (2)
► Remove the wiper plate.(3)
► Remove the circlip from the axis on the tamp
wheel.
Use suitable circlip pliers for this.
► Remove the washer.
► Press the right rocker towards the back.(1)
► Pull the tamp wheel off the axis.(2)
8 Repairs to SmartFeeder 2x8 mm X
8.7 Drives
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 159

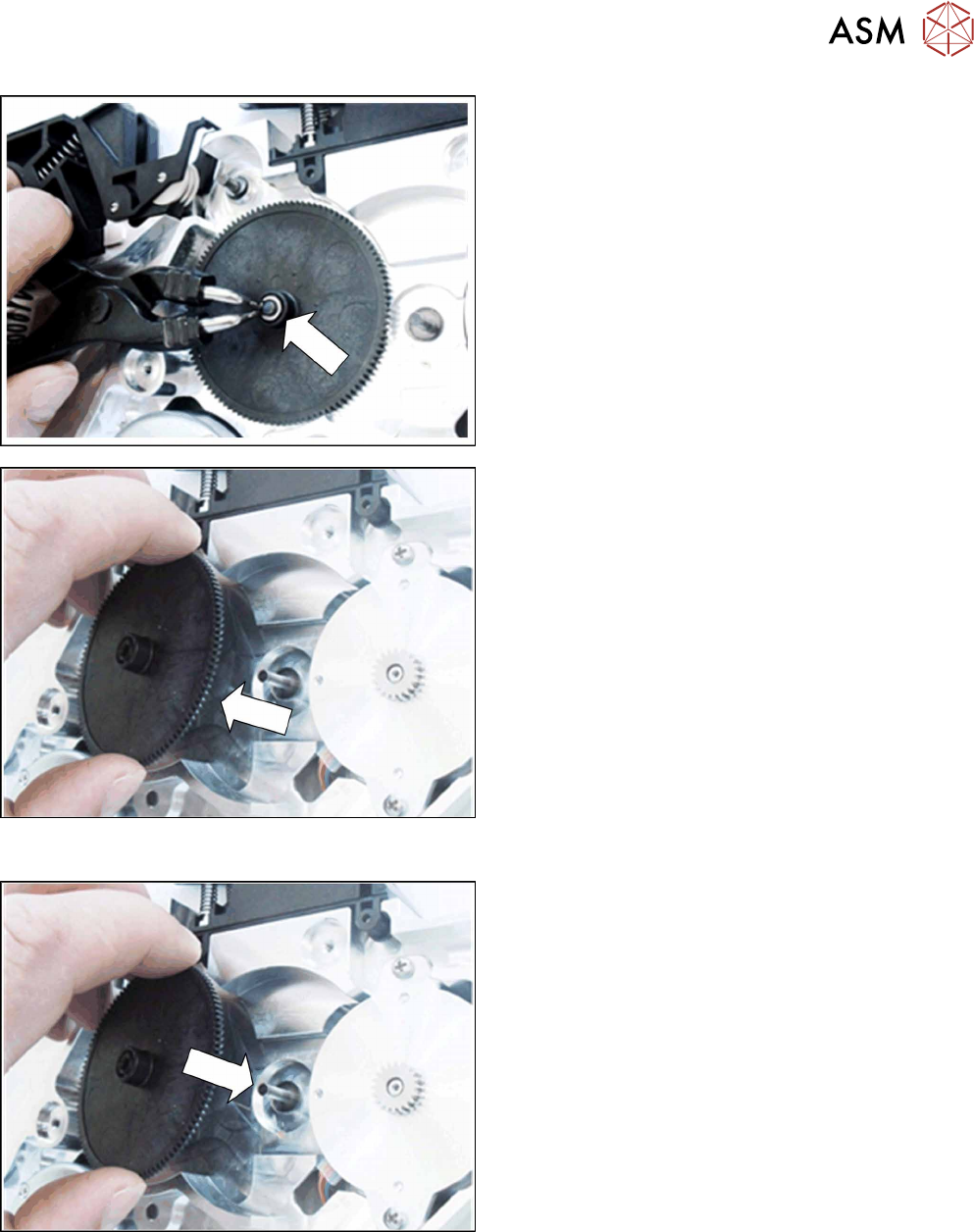

► Remove the circlip from the axis on toothed
wheel 4.
Use suitable circlip pliers for this.
► Remove the washer.
► Pull toothed wheel 4 straight up (vertically) and
off the axis.
Fitting shifted gear 1 foil right
► Clean the area around the two spindles.
► Grease the two spindles with Polylub GLY801.
► Insert the new toothed wheel 4 as far as the stop
onto the axis.
