8 Repairs to SmartFeeder 2x8 mm X
8.12 Flap Tape Disposal
174 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
8.12 Flap Tape Disposal
Required spare part

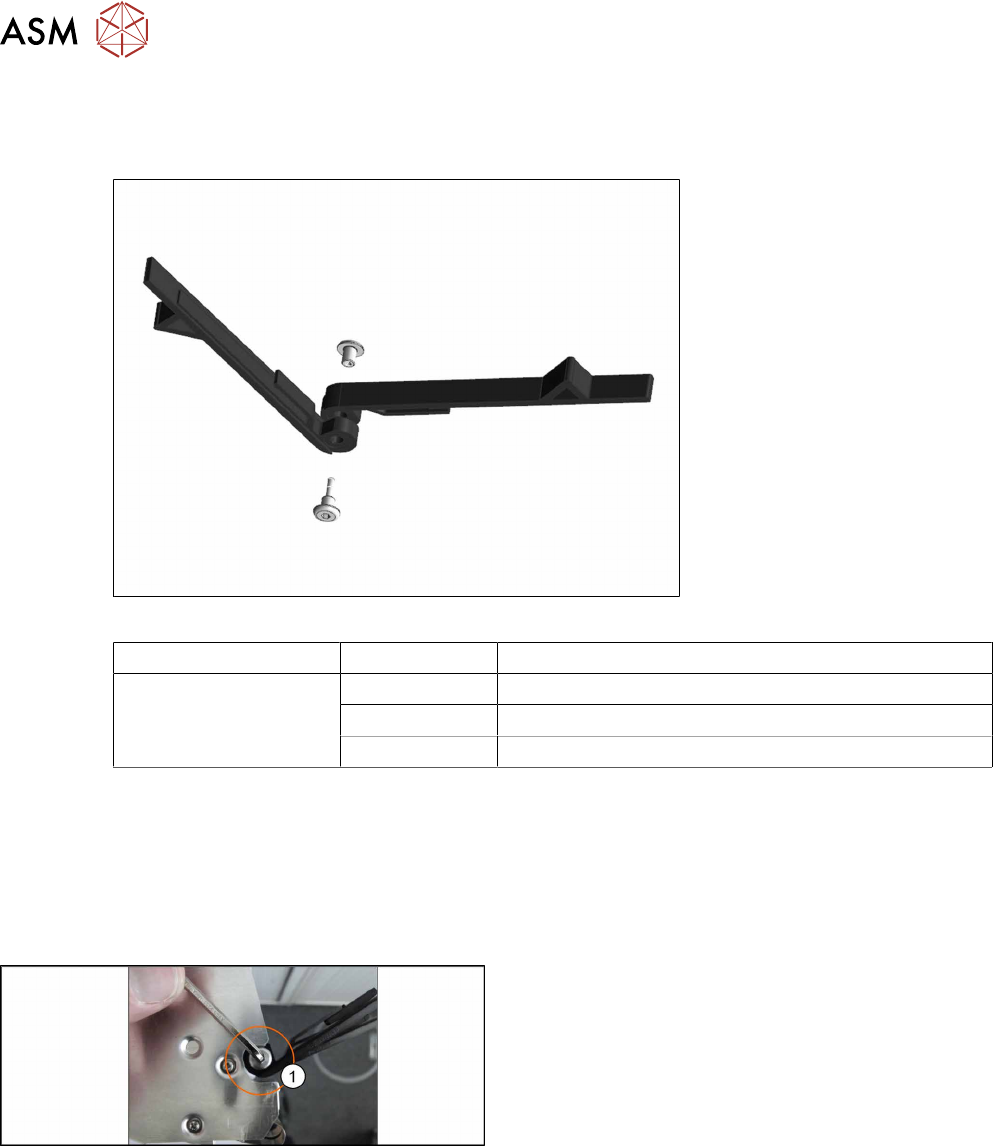

Fig.59: Foil disposal flap
Feeder module Item no. Designation
SmartFeeder 2x8mmX 03072467-xx Foil disposal flap /X2x8
03067306-xx Bearing bolt left flap /X2x8
03067320-xx Bearing bolt right flap /X2x8
Required tools
●
Hexagon socket-head wrench
●
TORX screwdriver size T8
●
Phillips screwdriver
8.12.1 Removing the Flap Tape Disposal
► Place the feeder on a stable, level and clean sur-
face.
► Open the flap.
► Remove the marked screwed axle. Hold the
screw on the other side tight while doing so.(1)
► Carefully remove the flap from the feeder mod-
ule.
8.12.2 Fitting the Flap Tape Disposal
► Carefully insert the flap, from the side, into the foil container.
► Tighten the screwed axle.(1)
► Close the flap.
8 Repairs to SmartFeeder 2x8 mm X
8.13 Foil disposal blade
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 175
8.13 Foil disposal blade
Required spare part

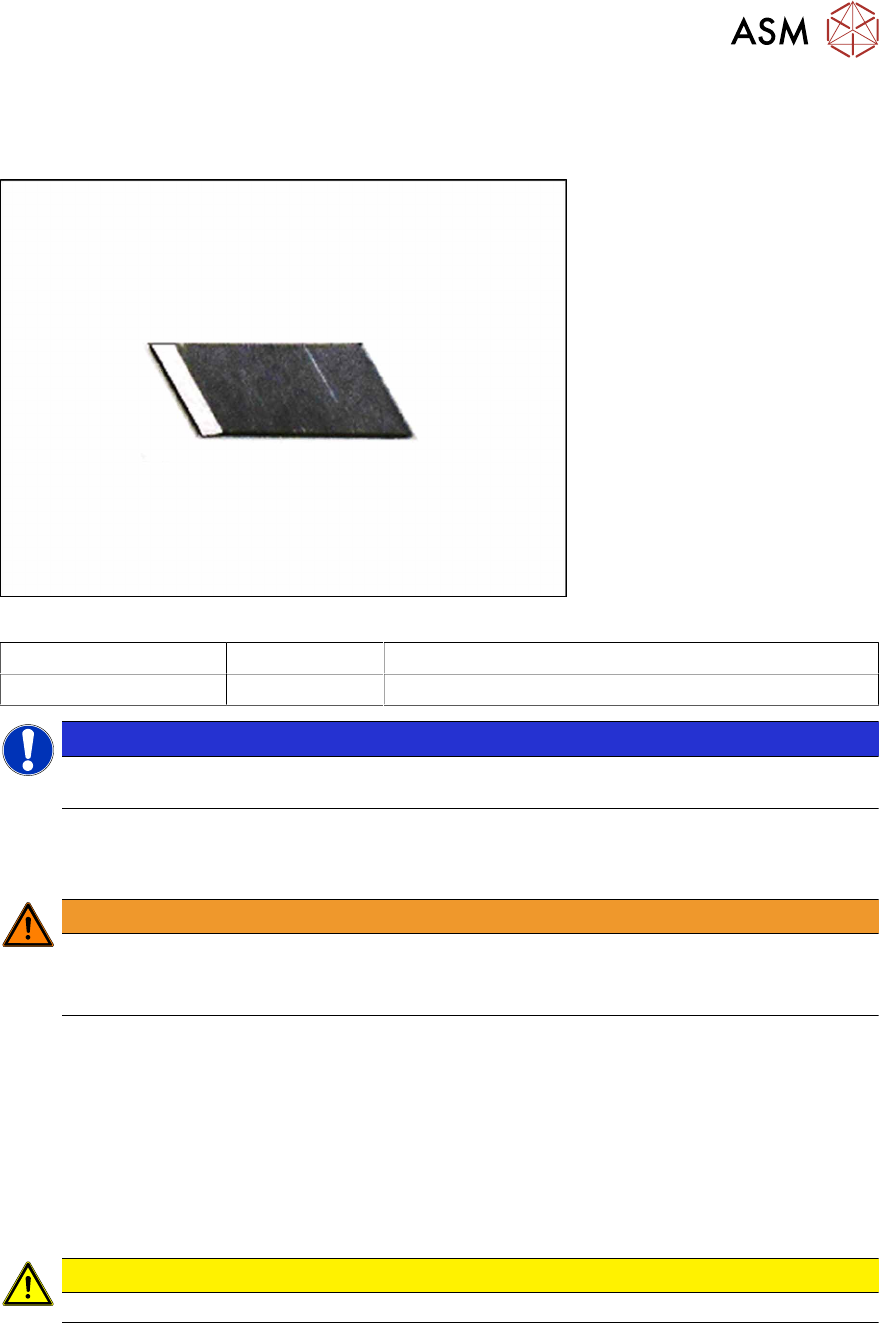

Fig.60: Blade partition wall
Feeder module Item no. Designation
SmartFeeder 2x8mmX 00341370Sxx Blade partition wall
NOTICE
Pay attention when preparing the individual blades. Individual blades must be broken at the
cutter edge. Ensure all safety precautions are observed.
Required tools
●
TORX screwdriver 0.6Nm, size T8
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
8.13.1 Removing the Blade Partition Wall
► Place the feeder on a stable, level and clean surface.
► Open the flap.
► Loosen the screw fastening the blade and remove the old blade.
8.13.2 Fitting the Blade Partition Wall
► Place the new blade in position and tighten the screw.
CAUTION
► The blades are sharp, take necessary safety precautions.
8 Repairs to SmartFeeder 2x8 mm X
8.14 Leaf spring
176 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
8.14 Leaf spring
Required spare part

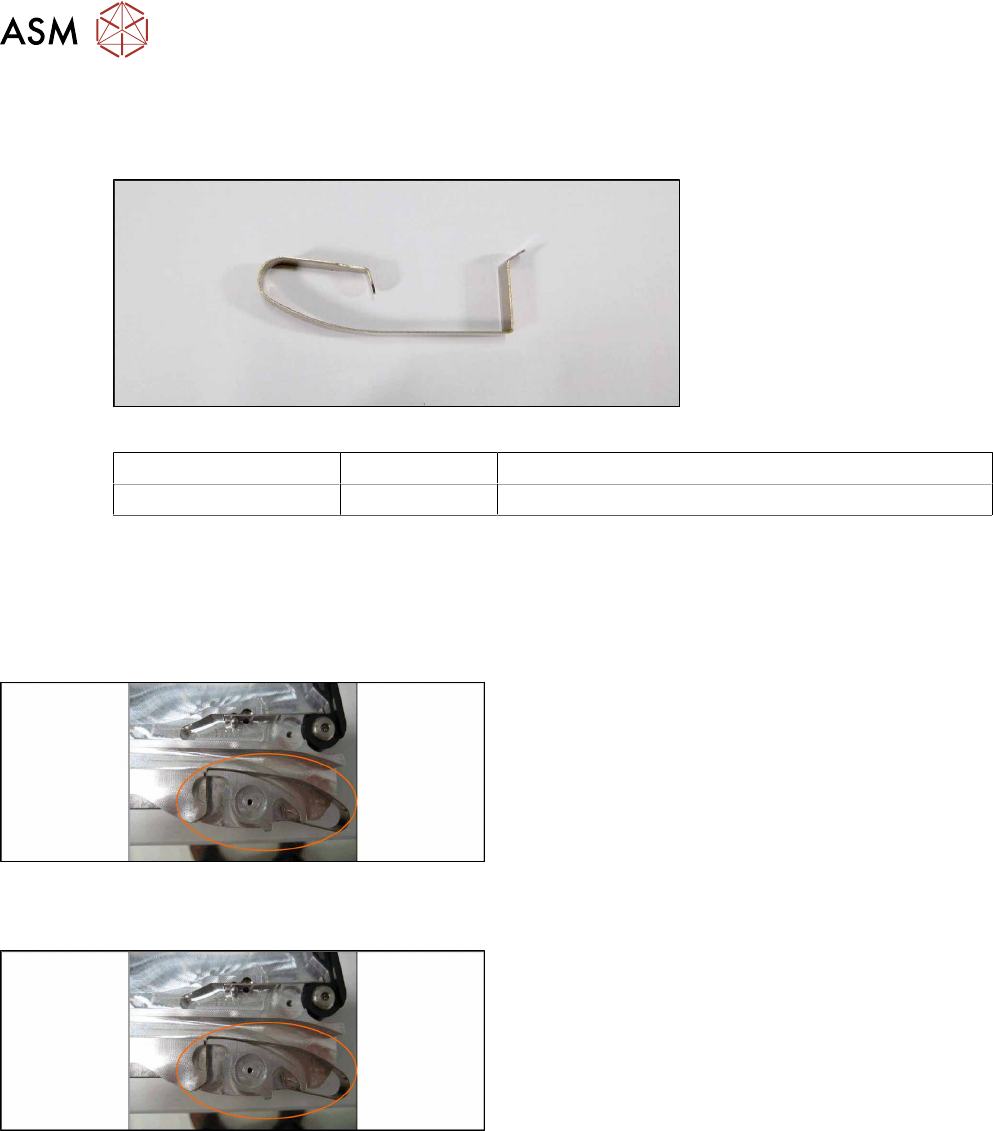

Fig.61: Leaf spring tape infeed
Feeder module Item no. Designation
SmartFeeder 2x8mmX 03071618-xx Leaf spring tape infeed /X2x8 PT V1
Required tools
●
Phillips screwdriver
●
TORX screwdriver size T8
8.14.1 Removing the Leaf Spring Infeed
► Place the feeder on a stable, level and clean sur-
face.
► Depending on which leaf spring is damaged, re-
move either the left or right side cover (see 8.3.1
"Removing the Left Side Cover" [}135], 8.3.3
"Removing the Right Side Cover" [}136]).
► Lift the leaf spring straight up and out of the hold-
ing device.
8.14.2 Fitting the Leaf Spring Infeed
► Insert the leaf spring vertically (from above) into
the holding device.
► Ensure the leaf spring is sitting correctly.
► Fasten the left or right side cover (see 8.3.2 "Fit-
ting the Left Side Cover" [}136], 8.3.4 "Fitting the
Right Side Cover" [}137]).
