9 Repairs to SmartFeeder 12 mm X / 16 mm X 9.5 Pickup window Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 187 ► Screw the EDIF into place using the two marked screws (4) with 0.6Nm. ► Make sure that the EDIF…
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.4 EDIF
186 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
9.4.1 Removing the EDIF
► Remove the left side cover (see 9.3.1 "Removing
the Left Side Cover" [}184].
► Loosen the two screws on the EDIF.(1)
► Loosen the screw on the connector.(2)
► Carefully pull the connector upwards and out.(3)
► Remove the EDIF.
Note:
Make sure that the two springs(4) are not lost.
9.4.2 Fitting the EDIF
► Position the EDIF connector. To do this, insert
the two centering pins on the underside of the
connector in the holes provided on the board.(1)
► Press the EDIF connector onto the marked con-
nection.(2)
► Push the EDIF into the recess at the front of the
feeder module.
Note:
Make sure that the two springs(3) are behind the
EDIF, point straight ahead to the EDIF and are not dis-
torted when inserted.
Replace any bent springs.
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.5 Pickup window
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 187
► Screw the EDIF into place using the two marked
screws(4) with 0.6Nm.
► Make sure that the EDIF springs back when
slight pressure is applied from the front.
If the EDIF does not spring back, loosen the
screws(4) and make sure that the two springs(3)
are aligned towards the front and are not bent.
► Screw the EDIF connector into place with
0.2Nm.(5)
► Fasten the left side cover (see 9.3.2 "Fitting the
Left Side Cover" [}184]).
9.5 Pickup window
Required spare part
Fig.66: Pickup window
Feeder module Position Item no. Designation
SmartFeeder 12mm X 1 03083995-xx Pickup window with lock X12 V2 assembly
8 03083996-xx Tape duct, front X12 V2
SmartFeeder 16mm X 1 03082789-xx Pickup window with lock X16 V2 assembly
8 03082041-xx Tape duct, front X16 N
SmartFeeder 12mm X
SmartFeeder 16mm X
2 03082321-xx Threaded axis pickup window X12/X16 V2
3 03053708-xx Rocker lever /X2x8
4 03077823-xx Collar screw /X2x8
5 03082323- Pressure bracket X12/X16 V2
6 03091961-xx Pressure spring 1.1x9.0x74.0mm
7 03010209-xx ISO 7045 - M2.5 x 6-A2-50-H
Required tools
●
Flat-bladed screwdriver size 1, 0.35Nm
●
Phillips screwdriver 0.6Nm
●
Tweezers
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.5 Pickup window
188 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

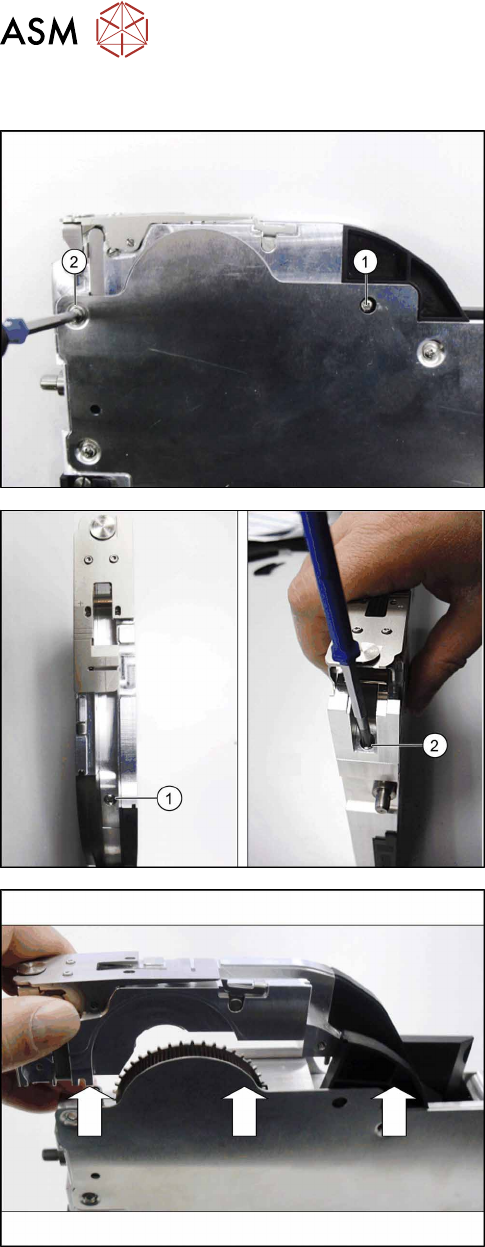

9.5.1 Removing the Pickup Window
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Remove the screw from the splice sensor.(1)
► Remove the top left screw from the side
cover.(2)
► Stand the feeder module up.
► Remove the back screw on the tape duct.(1)
► Hold the pickup window and tape duct with one
hand (as shown) to counteract the spring force of
the compression spring.
► Remove the front screw of the tape duct.(2)
► Lift the tape duct with pickup window and ramp
out of the feeder module.
