9 Repairs to SmartFeeder 12 mm X / 16 mm X 9.6 Splice Sensor 194 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 For the splice sensor: ► Carefully lever the connector of the splice sensor cable out of the connec…
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.6 Splice Sensor
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 193
9.6 Splice Sensor
NOTICE
Splice sensor or dummy
The feeder module can be fitted with either a splice sensor or a dummy splice sensor. The
procedure is the same in both cases.
Required spare part

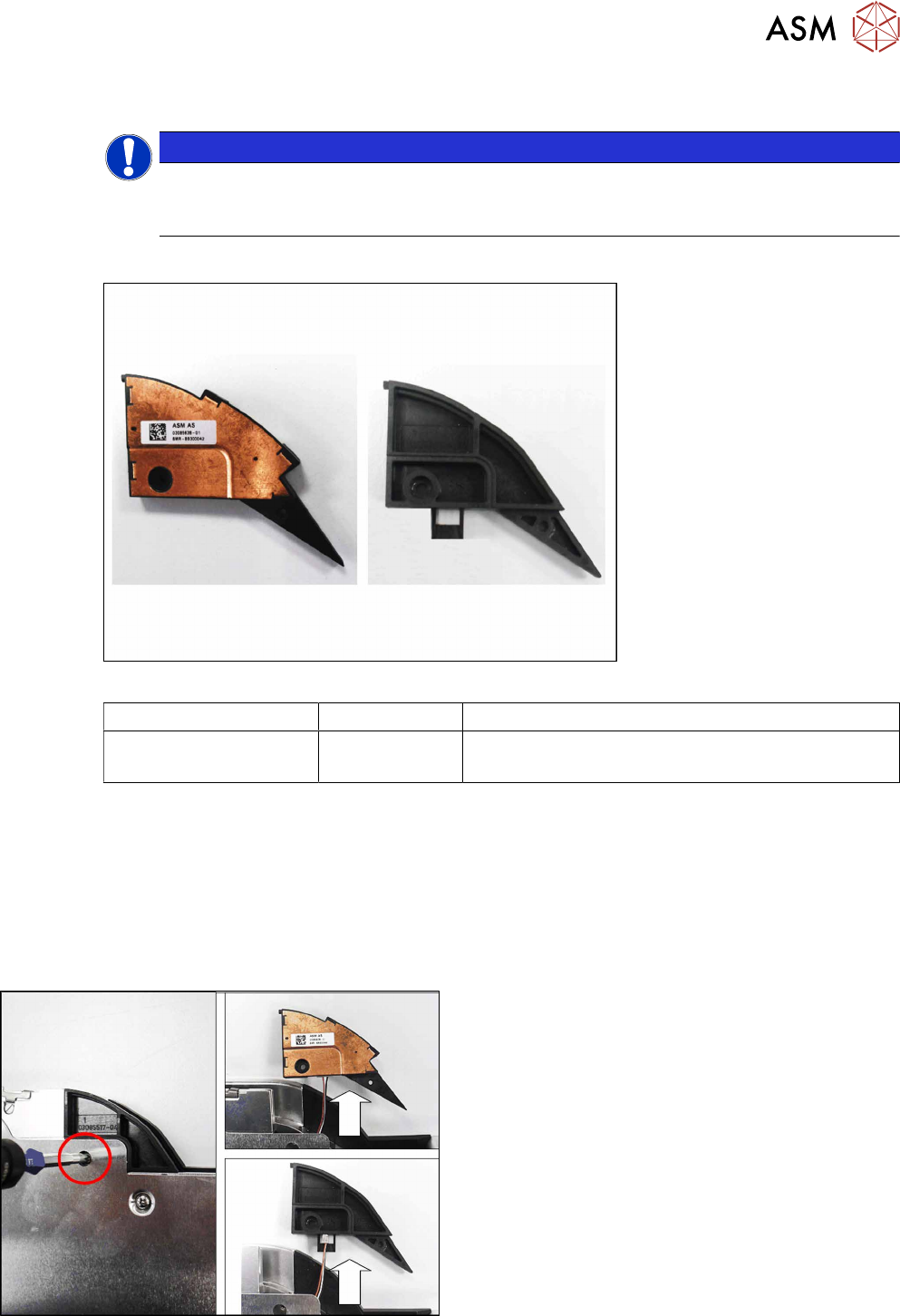

Fig.67: Splice sensor (left) / Splice sensor dummy (right)
Feeder module Item no. Designation
SmartFeeder 12mm X
SmartFeeder 16mm X
03085638- xx
03085517Sxx
Splice sensor X12/X16 V2
Dummy splice sensor X12/X16 V2
Required tools
●
Flat-bladed screwdriver size 1
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers
9.6.1 Removing the Splice Sensor (Dummy)
► Carefully place the feeder module with the right-
side side down on a stable, level and clean sur-
face.
► Remove the screw shown in the diagram.
► Remove the splice sensor or splice sensor
dummy and carefully pull out the cable a little.
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.6 Splice Sensor
194 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

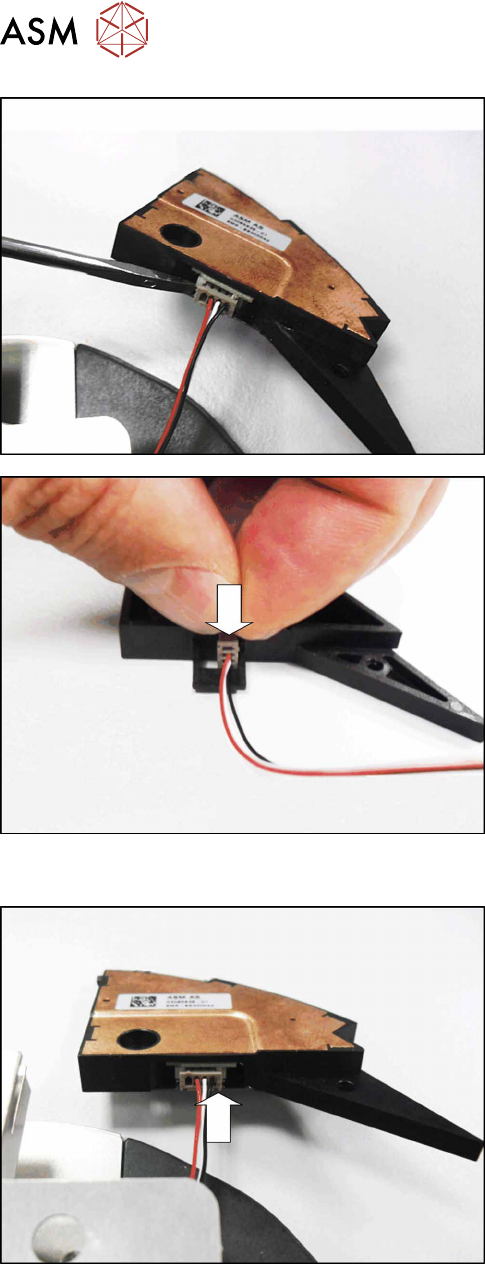

For the splice sensor:
► Carefully lever the connector of the splice sensor
cable out of the connection. Use a small screw-
driver or pair of tweezers to help you.
For the splice sensor dummy:
► Pull the splice sensor cable out of the splice
sensor dummy.
9.6.2 Fitting the Splice Sensor Dummy

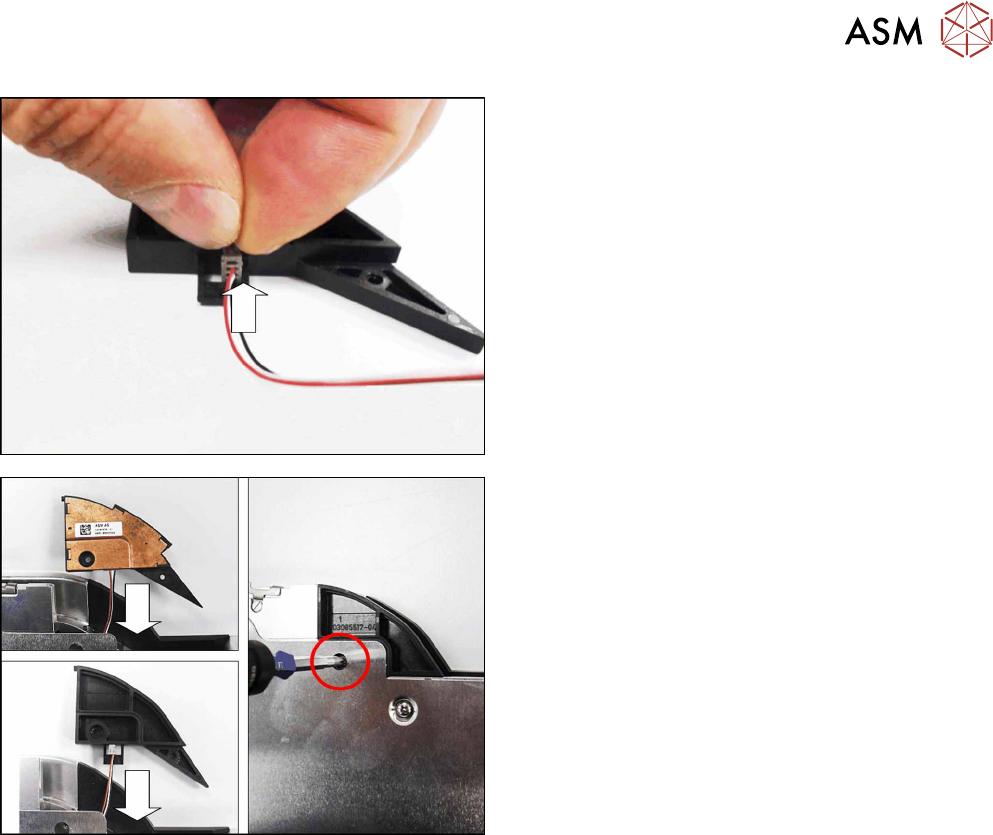

For the splice sensor:
► Fit the 4-pin connector for the splice sensor cable
onto the splice sensor, as shown in the diagram.
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.6 Splice Sensor
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 195
For the splice sensor dummy:
► Insert the 4-pin connector for the splice sensor
cable onto the splice sensor dummy, as shown in
the diagram.
► Push the splice sensor cable and the splice
sensor (dummy) back into the feeder module
housing.
► Fix the splice sensor (dummy) with the marked
screw. Use a Phillips screwdriver with 0.6 Nm for
this.
