9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.6 Splice Sensor
196 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
9.6.3 Splice Sensor Cable
NOTICE
Splice sensor or dummy
The feeder module can be fitted with either a splice sensor or a dummy splice sensor. The
procedure is the same in both cases.
Required spare parts
Fig.68: Cable splice sensor
Feeder module Item no. Designation
SmartFeeder 12 mm X
SmartFeeder 16 mm X
03081962- xx Cable for splice sensor X12/X16 V2
Required tools
●
Slotted screwdriver size 1
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers
9.6.3.1 Removing the Splice Sensor Cable
► Remove the left side cover (see 9.3.1 "Removing
the Left Side Cover" [}184]).
► Unplug the splice sensor cable from the connec-
tion on the control board.(1)
► Remove the cover cord (rubber) from the cable
duct. (2)
► Remove the marked screw from the splice sensor
(dummy).(3)
► Remove the splice sensor or splice sensor
dummy.
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.6 Splice Sensor
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 197

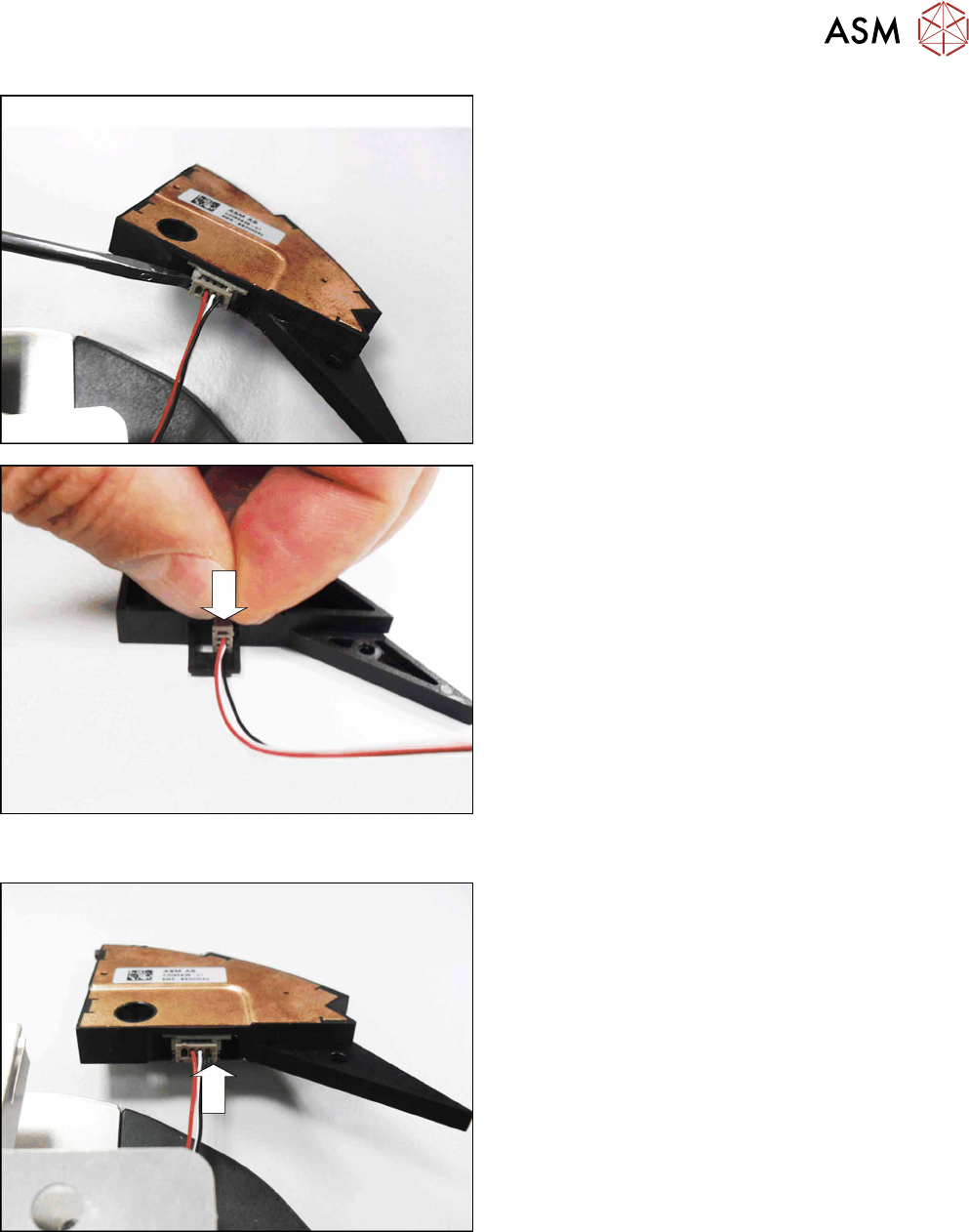

For the splice sensor:
► Carefully lever the connector of the splice sensor
cable out of the connection. Use a small screw-
driver or pair of tweezers to help you.
For the splice sensor dummy:
► Pull the splice sensor cable out of the splice
sensor dummy.
9.6.3.2 Fitting the Cable Splice Sensor
For the splice sensor:
► Fit the 4-pin connector for the splice sensor cable
into the splice sensor, as shown in the diagram.
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.6 Splice Sensor
198 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

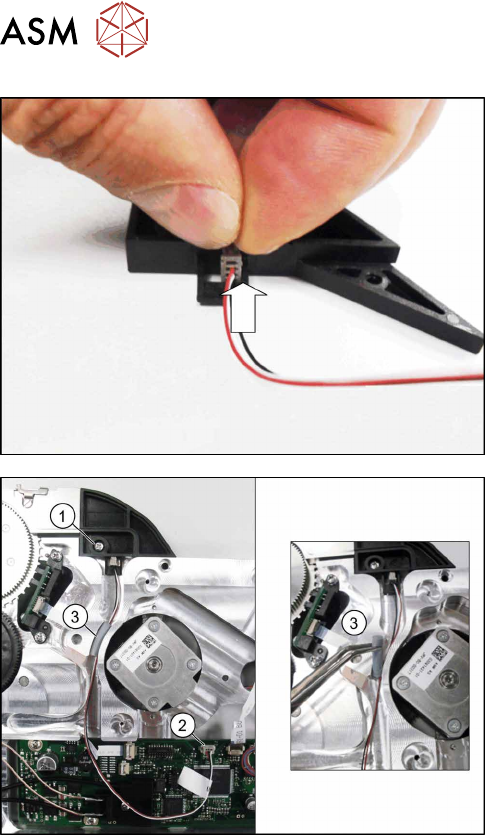

For the splice sensor dummy:
► Insert the 4-pin connector for the splice sensor
cable into the splice sensor dummy, as shown in
the diagram.
► Fix the splice sensor (dummy) using the marked
screw and 0.6 Nm. (1).
► Plug the 3-pin connector for the splice sensor
cable into the connection on the control
board.(2)
► Run the cable in the cable duct as shown in the
diagram.
► Fix the cable with the cover cord (rubber) in the
cable duct.(3)
We advise that you use a pair of tweezers for
this.
► Fasten the left side cover (see 9.3.2 "Fitting the
Left Side Cover" [}184].
