9 Repairs to SmartFeeder 12 mm X / 16 mm X 9.7 Drives and gears Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 203 9.7.2.1 Removing the Gear Stages ► Remove the right side cover (see 9.3.3 "Remov- ing the R…
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.7 Drives and gears
202 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
9.7.2 Shifted gears for foil drive
Required spare parts
Fig.70: ETP gear set tape X12/16
Feeder module Item no. Designation
SmartFeeder 12mm X
SmartFeeder 16mm X
03095426-xx ETP gear set foil X12/16
Tools and equipment required
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
●
Circlip pliers for outer rings 3-10 mm
●
Tweezers
●
Polylub GLY 801 (grease)
NOTICE
Avoiding gear damage
If your feeder module has a bronze shifted gear, this will need to be completely replaced
with a plastic shifted gear.
The use of bronze and plastic shifted gears at the same time is not permitted and can
cause damage to the gear unit.
Shifted gears may not be replaced one at a time. Always replace the complete shifted gear
assembly.
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.7 Drives and gears
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 203

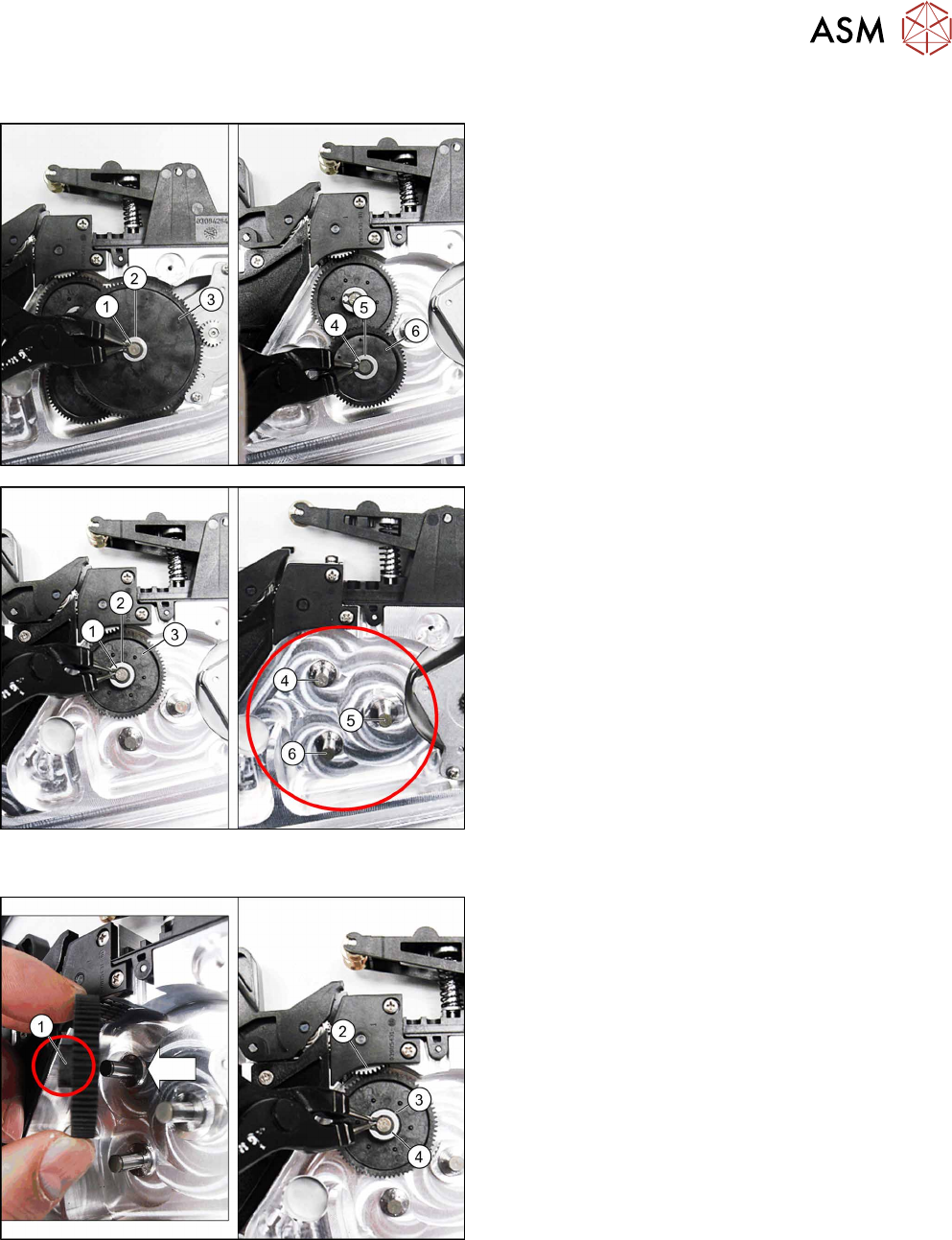

9.7.2.1 Removing the Gear Stages
► Remove the right side cover (see 9.3.3 "Remov-
ing the Right Side Cover" [}184])
► Remove the circlip(1) on gear stage1.
► Remove the washer (2) on gear stage1
► Remove gear stage 1.(3)
► Remove the circlip(4) on gear stage2.
► Remove the washer (5) on gear stage2
► Remove gear stage 2.(6)
► Remove the circlip(1) on toothed wheel6.
► Remove the washer (2) on toothed wheel6.
► Remove toothed wheel6.(3)
► Clean the marked parts of the housing with a lint-
free cloth and remove the grease from the gear
axes with a little ethanol.
► Slightly grease the gear axes (4,5,6) with Poly-
lubGLY801.
9.7.2.2 Fitting the Gear Stages
► Fit the toothed wheel onto the axis.
Make sure that the extension of the axis guid-
ance(1) is on the top and that the toothed wheel
can engage in the teeth of the tamp wheel(2).
► Fit the washer into place.(3)
► Secure the toothed wheel with a new circlip. (4)
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.7 Drives and gears
204 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

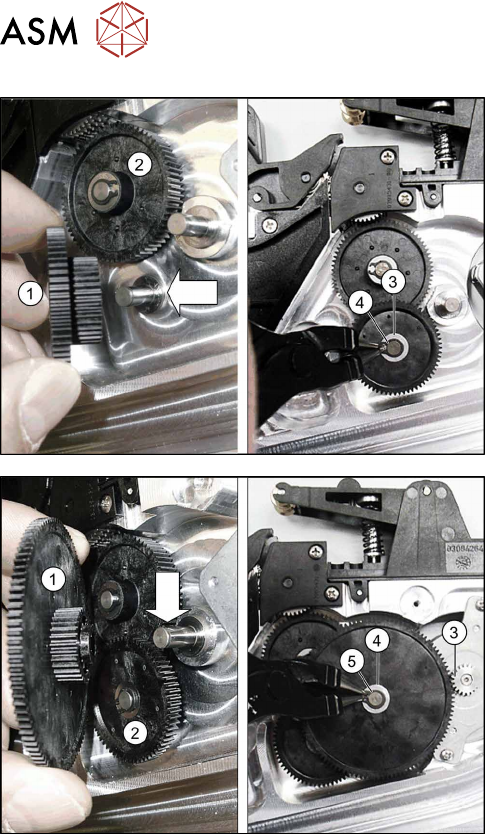

► Fit gear stage2(1) with the smaller toothed
wheel pointing downwards, onto the axle.
Make sure that the smaller toothed wheel en-
gages down in the other toothed wheel(2).
► Fit the washer into place.(3)
► Secure the gear stage with a new circlip.(4)
► Fit gear stage1(1) with the smaller toothed
wheel pointing downwards, onto the axle. (1)
Make sure that the smaller toothed wheel en-
gages underneath into gear stage2(2).
The large toothed wheel for the gear stage en-
gages above with the motor pinion. (3)
► Fit the washer into place.(4)
► Secure the gear stage with a new circlip. (5)
► Fasten the right side cover (see 9.3.4 "Fitting the
Right Side Cover" [}185]).
