9 Repairs to SmartFeeder 12 mm X / 16 mm X 9.7 Drives and gears 204 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 ► Fit gear stage2 (1) with the smaller toothed wheel pointing downwards, onto the axle. Make s…
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.7 Drives and gears
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 203
9.7.2.1 Removing the Gear Stages
► Remove the right side cover (see 9.3.3 "Remov-
ing the Right Side Cover" [}184])
► Remove the circlip(1) on gear stage1.
► Remove the washer (2) on gear stage1
► Remove gear stage 1.(3)
► Remove the circlip(4) on gear stage2.
► Remove the washer (5) on gear stage2
► Remove gear stage 2.(6)
► Remove the circlip(1) on toothed wheel6.
► Remove the washer (2) on toothed wheel6.
► Remove toothed wheel6.(3)
► Clean the marked parts of the housing with a lint-
free cloth and remove the grease from the gear
axes with a little ethanol.
► Slightly grease the gear axes (4,5,6) with Poly-
lubGLY801.
9.7.2.2 Fitting the Gear Stages
► Fit the toothed wheel onto the axis.
Make sure that the extension of the axis guid-
ance(1) is on the top and that the toothed wheel
can engage in the teeth of the tamp wheel(2).
► Fit the washer into place.(3)
► Secure the toothed wheel with a new circlip. (4)
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.7 Drives and gears
204 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
► Fit gear stage2(1) with the smaller toothed
wheel pointing downwards, onto the axle.
Make sure that the smaller toothed wheel en-
gages down in the other toothed wheel(2).
► Fit the washer into place.(3)
► Secure the gear stage with a new circlip.(4)
► Fit gear stage1(1) with the smaller toothed
wheel pointing downwards, onto the axle. (1)
Make sure that the smaller toothed wheel en-
gages underneath into gear stage2(2).
The large toothed wheel for the gear stage en-
gages above with the motor pinion. (3)
► Fit the washer into place.(4)
► Secure the gear stage with a new circlip. (5)
► Fasten the right side cover (see 9.3.4 "Fitting the
Right Side Cover" [}185]).
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.7 Drives and gears
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 205
9.7.3 Tape Drive (Hybrid Stepping Motor)
Required spare part

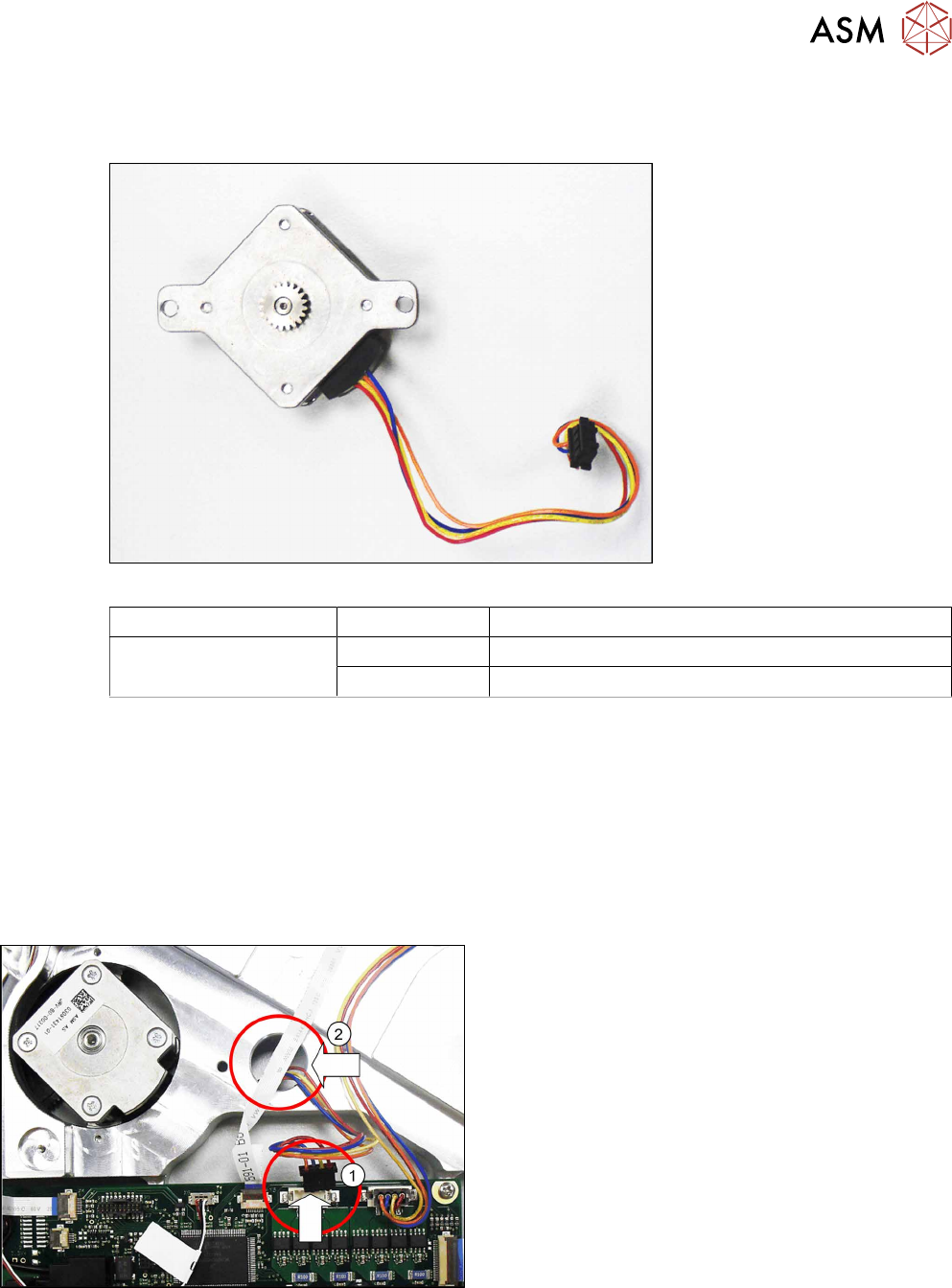

Fig.71: Tape drive hybrid stepping motor assembly
Feeder module Item no. Designation
SmartFeeder 12mm X
SmartFeeder 16mm X
03081431- xx Hybrid stepping motor assembly /X12-16 V2
03010210-xx ISO 7045 - M2.5 x 8-A2-50-H
Required tools
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
●
Gauge for tape drive motor /X12-16 V2, item no. 03085120-xx
●
Circlip pliers for outer rings 3-10 mm
●
Tweezers
9.7.3.1 Removing the Tape Drive
► Remove the right side cover (see 9.3.3 "Remov-
ing the Right Side Cover" [}184])
► Remove the left side cover (see 9.3.1 "Removing
the Left Side Cover" [}184]).
► Carefully place the feeder module on its right
side.
► Unplug the connector for the tape drive cable
from the connection on the control board.(1)
► Guide the tape drive cable through the marked
opening(2) to the other side of the feeder mod-
ule.
