9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.9 Rocker
216 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
9.9 Rocker
9.9.1 Rocker Assembly
Required spare part
Fig.77: Rocker assembly
Feeder module Item no. Designation
SmartFeeder 12mm X 03086298Sxx
03048855-01
03085605-01
Rocker assembly X12 V2
Pressure spring 0.75x6.25x31x8.5
Rocker axis X12/16 V2
SmartFeeder 16mm X 03085603Sxx
03048855-01
03085605-01
Rocker assembly X16 V2
Pressure spring 0.75x6.25x31x8.5
Rocker axis X12/16 V2
Required tools
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver size T8, 0.6Nm
●
Tweezers
●
Optional split pin punch size 1.4
9.9.1.1 Removing the Rocker Assembly
► Remove the left and right side cover (see 9.3.1
"Removing the Left Side Cover" [}184] and 9.3.3
"Removing the Right Side Cover" [}184]).
► Remove the two compression springs on the left
and right.(1)
We advise using a pair of tweezers for this.
► Loosen the screw fastening the rocker axle.(2)
Use a size T8 TORX screwdriver for this.
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.9 Rocker
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 217

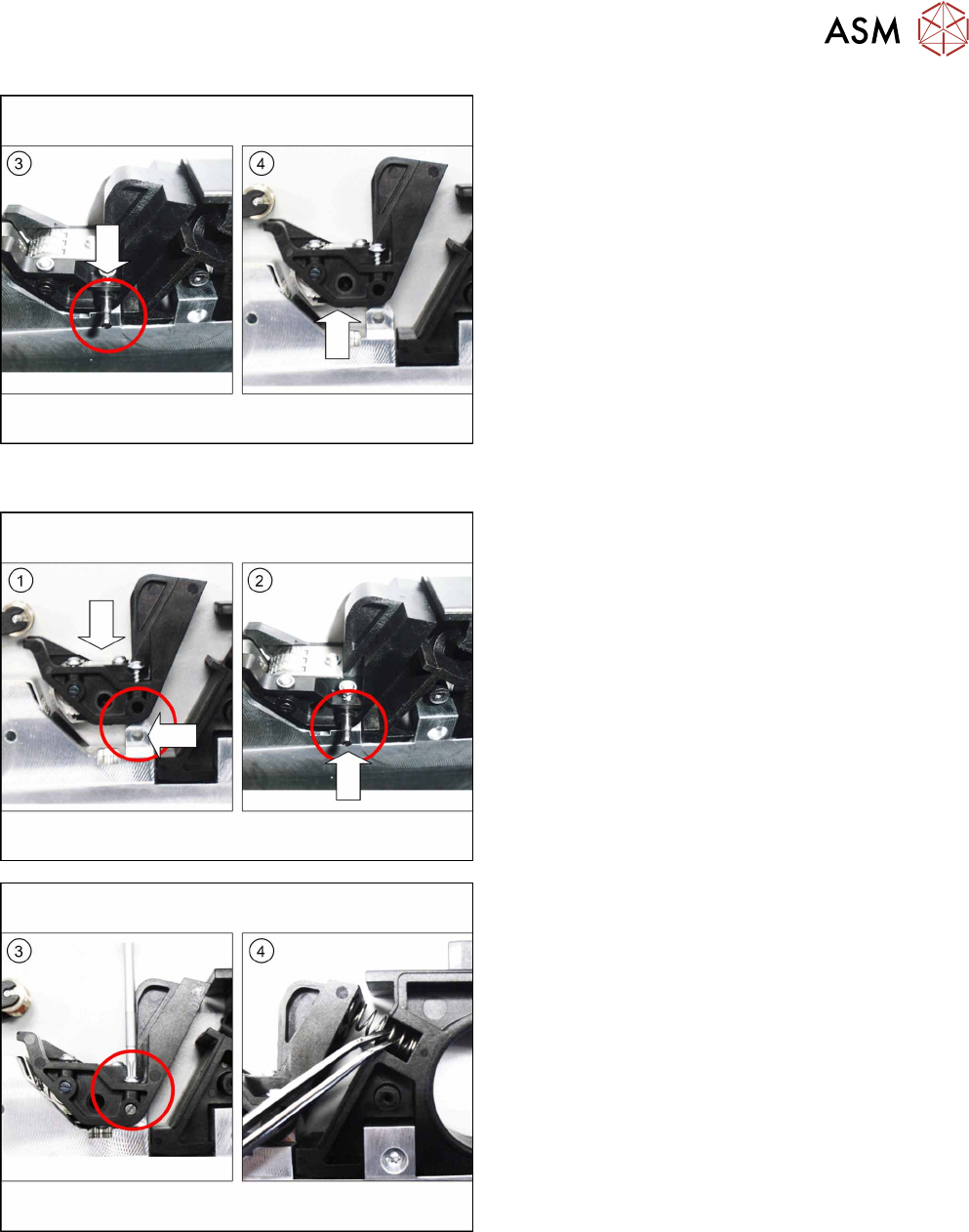

► Remove the rocker axle with a pair of tweezers or
a size 1.4 split pin punch. (3)
► Lift the rocker up and out of the feeder mod-
ule.(4)
9.9.1.2 Fitting the Rocker
► Carefully place the feeder module with the right-
side side down on a stable, level and clean sur-
face.
► Position the rocker as shown, from above, into
the feeder module.(1)
Make sure that you can see through the drilled
hole for the rocker axle.
► Insert the rocker axle into the drilled hole(2)
Make sure that the groove in the rocker axle is on
the side with the fixing screw.
► Position the rocker axle in the drilled hole so that
the axle is flush and the fixing screw can engage
with the rocker axle groove.
► Fix the rocker axle into place using the fixing
screw with 0.6Nm.(3)
► Refit the two compression springs on the left and
right.(4)
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.9 Rocker
218 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
9.9.2 Rocker Stripping Device
Required spare part

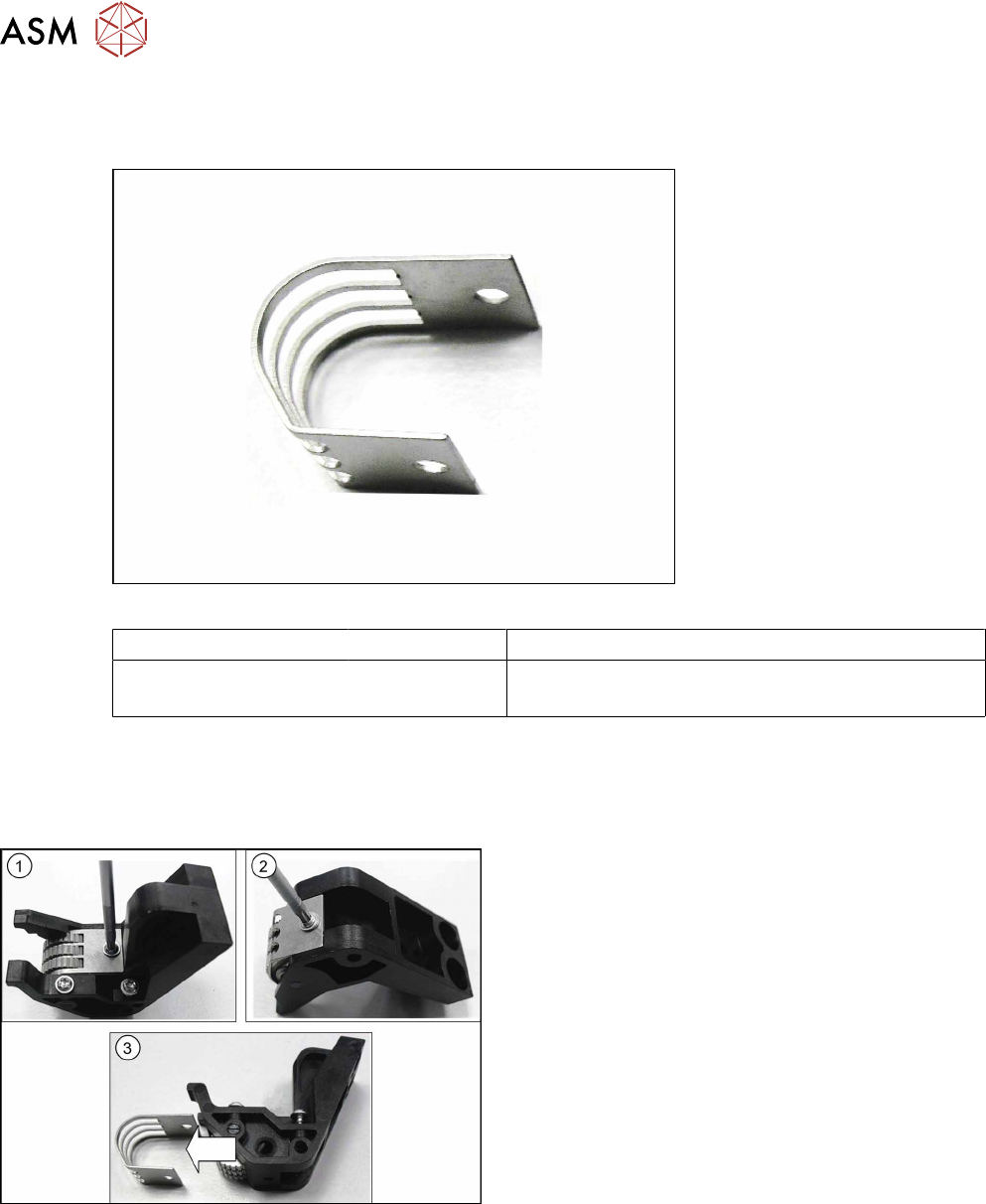

Fig.78: Wiper for rocker X12/X16 V2
Feeder module Item no. Designation
SmartFeeder 12mm X
SmartFeeder 16mm X
03081908Sxx Wiper for rocker X12/X16 V2
Required tools
●
TORX screwdriver size T8, 0.6Nm
9.9.2.1 Removing the Rocker Stripping Device
► Remove the rocker (see 9.9.1.1 "Removing the
Rocker Assembly" [}216]).
► Remove the two screws shown.(1)
Use a size T8 TORX screwdriver for this.
► Pull the stripping device off towards the front.
