9.9.2.2 Fitting the Rocker Stripping Device
► Position the stripping device sideways (as
shown) over the tamp wheel and into the
rocker.(1)
► Align the stripping device straight and fasten it
using the top (2) and bottom (3) screw with
0.6Nm.
► Make sure that the tamp wheel can be turned
easily and only in the direction shown.
If this is not the case, loosen both screws, adjust
the stripping device and tighten the screws again.
► Reinsert the rocker (see 9.9.1.2 "Fitting the
Rocker" [}217]).
9.10 Tape Disposal Flap
Required spare part
Fig.79: Foil disposal flap
Feeder module Item no. Designation
SmartFeeder 12mm X 03081997Sxx Tape disposal flap X12 V2
SmartFeeder 16mm X 03091584- xx Tape disposal flap X16 N assembly
Required tools
●
Allen key size 3, 0.6Nm
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.10 Tape Disposal Flap
220 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

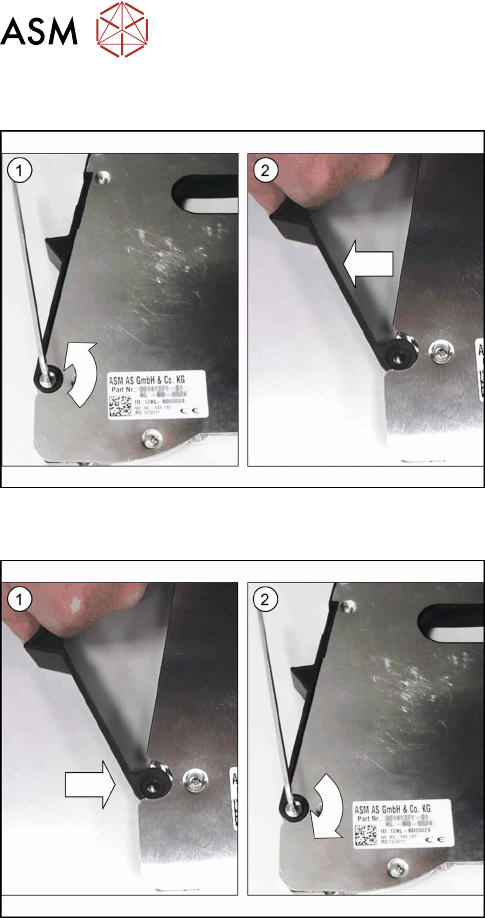

9.10.1 Removing the Flap
► Carefully place the feeder module with the left-
hand side down on a stable, level and clean sur-
face.
► Remove the screwed axle on the flap(1). Use a
size 3 Allen key for this.
► Remove the flap sideways from the feeder mod-
ule.(2)
9.10.2 Fitting the Flap
► Carefully place the feeder module with the left-
hand side down on a stable, level and clean sur-
face.
► Push the flap, as shown, side ways into the
feeder module.(1)
► Close the flap.
► Fasten the flap with the screwed axle(2). Use a
size 3 Allen key with 0.6Nm for this.
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.11 Foil disposal blade
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 221
9.11 Foil disposal blade
Required spare part
Fig.80: Foil disposal blade
Feeder module Item no. Designation
SmartFeeder 12mm X
SmartFeeder 16mm X
0341370Sxx Blade
Required tools
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
9.11.1 Removing the Blade
► Carefully place the feeder module with the right-
side side down on a stable, level and clean sur-
face.
► Open the flap at the back of the foil container
► Remove the screw fastening the blade.(1)
Use a size 8 TORX screwdriver for this.
► Remove the blade with a pair of tweezers.(2)
