9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.11 Foil disposal blade
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 221

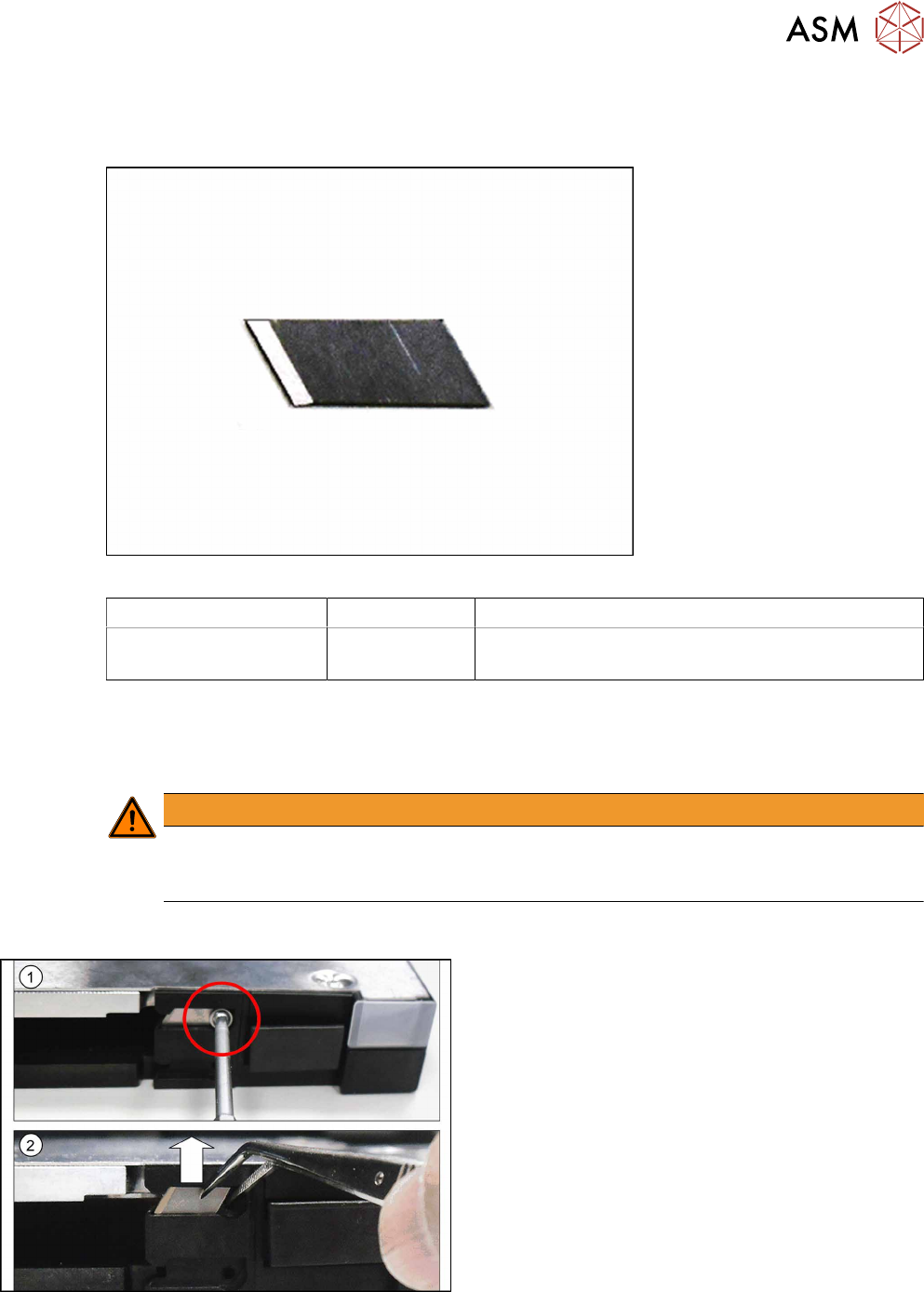

9.11 Foil disposal blade
Required spare part
Fig.80: Foil disposal blade
Feeder module Item no. Designation
SmartFeeder 12mm X
SmartFeeder 16mm X
0341370Sxx Blade
Required tools
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
9.11.1 Removing the Blade
► Carefully place the feeder module with the right-
side side down on a stable, level and clean sur-
face.
► Open the flap at the back of the foil container
► Remove the screw fastening the blade.(1)
Use a size 8 TORX screwdriver for this.
► Remove the blade with a pair of tweezers.(2)
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.12 Leaf Spring
222 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
9.11.2 Fitting the Blade
► Use a pair of tweezers to insert the blade.(1)
Attention:
the blade is very sharp.
► Screw the blade tight.(2)
Use an RF2.5x6 screw and a size 8 TORX
screwdriver with 0.6Nm for this.
► Close the flap.
9.12 Leaf Spring
Required spare part
Fig.81: Leaf spring
Feeder module Item no. Designation
SmartFeeder 12mmX
SmartFeeder 16mm X
03082505Sxx Leaf spring tape infeed X12/X16 V2
Required tools
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
●
Flat or universal pliers
9 Repairs to SmartFeeder 12 mm X / 16 mm X
9.12 Leaf Spring
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 223
9.12.1 Removing the Leaf Spring
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Remove the right side cover (see 9.3.3 "Remov-
ing the Right Side Cover" [}184])
► Remove the two marked screws.(1)
► Remove the support plate.(2)
► Use a pair of pliers to pull the leaf spring up and
out of the feeder module.(3)
9.12.2 Fitting the Leaf Spring
► Insert the leaf spring into the feeder module as
shown.(1)
► Fit the support plate.(2)
 NOTICE!
Make sure that the end of the leaf spring is
not caught by the support plate and can be
moved freely in a downwards direction.
.
► Fasten the support plate with the two marked
screws. Use a Phillips screwdriver with 0.6 Nm
for this.
► Fasten the right side cover (see9.3.4 "Fitting the
Right Side Cover" [}185] ).
