10 Repairs to SmartFeeder 24 - 104 mm X
10.4 EDIF
234 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
10.4 EDIF
Required spare part
Fig.85: EDIF secondary assembly X Smart
Feeder module Item no. Designation
SmartFeeder 24 – 104 mm X 03125222Sxx EDIF secondary assembly X Smart
03068667-xx Collar screw ø4x4.5 M3 /X2x8
03012683-xx Pressure spring D-027
Required tools
●
Flat-bladed screwdriver 0.6Nm
●
Phillips screwdriver 0.6Nm
●
Phillips screwdriver 0.2Nm
●
TORX screwdriver 0.6Nm, size T8
10.4.1 Removing the EDIF
► Remove the left side cover (see 10.3.1 "Remov-
ing/fitting the left side plate" [}230]).
► Loosen the two screws on the EDIF.(1)
► Loosen the screw on the connector.(2)
10 Repairs to SmartFeeder 24 - 104 mm X
10.4 EDIF
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 235

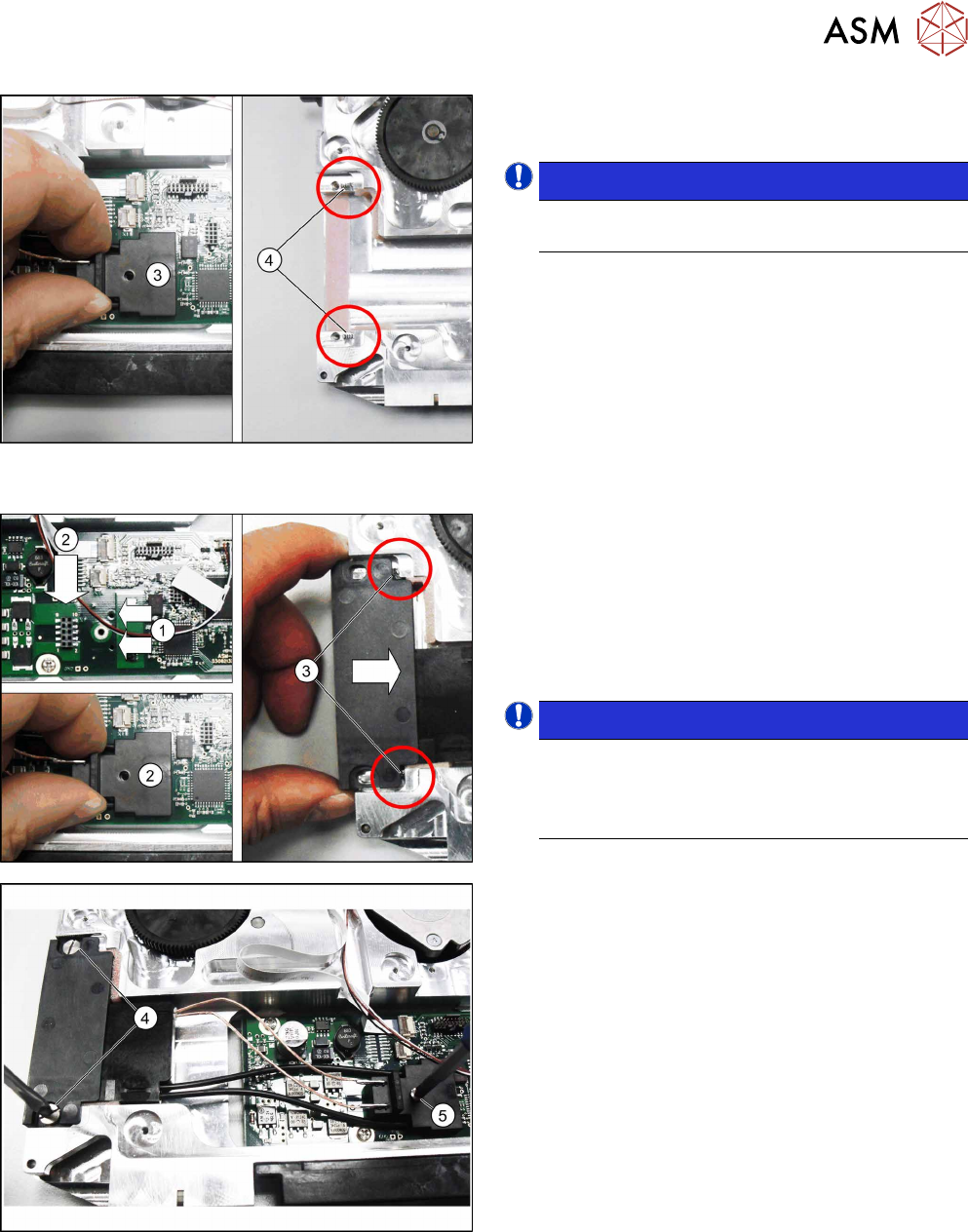

► Carefully pull the connector upwards and out.(3)
► Remove the EDIF.
 NOTICE!
Make sure that the two springs(4) are not
lost.
.
10.4.2 Fitting the EDIF
► Position the EDIF connector. To do this, insert
the two centering pins on the underside of the
connector in the holes provided on the board.(1)
► Press the EDIF connector onto the marked con-
nection.(2)
► Push the EDIF into the recess at the front of the
feeder module.
 NOTICE!
Make sure that the two pressure springs(3)
are behind the EDIF, point straight ahead to
the EDIF and are not distorted when inserted.
Replace any bent pressure springs.
.
► Screw the EDIF into place using the two marked
screws(4) with 0.6Nm.
► Make sure that the EDIF springs back when
slight pressure is applied from the front.
If the EDIF does not spring back, loosen the
screws(4) and make sure that the two springs(3)
are aligned towards the front and are not bent.
► Screw the EDIF connector into place with
0.2Nm.(5)
► Fasten the left side cover (see 10.3.1 "Removing/
fitting the left side plate" [}230]).
10 Repairs to SmartFeeder 24 - 104 mm X
10.5 Pickup window
236 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
10.5 Pickup window
Required spare part

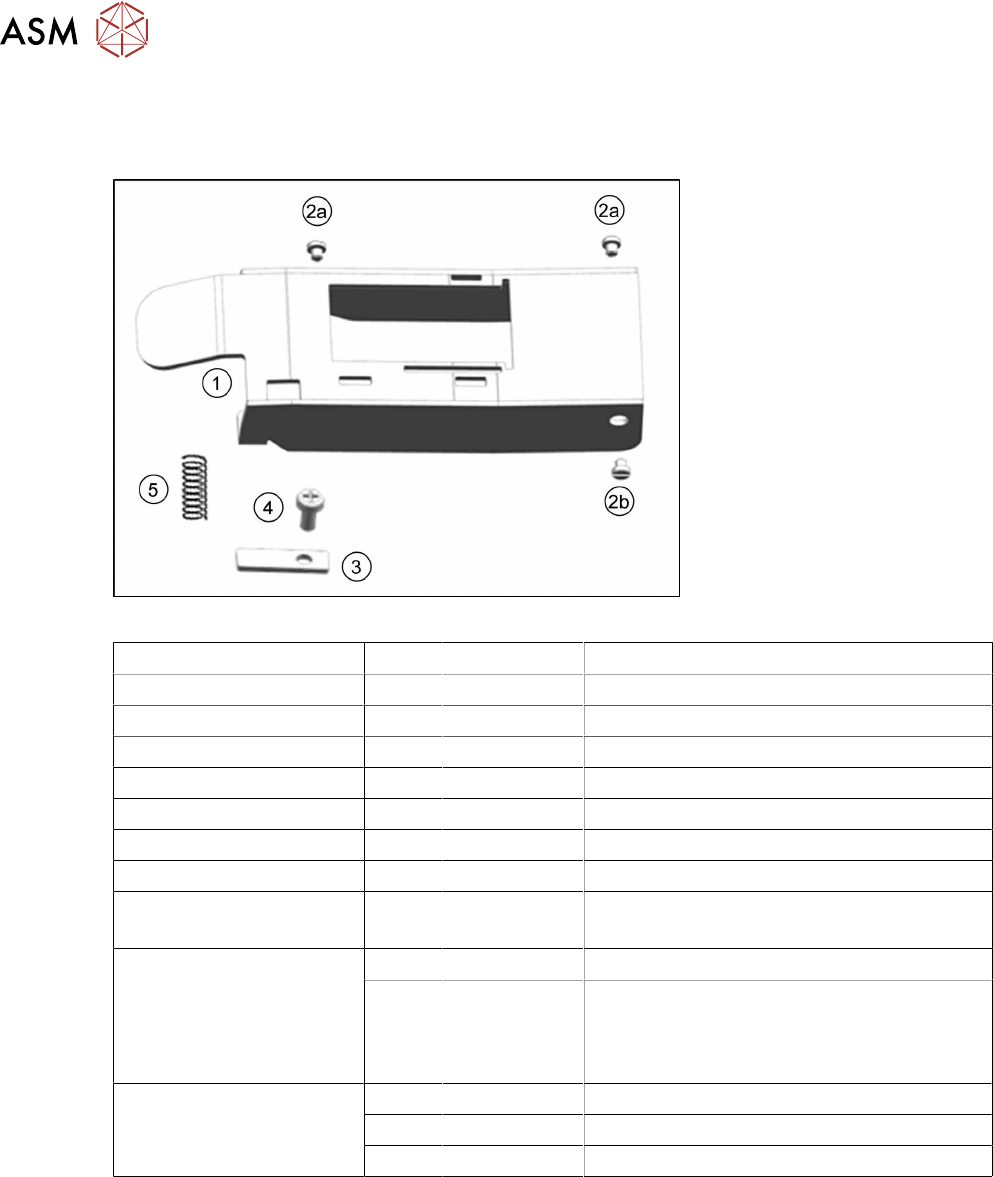

Fig.86: Example of pickup window
Feeder module Pos Item no. Designation
SmartFeeder 24mm X 1 03145389Sxx Pickup window X24Smart 3-part
SmartFeeder 32mm X 1 03145455Sxx Pickup window X32Smart 3-part
SmartFeeder 44mm X 1 03145993Sxx Pickup window X44Smart 3-part
SmartFeeder 56mm X 1 03145462Sxx Pickup window X56Smart 3-part
SmartFeeder 72mm X 1 03134500Sxx Pickup window X72Smart 3-part
SmartFeeder 88mm X 1 03146145Sxx Pickup window X88Smart 3-part
SmartFeeder 104mm X 1 03146191Sxx Pickup window X104Smart 3-part
SmartFeeder 24mm X
SmartFeeder 72mm X
2 03112772-xx Bearing screw pickup window X24Smart (3x)
SmartFeeder 32mm X
SmartFeeder 44mm X
SmartFeeder 56mm X
SmartFeeder 88mm X
SmartFeeder 104 mmX
2a 03147817-xx Bearing screw AHF right X32-104Smart (2x)
2b 03112772-xx Bearing screw pickup window X24Smart (1x)
SmartFeeder 24
to 104 mm X
3 03112027-xx Holding plate spring pickup window X24-104
4 03071822-xx SN 213307-H-M2.5 x 5-A2-70 (screw)
5 03134115-xx Pressure spring VD-085D
