10 Repairs to SmartFeeder 24 - 104 mm X
10.5 Pickup window
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 237

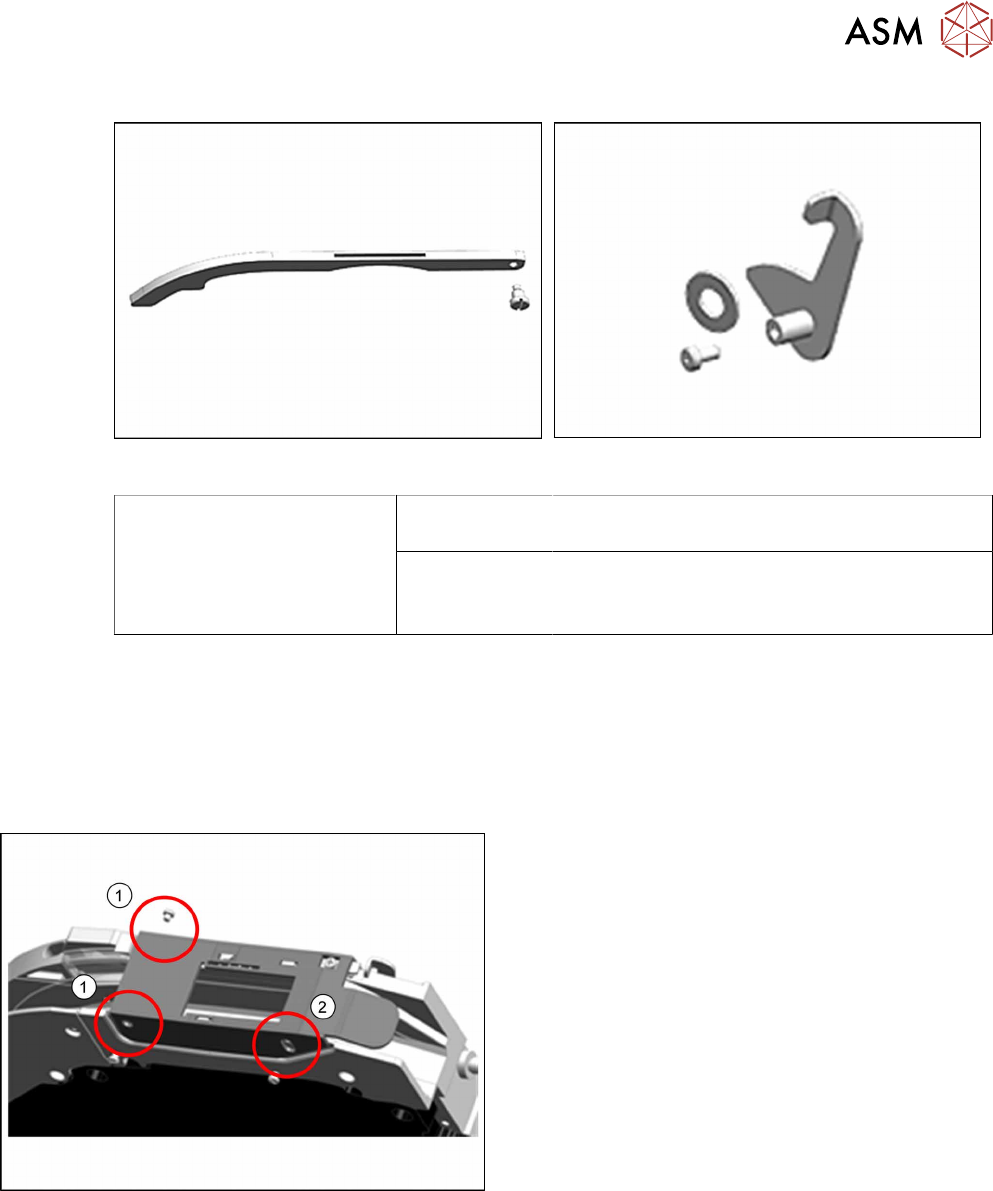

Other spare parts
Ejector X24-104 Smart Oeffner pickup window assembly X24-104
SmartFeeder 24 – 104mmX 03126631- xx
03020727-xx
Ejector X24-104 Smart
Collar screw (fixture for ejector)
03110849-xx
03071822-xx
03007602-xx
Oeffner pickup window assembly X24-104
SN 213307-H-M2.5 x 5-A2-70 (screw)
ISO 7089 - 3 - 200 HV (washer)
Required tools
●
Flat-bladed screwdriver size 1, 0.35Nm
●
Phillips screwdriver 0.6Nm
●
Tweezers
10.5.1 Removing the pickup window
► Remove the two screws from the rear pivot point
of the pickup window (left and right).(19
► Remove the guiding screw from the pickup win-
dow (front right).(2)
10 Repairs to SmartFeeder 24 - 104 mm X
10.5 Pickup window
238 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

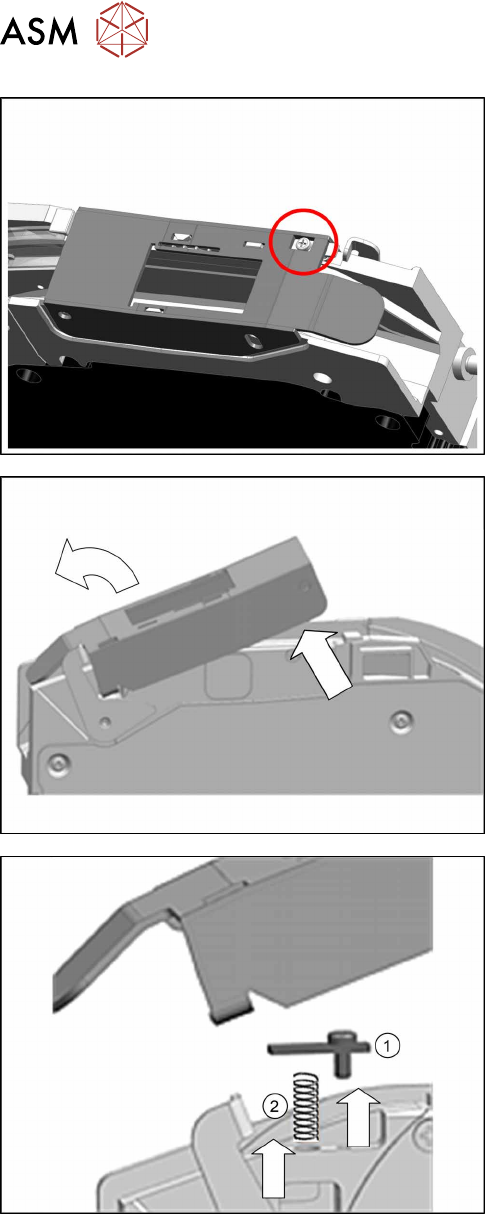

The pickup window is held in place with a pressure
spring and a holding plate.
► Loosen the "holding plate spring pickup window
X24-104" to relax the pressure spring.
► Remove the screw.
► Lift the pickup window at the back.
► Then tilt the pickup window forwards and away.
► Remove the holding plate(1).
► Remove the pressure spring(2).
10 Repairs to SmartFeeder 24 - 104 mm X
10.5 Pickup window
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 239

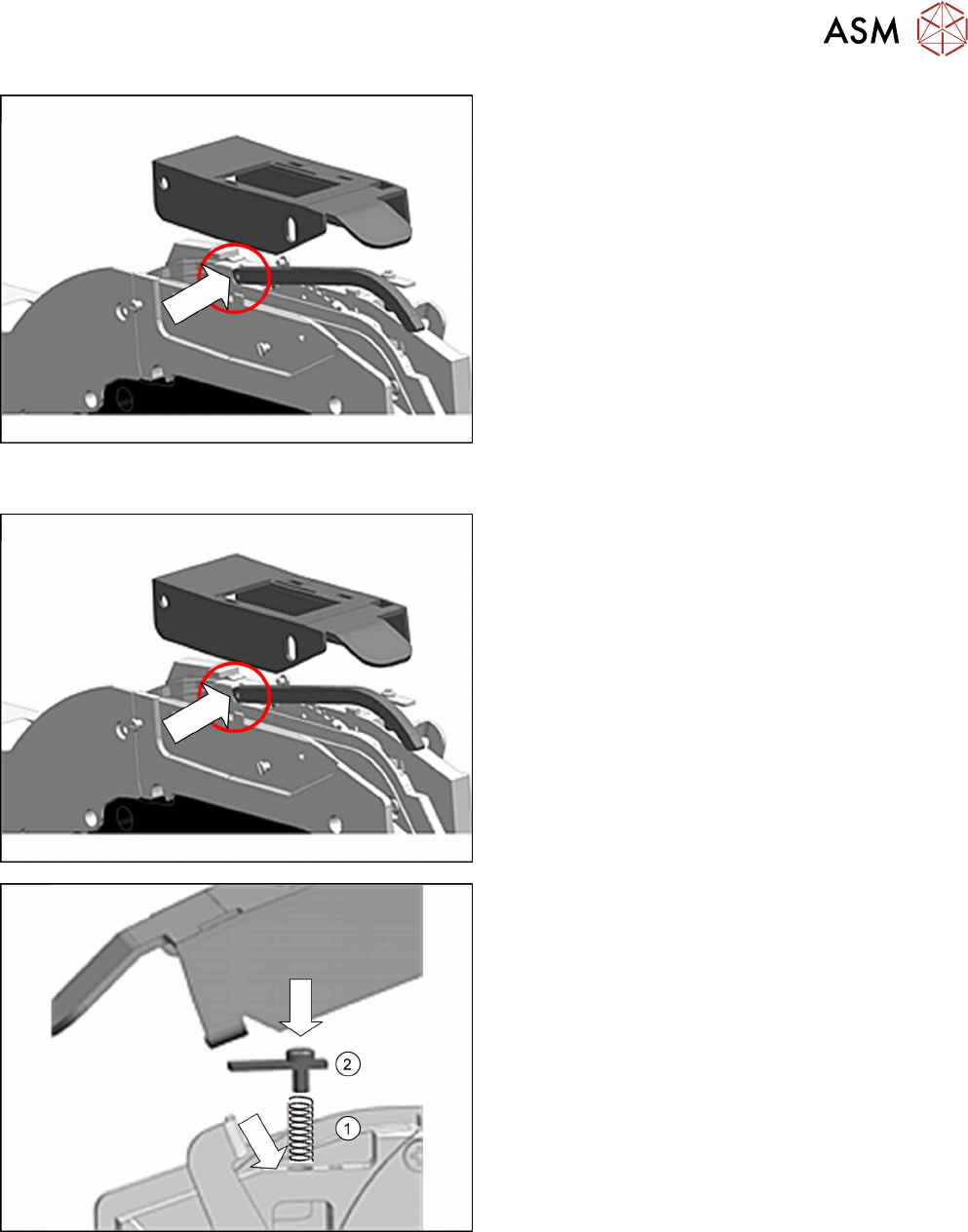

Underneath the pickup window, you will find the
"Ejector X24-104 Smart" [03126631-xx]. This can now
be replaced if needed.
The ejector is fixed with a "collar screw" [03020727-xx]
to the base unit.
10.5.2 Fitting the pickup window
► Before fitting the pickup window, make sure that
the ejector is fitted with a "collar screw".
► Insert the pressure spring(1) into the hole.
► Insert the screw as shown into the holding plate
and then insert the holding plate(2).
