10 Repairs to SmartFeeder 24 - 104 mm X
10.6 Splice sensor
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 247

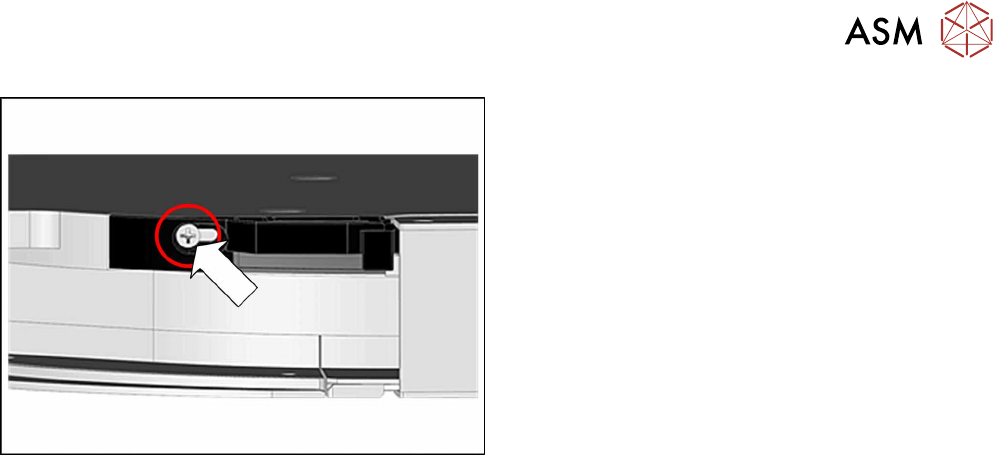

► Fix the splice sensor (dummy) with the marked
screw. Use a Phillips screwdriver with 0.6 Nm for
this.
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Fix the left side plate into place. (see 10.3.1 "Re-
moving/fitting the left side plate" [}230]).
10 Repairs to SmartFeeder 24 - 104 mm X
10.7 Drives and gears
248 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
10.7 Drives and gears
10.7.1 Shifted gear for tape drive
Required spare parts

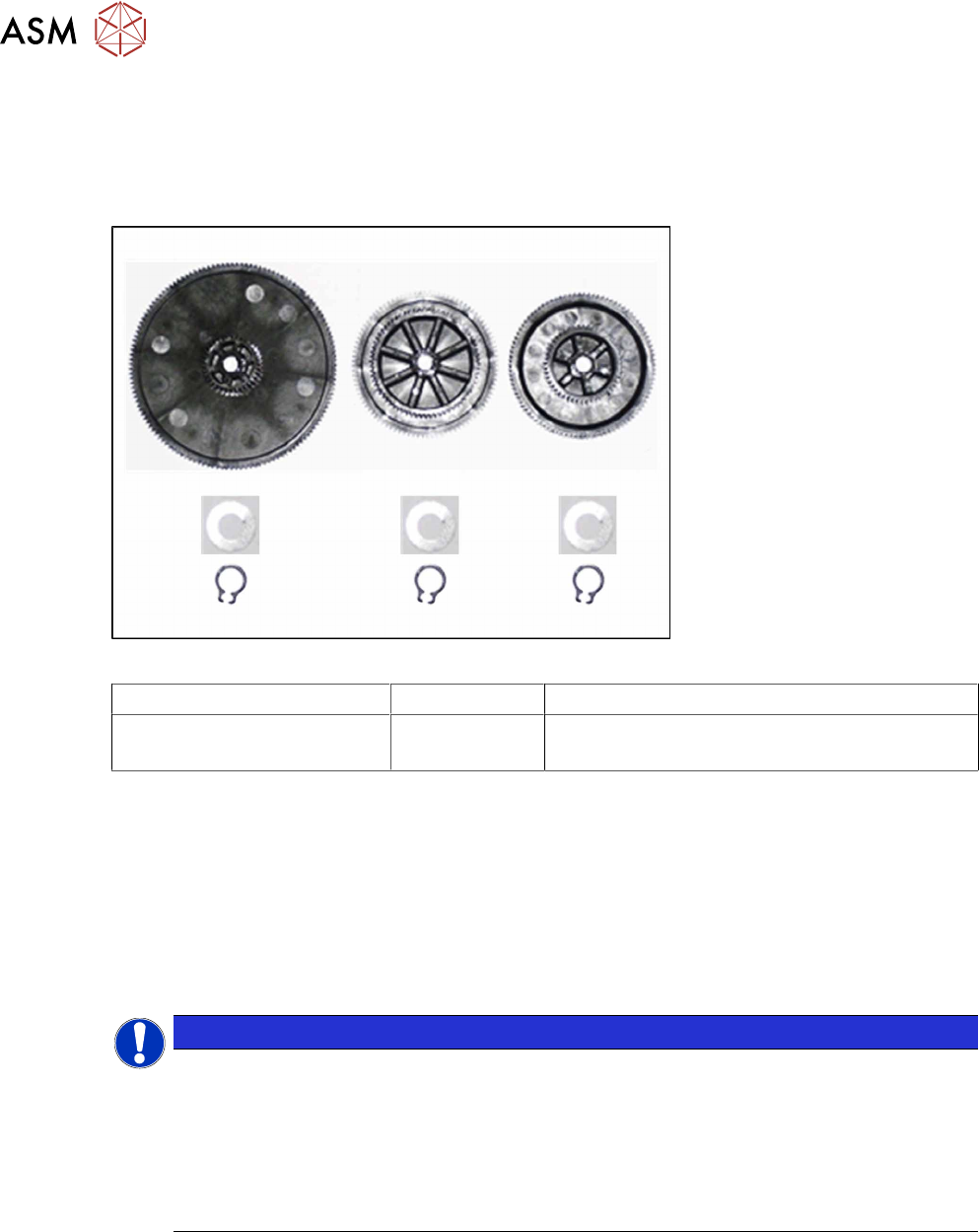

Fig.89: ETP drive unit tape X24 Smart
Feeder module Item no. Designation
SmartFeeder 24 - 104mmX 03154797-01
03121717-xx
ETP drive unit tape X24 Smart
Seal for gears X24-104
Tools and equipment required
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver 0.6Nm, size T8
●
Circlip pliers for outer rings 3-10 mm
●
Tweezers
●
Polylub GLY 801 (grease)
●
Ethanol
NOTICE
Avoiding gear damage
If your feeder module has a bronze shifted gear, this will need to be completely replaced
with a plastic shifted gear.
The use of bronze and plastic shifted gears at the same time is not permitted and can
cause damage to the gear unit.
Shifted gears may not be replaced one at a time. Always replace the complete shifted gear
assembly.
10 Repairs to SmartFeeder 24 - 104 mm X
10.7 Drives and gears
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 249
10.7.1.1 Removing shifted gears 1 and 2
► Remove the right side cover (see 10.3.2 "Remov-
ing/fitting the right front cover" [}231])
► Remove the circlip(1) on shifted gear1.
► Remove the washer (2) on shifted gear1
► Remove shifted gear1.(3)
► Remove the circlip(4) on shifted gear2.
► Remove the washer (5) on shifted gear2
► Remove shifted gear 2.(6)
► Clean the marked parts of the shifted gear hous-
ing (1) with a lint-free cloth and remove the
grease from the gear axes with a little ethanol.
► Slightly grease the gear axes (2,3) with Poly-
lubGLY801.
10.7.1.2 Fitting shifted gears 1 and 2
► Fit shifted gear2 with the smaller toothed wheel
pointing downwards onto the marked axis. (1)
Make sure that the smaller toothed wheel en-
gages down in shifted gear3. (2)
► Fit the washer into place.(3)
► Secure shifted gear 2 with a new circlip.(4)
