10 Repairs to SmartFeeder 24 - 104 mm X
10.7 Drives and gears
258 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

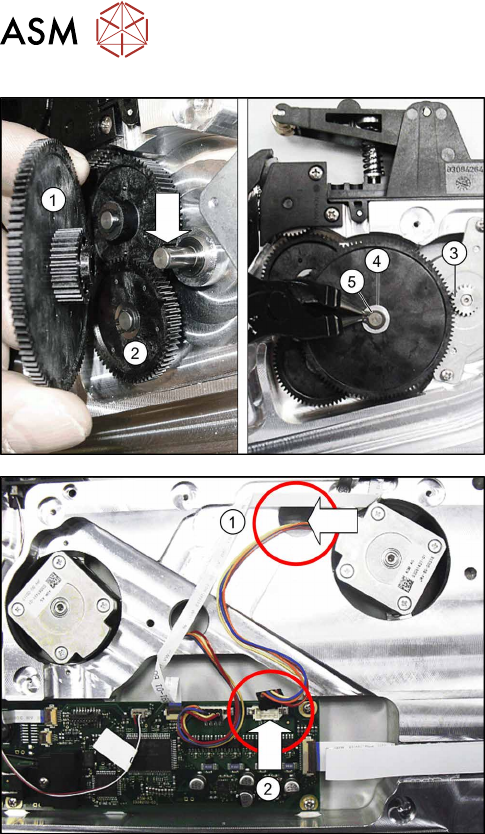

► Fit shifted gear1(1) with the smaller toothed
wheel pointing downwards, onto the axis.
Make sure that the smaller toothed wheel en-
gages down in shifted gear 2 . (2)
The large toothed wheel for the shifted gear will
engage above with the foil disposal drive pinion .
(3)
► Fit the washer into place.(4)
► Secure shifted gear 1 with a new circlip.(5)
► Guide the foil disposal drive cable through the
marked opening to the other side of the feeder
module.(1)
Make sure that the cable is on the right side of
the feeder module in the cable duct.
► Carefully place the feeder module on its right
side.
► Plug the connector for the foil disposal drive
cable into the marked connection on the control
board.(2)
► Fasten the left and the right side covers (see .
See also
2 10.3.1 "Removing/fitting the left side plate" [}230]
2 10.3.2 "Removing/fitting the right front cover" [}231]
10 Repairs to SmartFeeder 24 - 104 mm X
10.8 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 259
10.8 Foil rocker
10.8.1 Foil rocker assembly
Required spare part
Fig.93: Rocker X24Smart assy.
Feeder module Pos Item no. Designation
SmartFeeder 24mmX 1 03112580- xx Rocker X24Smart assy.
2 03115946- xx Axis /D4 foil rocker X24Smart
SmartFeeder 32mm X 1 03117224- xx Rocker X32Smart assy.
2 03117226- xx Axis /D4 foil rocker X32Smart
SmartFeeder 44mm X 1 03120852- xx Rocker X44Smart assy.
2 03120870- xx Axis /D4 foil rocker X44Smart
SmartFeeder 56mm X 1 03114910- xx Rocker X56Smart assy.
2 03120625- xx Axis /D4 foil rocker X56Smart
SmartFeeder 72mm X 1 03114275- xx Rocker X72Smart assy.
2 03116314- xx Axis /D4 foil rocker X72Smart
SmartFeeder 88mm X 1 03120979- xx Rocker X88Smart assy.
2 03120973- xx Axis /D4 foil rocker X88Smart
SmartFeeder 104mm X 1 03121137- xx Rocker X104Smart assy.
2 03121134- xx Axis /D4 foil rocker X104Smart
SmartFeeder
24 - 104 mm X
3 03092093- xx Pressure spring 0.7x7.5x35.8mm
4 03113174- xx Rocker housing X24-104
5 03033796- xx RF-SN75-2.5 x 6-9.8
6 03100381- xx Light barrier transmitter flat assy. X8S-
mart
7 03063591- xx Cable for light barrier transmitter X2x8
Required tools
●
Phillips screwdriver 0.6Nm
●
Flat-bladed screwdriver size 1
●
TORX screwdriver 0.6Nm, size T8
10 Repairs to SmartFeeder 24 - 104 mm X
10.8 Foil rocker
260 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
10.8.1.1 Foil rocker
Required spare part
Fig.94: Rocker X24Smart assy.
Feeder module Item no. Designation
SmartFeeder 24mmX 03112580- xx Rocker X24Smart assy.
Required tools
●
Flat-bladed screwdriver size 1
Removing the foil rocker
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Press the foil rocker slightly down, to relieve the
threaded axis of pressure from the spring.
► Use a flat-bladed screwdriver to loosen the
threaded axis, until the thread no longer en-
gages.
► Pull the threaded axis out of the hole.
► Remove the foil rocker up and out.
Make sure that the pressure spring does not get
lost.
Fitting the foil rocker assembly
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Insert the pressure spring into the holding device
on the underside of the foil rocker.
► Turn the foil rocker and pressure spring around
as shown.
► Insert the pressure spring into the catch shown in
the diagram.
