10 Repairs to SmartFeeder 24 - 104 mm X 10.8 Foil rocker 260 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 10.8.1.1 Foil rocker Required spare part Fig.94: Rocker X24Smart assy. Feeder module Item no. Designat…
10 Repairs to SmartFeeder 24 - 104 mm X
10.8 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 259
10.8 Foil rocker
10.8.1 Foil rocker assembly
Required spare part

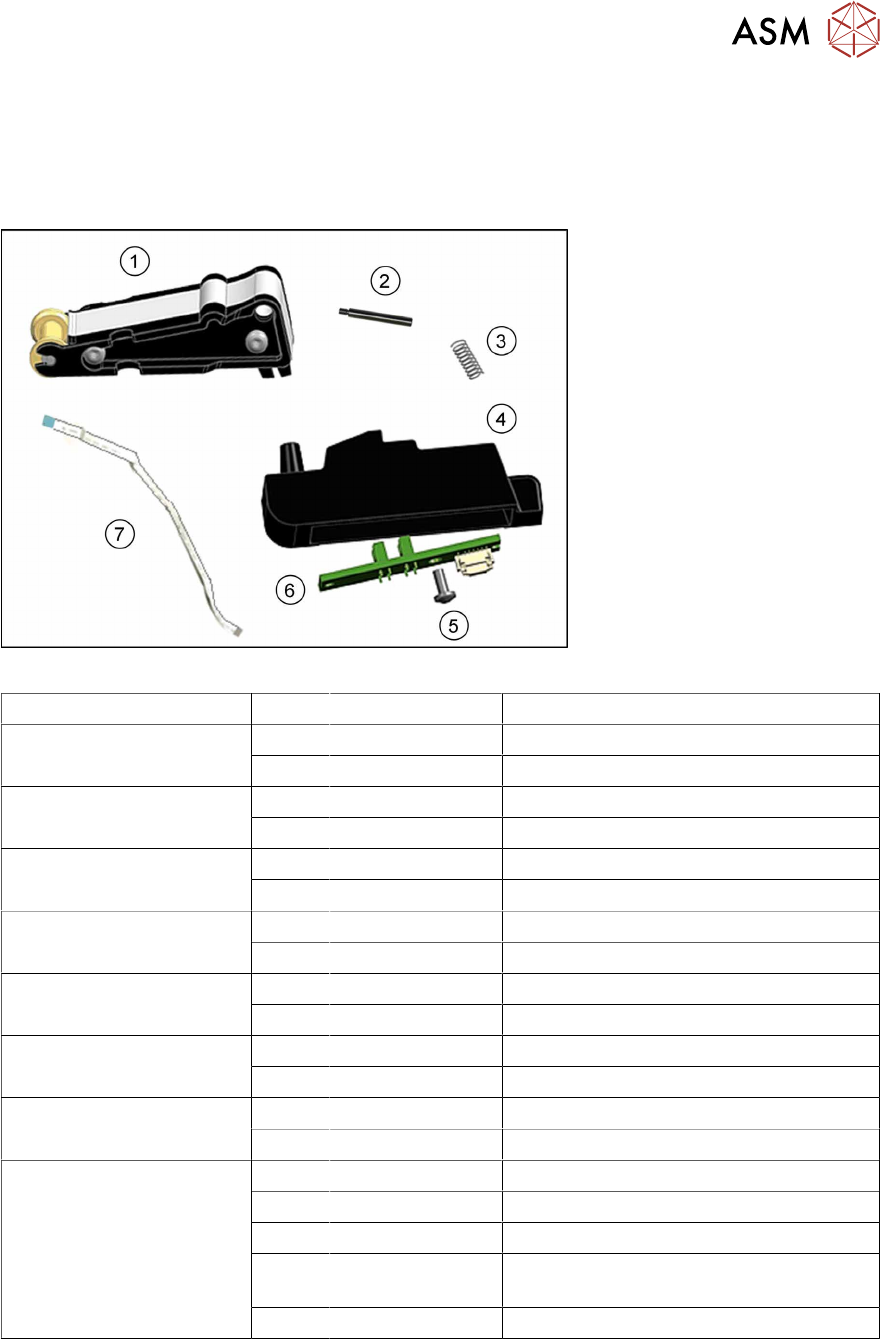

Fig.93: Rocker X24Smart assy.
Feeder module Pos Item no. Designation
SmartFeeder 24mmX 1 03112580- xx Rocker X24Smart assy.
2 03115946- xx Axis /D4 foil rocker X24Smart
SmartFeeder 32mm X 1 03117224- xx Rocker X32Smart assy.
2 03117226- xx Axis /D4 foil rocker X32Smart
SmartFeeder 44mm X 1 03120852- xx Rocker X44Smart assy.
2 03120870- xx Axis /D4 foil rocker X44Smart
SmartFeeder 56mm X 1 03114910- xx Rocker X56Smart assy.
2 03120625- xx Axis /D4 foil rocker X56Smart
SmartFeeder 72mm X 1 03114275- xx Rocker X72Smart assy.
2 03116314- xx Axis /D4 foil rocker X72Smart
SmartFeeder 88mm X 1 03120979- xx Rocker X88Smart assy.
2 03120973- xx Axis /D4 foil rocker X88Smart
SmartFeeder 104mm X 1 03121137- xx Rocker X104Smart assy.
2 03121134- xx Axis /D4 foil rocker X104Smart
SmartFeeder
24 - 104 mm X
3 03092093- xx Pressure spring 0.7x7.5x35.8mm
4 03113174- xx Rocker housing X24-104
5 03033796- xx RF-SN75-2.5 x 6-9.8
6 03100381- xx Light barrier transmitter flat assy. X8S-
mart
7 03063591- xx Cable for light barrier transmitter X2x8
Required tools
●
Phillips screwdriver 0.6Nm
●
Flat-bladed screwdriver size 1
●
TORX screwdriver 0.6Nm, size T8
10 Repairs to SmartFeeder 24 - 104 mm X
10.8 Foil rocker
260 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
10.8.1.1 Foil rocker
Required spare part

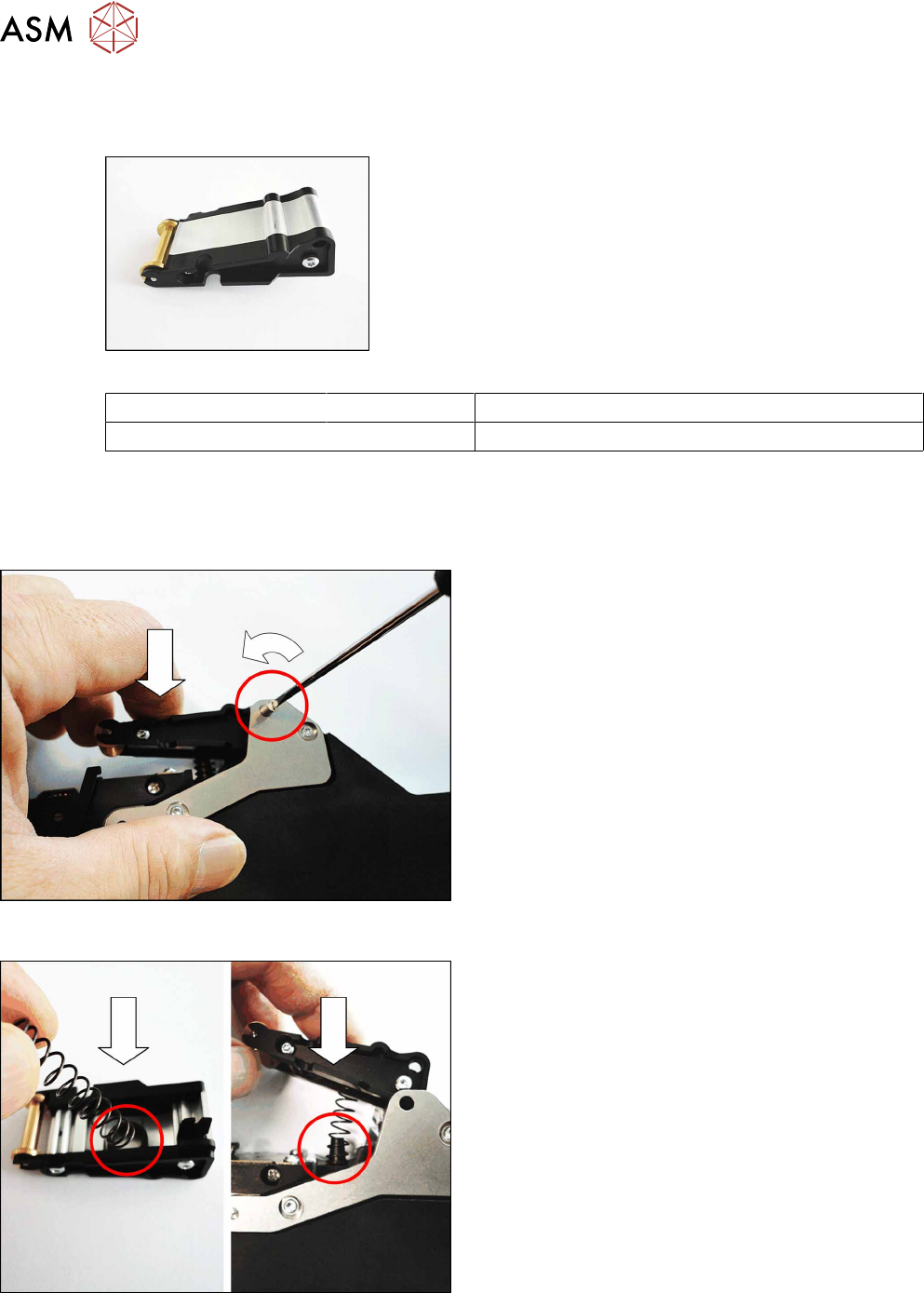

Fig.94: Rocker X24Smart assy.
Feeder module Item no. Designation
SmartFeeder 24mmX 03112580- xx Rocker X24Smart assy.
Required tools
●
Flat-bladed screwdriver size 1
Removing the foil rocker
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Press the foil rocker slightly down, to relieve the
threaded axis of pressure from the spring.
► Use a flat-bladed screwdriver to loosen the
threaded axis, until the thread no longer en-
gages.
► Pull the threaded axis out of the hole.
► Remove the foil rocker up and out.
Make sure that the pressure spring does not get
lost.
Fitting the foil rocker assembly
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Insert the pressure spring into the holding device
on the underside of the foil rocker.
► Turn the foil rocker and pressure spring around
as shown.
► Insert the pressure spring into the catch shown in
the diagram.
10 Repairs to SmartFeeder 24 - 104 mm X
10.8 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 261

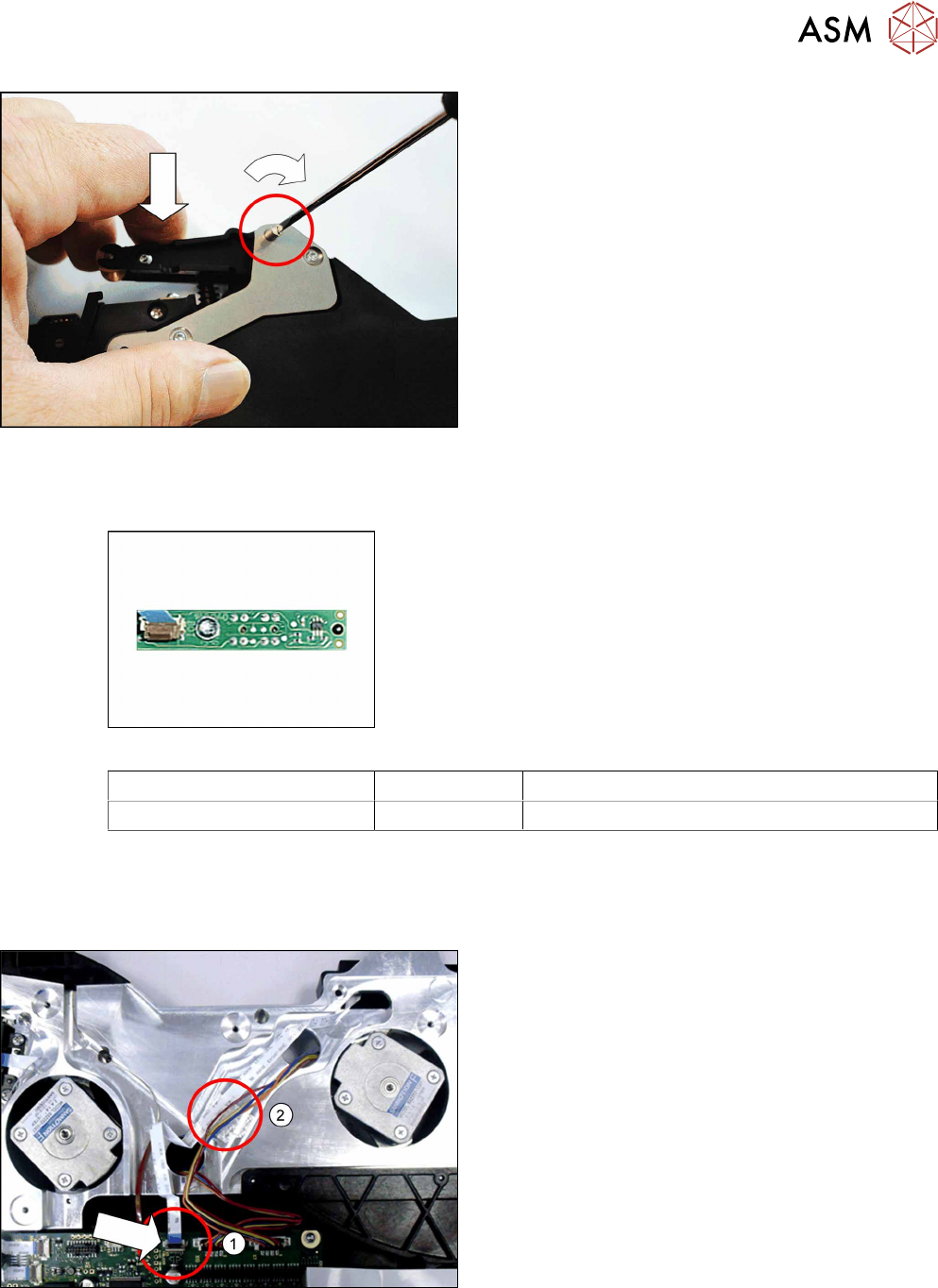

► Press the foil rocker slightly down, to give access
to the hole for the threaded axis.
► Insert the threaded axis as far as the stop into the
hole.
► Fasten the threaded axis with a flat-bladed
screwdriver and 0.6 Nm.
10.8.1.2 Light barrier transmitter
Required spare part
Fig.95: Light barrier transmitter
Feeder module Item no. Designation
SmartFeeder 24 - 104mmX 03100381- xx Light barrier transmitter flat assy. X8Smart
Required tools
●
TORX screwdriver 0.6Nm, size T8
Removing the light barrier transmitter
► Remove the left side plate (see 10.3.1 "Remov-
ing/fitting the left side plate" [}230]).
► Remove the foil rocker (see 10.8.1.1.1 "Remov-
ing the foil rocker" [}260]LINK).
► Swing the holder on the flat ribbon connection X5
of the control board up and pull out the flat-ribbon
cable. (1).
► Pull the flat ribbon cable off the double-sided ad-
hesive tape at the marked point. (2)
