10 Repairs to SmartFeeder 24 - 104 mm X 10.8 Foil rocker 266 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 ► Make sure afterwards that the roller be easily moved.
10 Repairs to SmartFeeder 24 - 104 mm X
10.8 Foil rocker
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 265

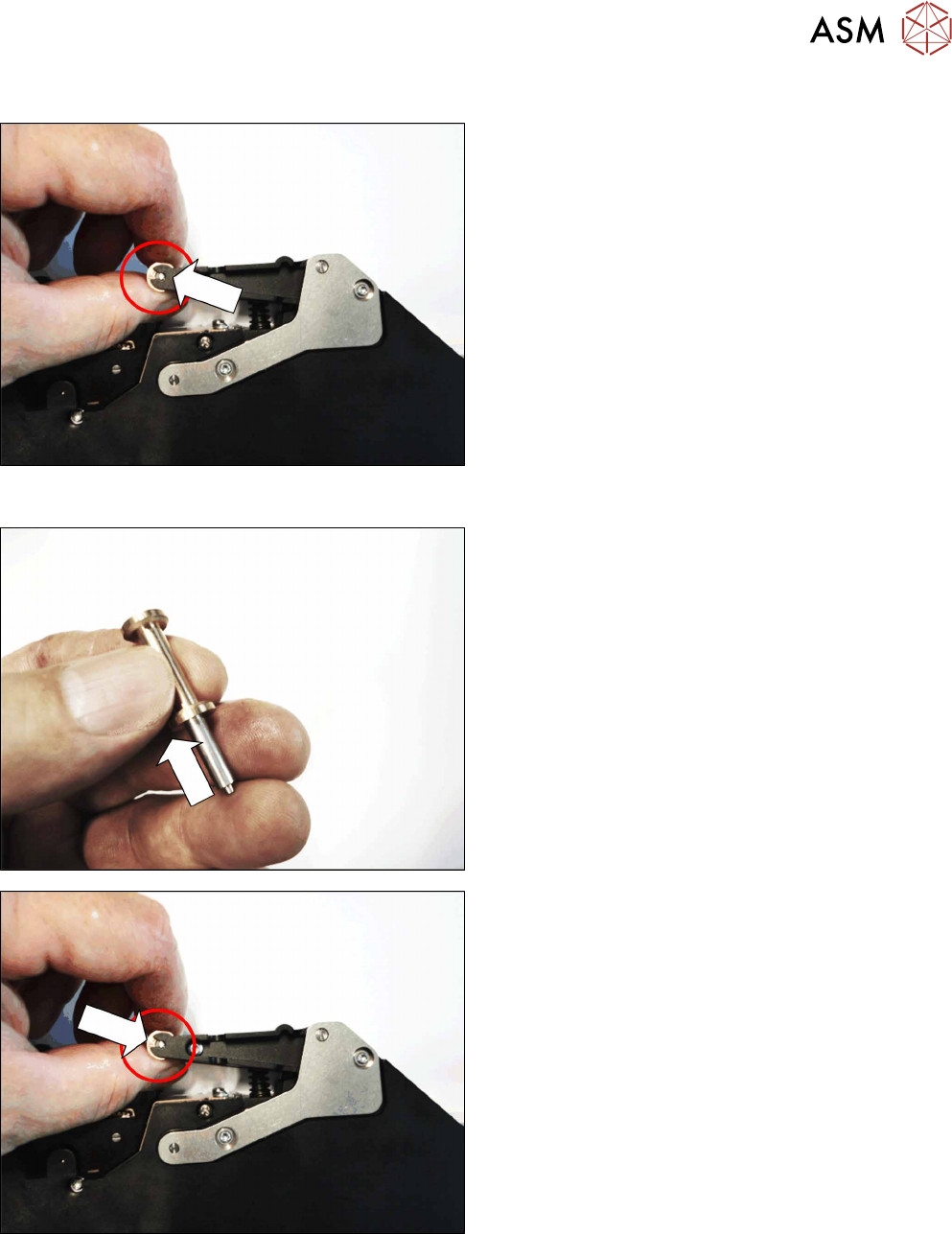

Removing the roller/roller axis
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Pull the roller out of the rocker in the direction of
the arrow, together with the roller axis.
Make sure that the roller axis is not lost.
Fitting the roller/roller axis
► Push the roller axis into the roller.
► Press both ends of the roller axis as far as the
stop into the holders on the rocker.
10 Repairs to SmartFeeder 24 - 104 mm X
10.8 Foil rocker
266 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

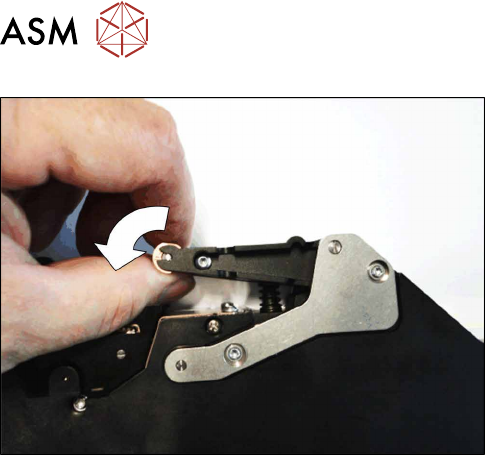

► Make sure afterwards that the roller be easily
moved.
10 Repairs to SmartFeeder 24 - 104 mm X
10.9 Rocker
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 267
10.9 Rocker
10.9.1 Rocker assembly
Required spare part

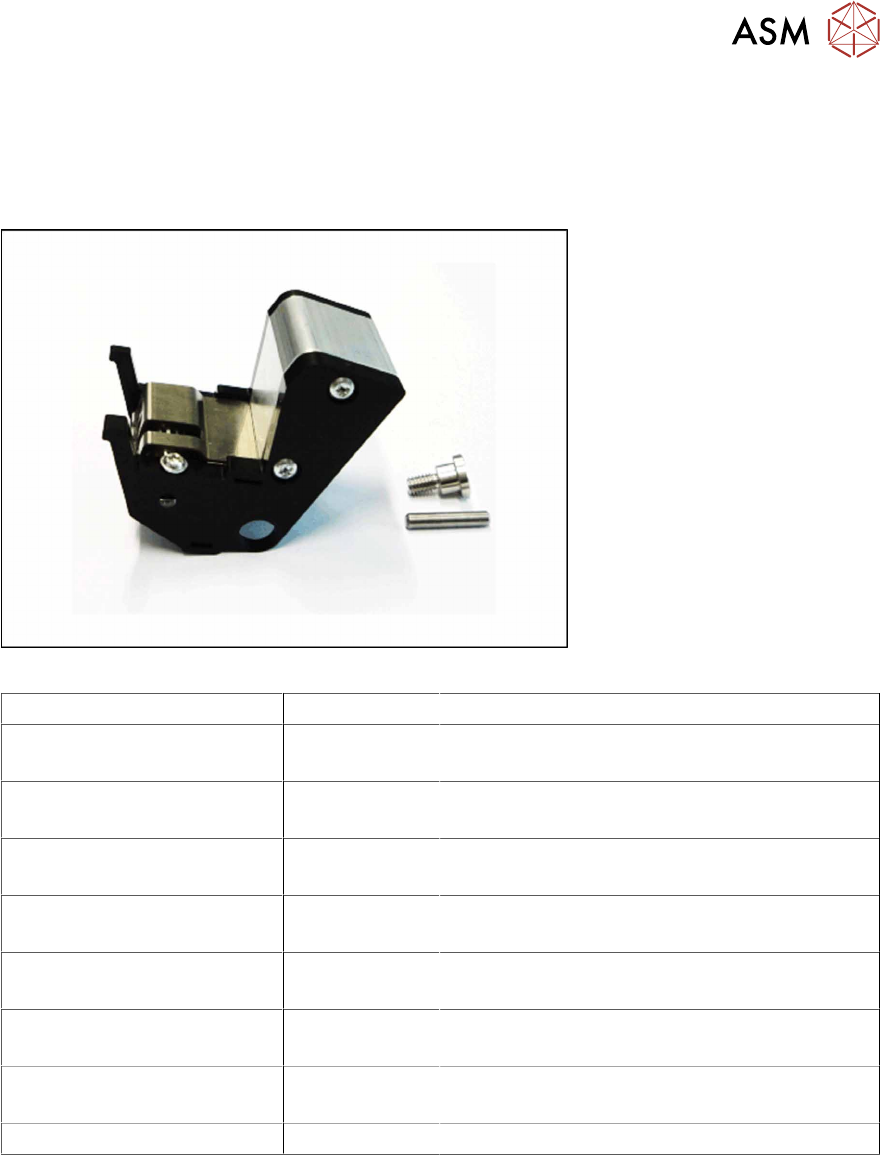

Fig.97: Rocker X24Smart assy.
Feeder module Item no. Designation
SmartFeeder 24mmX 03113047Sxx
03118789-xx
Rocker X24Smart assy.
Axis rocker X24Smart
SmartFeeder 32mm X 03116458Sxx
03118862-xx
Rocker X32Smart assy.
Axis rocker X32Smart
SmartFeeder 44mm X 03120765Sxx
03120771-xx
Rocker X44Smart assy.
Axis rocker X44Smart
SmartFeeder 56mm X 03114258Sxx
03120575-xx
Rocker X56Smart assy.
Axis rocker X56Smart
SmartFeeder 72mm X 03109630Sxx
03118863-xx
Rocker X72Smart assy.
Axis rocker X72Smart
SmartFeeder 88mm X 03120939Sxx
03120912-xx
Rocker X88Smart assy.
Axis rocker X88Smart
SmartFeeder 104mmX 03121119Sxx
03121088-xx
Rocker X104Smart assy.
Axis rocker X104Smart
SmartFeeder 24 - 104mmX 03118809-xx Collar screw, rocker X24-104
Required tools
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver size T8, 0.6Nm
●
Flat-bladed screwdriver size 2
●
Tweezers
●
Optional split pin punch size 1.4
