10 Repairs to SmartFeeder 24 - 104 mm X 10.9 Rocker Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 273 ► Loosen the screw which fixes the roller axis. Use a size T8 TORX screwdriver for this. ► Remove the roller…
10 Repairs to SmartFeeder 24 - 104 mm X
10.9 Rocker
272 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

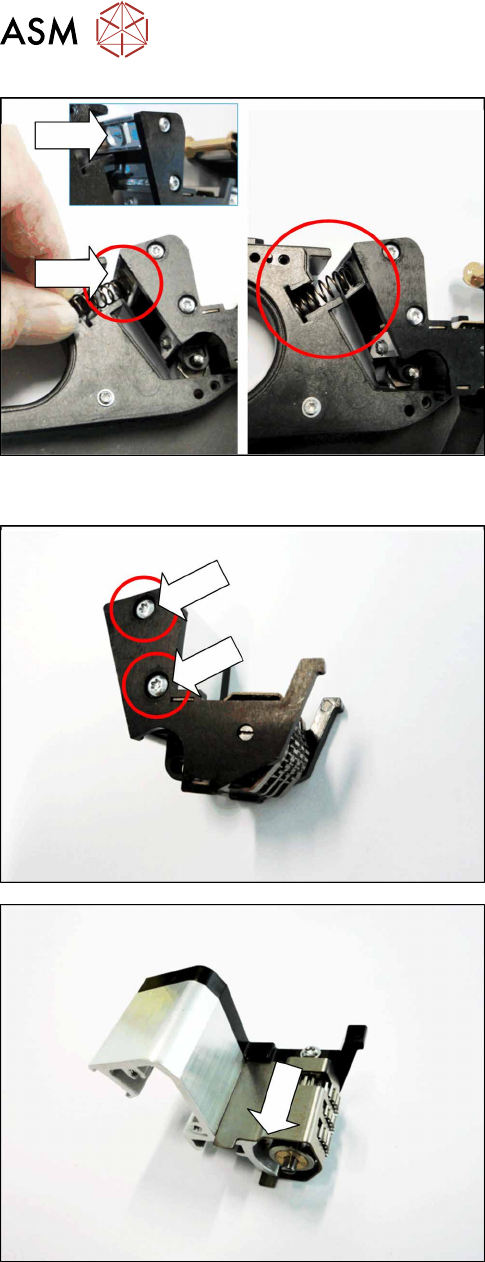

► Insert the new pressure spring with the rear part
into the (new) spring holder.
► Push the pressure spring then with the front part
first into the fitting on the rocker.
► Then push the rear part of the pressure spring
with spring holder sideways into the feeder mod-
ule base unit.
► Fasten the right rear side wall (see 10.3.3 "Rear
side wall on the right" [}231])
10.9.2.2 Replacing the tamp wheel, wiper and roller axis
► Remove the rocker (see 10.9.1.1 "Removing the
rocker" [}268]).
► Remove the two screws marked in the diagram.
Use a size T8 TORX screwdriver for this.
► Remove the side section of the rocker.
► Push the tamp wheel together with the wiper in
the direction of the arrow and off the roller axis.
10 Repairs to SmartFeeder 24 - 104 mm X
10.9 Rocker
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 273

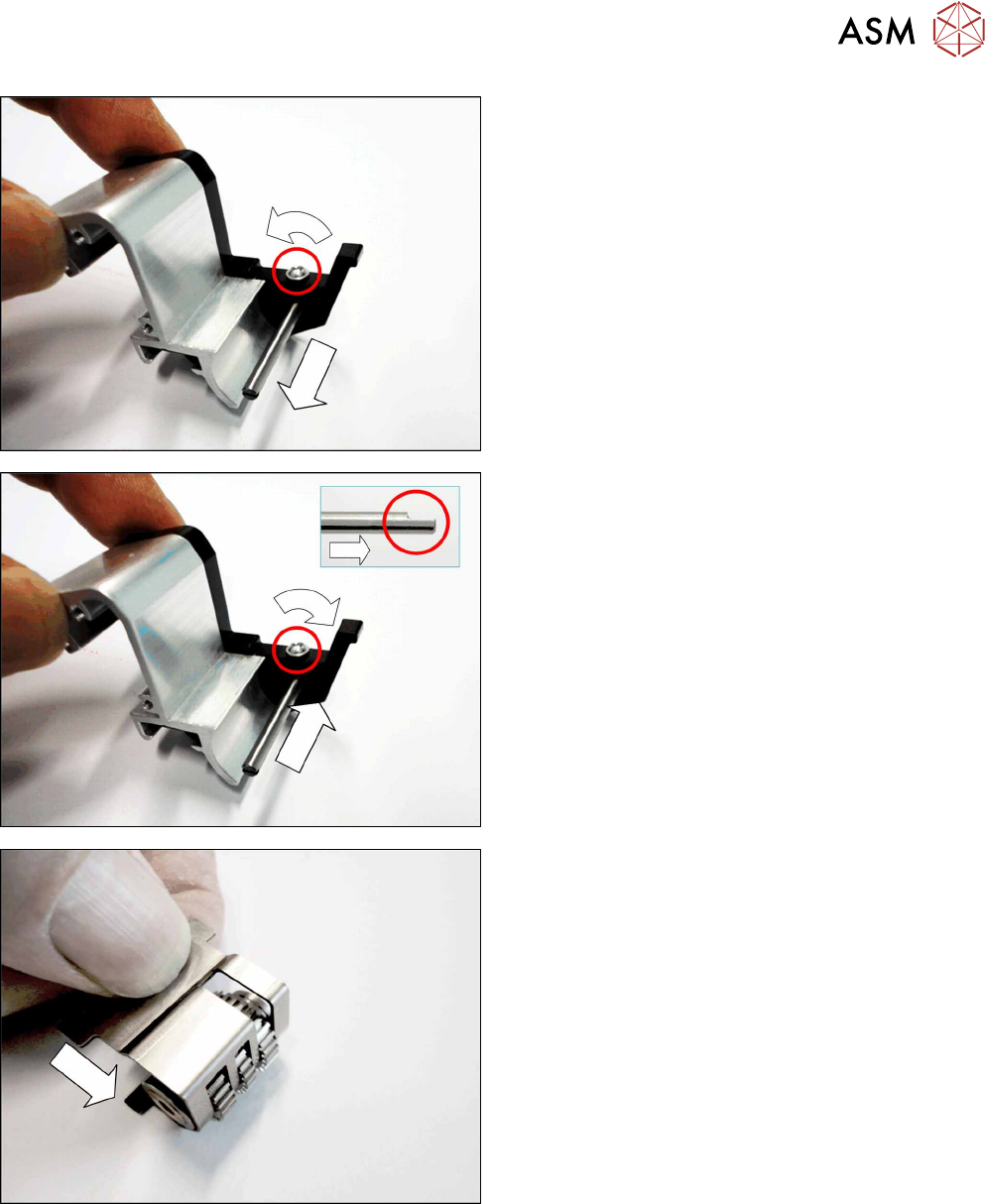

► Loosen the screw which fixes the roller axis.
Use a size T8 TORX screwdriver for this.
► Remove the roller axis.
► Insert the (new) rocker axis into the hole in the
rocker side section, with the flattened side first.
Make sure that the flattened part of the rocker
axis is on the top.
► Fix the rocker axis with the screw marked in the
diagram.
Use a size T8 TORX screwdriver and 0.6 Nm for
this.
► Insert the (new) tamp wheel, as shown, into the
(new) wiper.
10 Repairs to SmartFeeder 24 - 104 mm X
10.9 Rocker
274 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

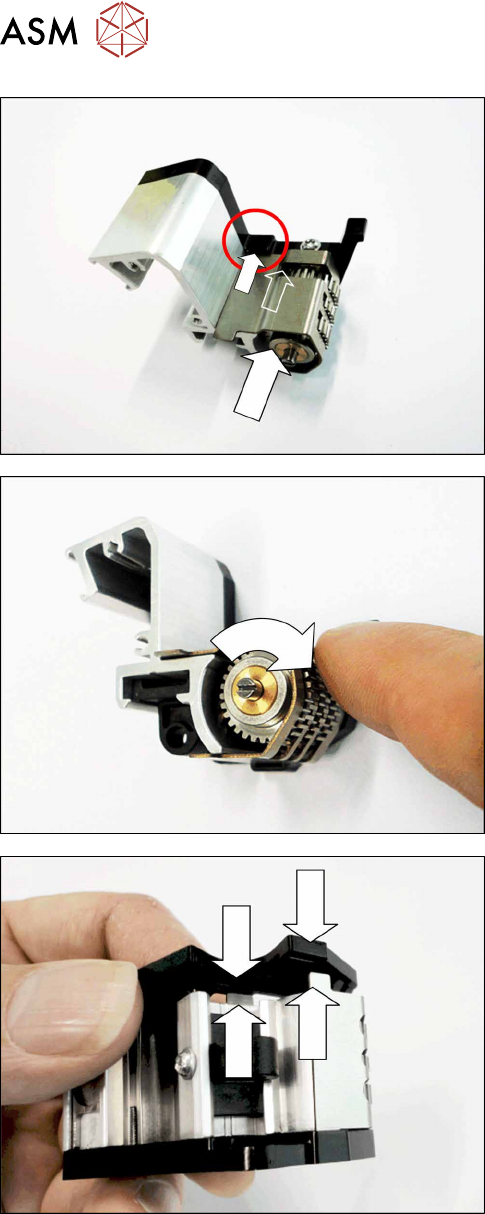

► Push the tamp wheel and wiper onto the rocker
axis.
Insert the two catches on the wiper(top and bot-
tom) as far as the stop into the two slits in the
side section of the rocker.
► Check the rotary direction of the tamp wheel.
If the tamp wheel is fitted on the axis, it can only
be turned in one direction. The correct direction
of rotation on the wiper is downwards.
If necessary, remove the tamp wheel and place it
back on the rocker axis, the other way around.
► Push the side section of the rocker, as shown,
onto the wiper.
Insert the two catches on the wiper into the two
slits in the side section of the rocker.
