10 Repairs to SmartFeeder 24 - 104 mm X
10.9 Rocker
274 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
► Push the tamp wheel and wiper onto the rocker
axis.
Insert the two catches on the wiper(top and bot-
tom) as far as the stop into the two slits in the
side section of the rocker.
► Check the rotary direction of the tamp wheel.
If the tamp wheel is fitted on the axis, it can only
be turned in one direction. The correct direction
of rotation on the wiper is downwards.
If necessary, remove the tamp wheel and place it
back on the rocker axis, the other way around.
► Push the side section of the rocker, as shown,
onto the wiper.
Insert the two catches on the wiper into the two
slits in the side section of the rocker.
10 Repairs to SmartFeeder 24 - 104 mm X
10.10 Foil disposal flap
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 275
► Fasten the side section of the roller with the two
screws marked in the diagram.
Use a T8 TORX screwdriver with 0.6 Nm for this.
► Fit the rocker (see 10.9.1.2 "Fitting the
rocker" [}269]).
10.10 Foil disposal flap
Required spare part
Fig.99: Foil disposal flap assy. and axis flap/foil container
Feeder module Item no. Designation
SmartFeeder 24mm X 03115925- xx
03042171-xx
Foil disposal flap assembly X24Smart
Axis flap /foil container X16-X24
SmartFeeder 32mm X 03120759Sxx
03042484-xx
Foil disposal flap assembly X24Smart
Axis flap /foil container X16-X24
SmartFeeder 44mm X 03120624Sxx
03043382-xx
Foil disposal flap assembly X24Smart
Axis flap /foil container X16-X24
SmartFeeder 56mm X 03120624Sxx
03043382-01
Foil disposal flap assembly X24Smart
Axis flap /foil container X16-X24
SmartFeeder 72mm X 03116832Sxx
03043399-xx
Foil disposal flap assembly X24Smart
Axis flap /foil container X16-X24
SmartFeeder 88mm X 03121026Sxx
03042230-xx
Foil disposal flap assembly X24Smart
Axis flap /foil container X16-X24
SmartFeeder 104mm X 03121156Sxx
03121095-xx
Foil disposal flap assembly X24Smart
Axis flap /foil container X16-X24
Required tools
●
Allen key size 3, 0.6Nm
10 Repairs to SmartFeeder 24 - 104 mm X
10.11 Foil disposal blade
276 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

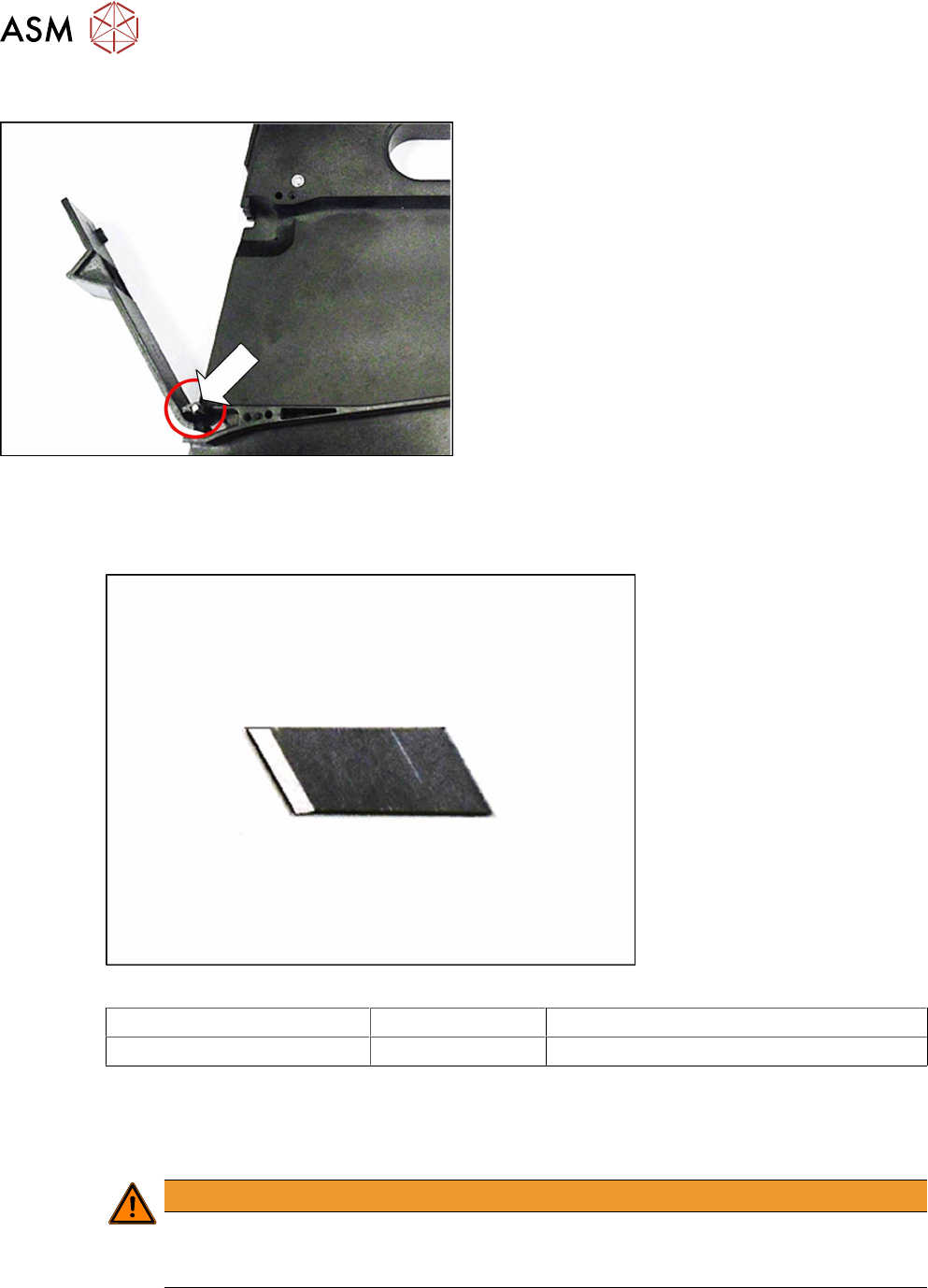

10.10.1 Replacing the flap
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Remove the right rear side wall (see 10.3.3 "Rear
side wall on the right" [}231])
► Pull the flap straight up and off the spindle.
If needed, you can now take the spindle out of
the base unit and replace it with a new one.
► Push the new flap, as shown, onto the spindle.
► Fit the rear, right side wall (see 10.3.3 "Rear side
wall on the right" [}231]).
During assembly, make sure that the spindle is
correctly inserted into the hole in the side wall.
10.11 Foil disposal blade
Required spare part
Fig.100: Cutter, partition wall
Feeder module Item no. Designation
SmartFeeder 24-104 mm X 0341370Sxx Cutter, partition wall
Required tools
●
TORX screwdriver 0.6Nm, size T8
●
Tweezers
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
