10.13.3 Replacing spare parts on the handle
Required spare parts

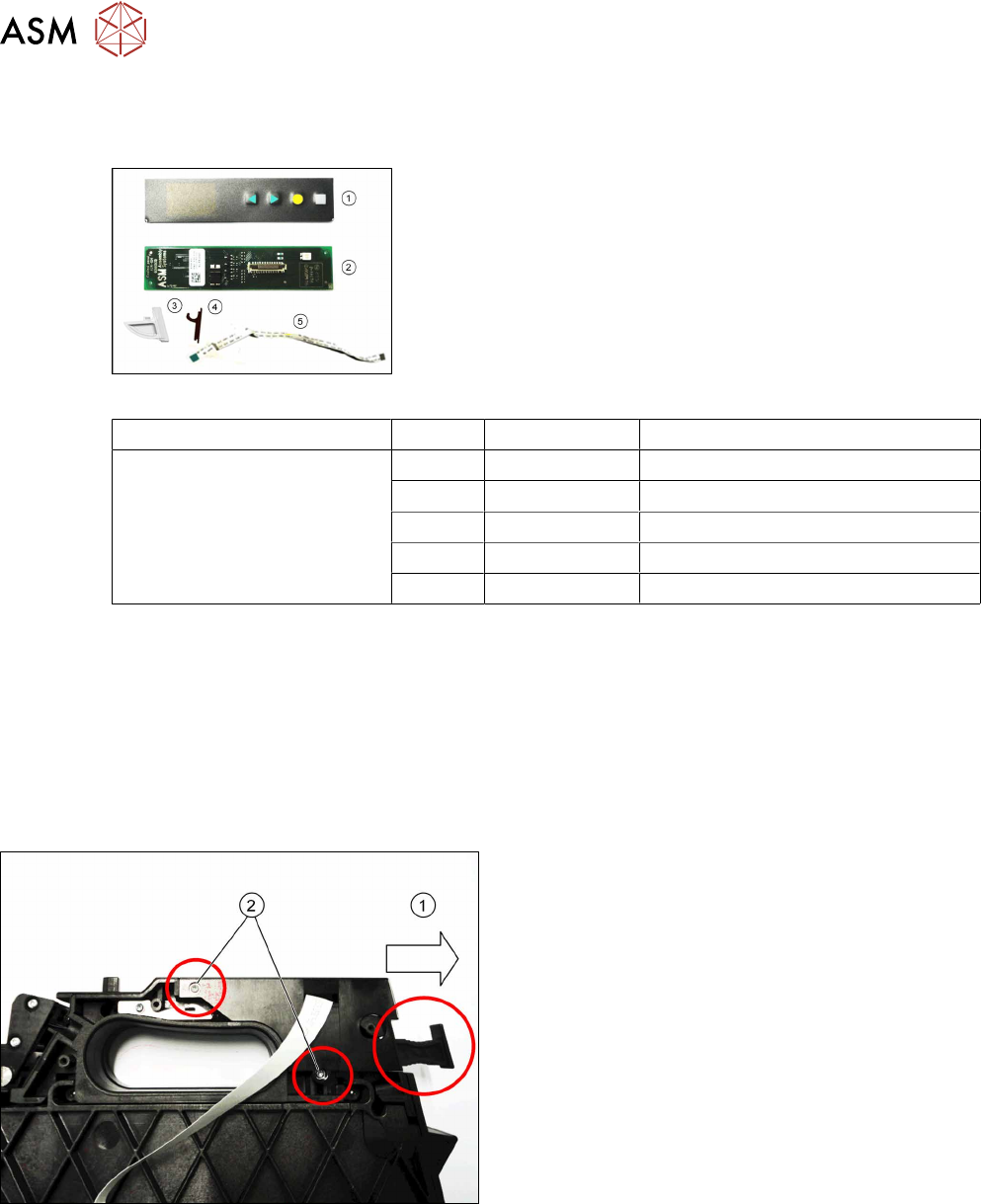

Fig.103: Control panel, board and control panel window
Feeder module Pos Item no. Designation
SmartFeeder 24–104 mm X 1 03110042-xx Control panel assy. X24-104
2 03110763-xx PCB control panel placed X24-104
3 03110496-xx Window for control panel
4 03116164-xx Window control panel black X24-104
5 03063592-xx Cable control panel X2x8
Required tools
●
Phillips screwdriver 0.6Nm
●
TORX screwdriver size T8, 0.6Nm
10.13.3.1 Removing the control panel, board and window for the control panel
► Carefully place the feeder module with the right side down on a stable, level and clean sur-
face.
► Remove the left side plate (see 10.3.1 "Removing/fitting the left side plate" [}230]).
► Release the removal handle lock.(1)
► Remove the two screws marked in the diagram.
Use a size T8 TORX screwdriver for this.
► Lift the cover plate a little to the side, to give you
access to the parts below.
10 Repairs to SmartFeeder 24 - 104 mm X
10.13 Handle assembly with control panel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 283
► Pull the control panel with its board straight up
and out of the handle.(1)
► If you want to replace it, lift the control panel win-
dow up and out of the handle.(2)
► Open the bar on the flat ribbon connection on the
control board.(1)
► Unplug the flat ribbon cable form the connec-
tion.(2)
10.13.3.2 Fitting the control panel, board and control panel window
► Insert the end of the flat ribbon cable (with the
blue side pointing upwards as shown) up to the
stop in the flat ribbon connection shown on the
board. (1)
► Close the connection and make sure that the
cable it firmly fitted.(2)
10 Repairs to SmartFeeder 24 - 104 mm X
10.13 Handle assembly with control panel
284 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
► Place the control panel(1) as shown in the dia-
gram onto the board(2).
► Insert the control panel and board vertically into
the handle, as shown in the diagram. (1)
► Insert the (new) control panel window from above
into the handle.(2)
► Release the removal handle lock, if neces-
sary.(1)
► Push the cover plate on the flat ribbon cable
along the handle, until you can see the holes for
the screws through the cover plate.
► Fasten the two screws marked in the diagram.
Use a size T8 TORX screwdriver with 0.6 Nm for
this.
► Fix the left side plate into place. (see 10.3.1 "Re-
moving/fitting the left side plate" [}230]).
