6 Repairs to SmartFeeder 4 mm X
6.3 Side Covers
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 31
6.3.1 Removing the Left Side Cover
NOTICE
Avoiding damaging the board
Before you remove the left side cover, make sure that the right side cover has been com-
pletely fixed in place with all screws. If not, the threaded bolts could be damaged on the
board.
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Loosen the screws as shown in the diagram.
You need a TORX screwdriver for the screws marked
A.
You need a Phillips screwdriver for the screws marked
B, Cand D.
The side cover is only inserted in the upper part of the
frame in the area marked red.
► Pull the side cover down and out.
6.3.2 Fitting the Left Side Cover
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Push the side cover (area marked in red) under
the rail as shown, as far as the stop.
► Fix the screws as shown in the diagram. Begin
with the inner screws and work towards the out-
side.
You need a Phillips screwdriver with 0.9 Nm for the
screws marked B, Cand D.
You need a TORX screwdriver with 0.6 Nm for the
screws marked A.
6 Repairs to SmartFeeder 4 mm X
6.3 Side Covers
32 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

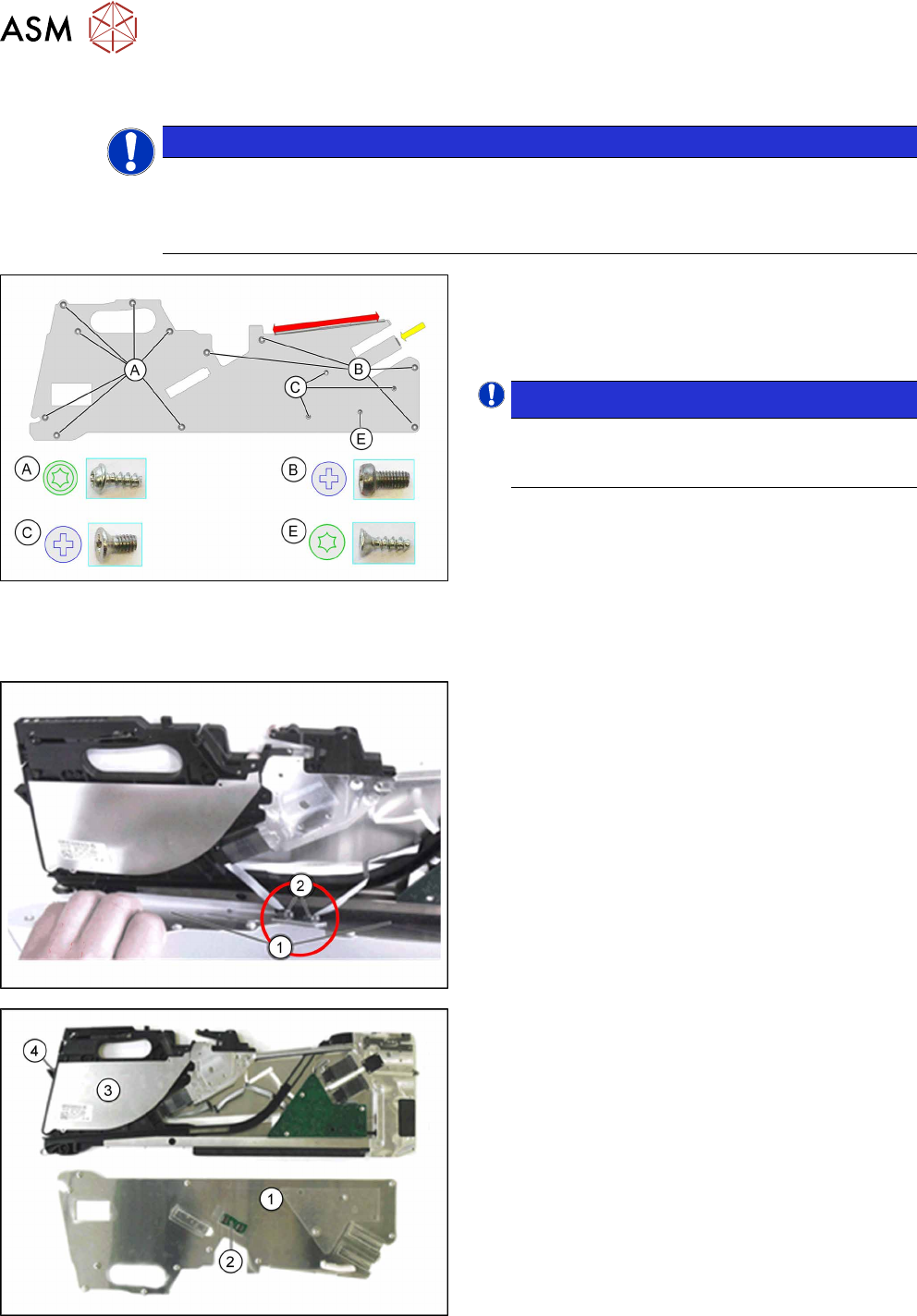

6.3.3 Removing the Right Side Cover
NOTICE
Avoiding damaging the board
Before you remove the right side cover, make sure that the left side cover has been com-
pletely fixed in place with all screws. If not, the threaded bolts could be damaged on the
board.
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► First loosen the screw marked D. This screw
fixes the EDIF connector on the main board.
 NOTICE!
To avoid damaging the connector, observe the
installation guide after this description for the
right side cover with the relevant torques!
.
► Loosen the screws marked A and E with a TORX
screwdriver.
► Loosen the screws marked B and C with a
Philips screwdriver.
The side cover is only inserted in the upper part of the
frame in the area marked red.
► Pull the side cover down and out.
► Carefully lift the side cover (1).
In the center of the inside, you will find the "motor
cable coupling board", to which two cables are con-
nected.
► Carefully pull the two connectors (2) out of the
connections.
Place the side cover (1) with the board (2) facing up-
wards on a clean and even surface.
Note:
Please note that the foil container cover (3) and the
foil container flap (4) are only clipped or placed on!
Remove these two parts before you change the posi-
tion of the feeder module.
A description of how to remove the cover and the foil
container flap can be found in section 6.12 "Flap/drip
tray for cover foil" [}66].
6 Repairs to SmartFeeder 4 mm X
6.3 Side Covers
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 33

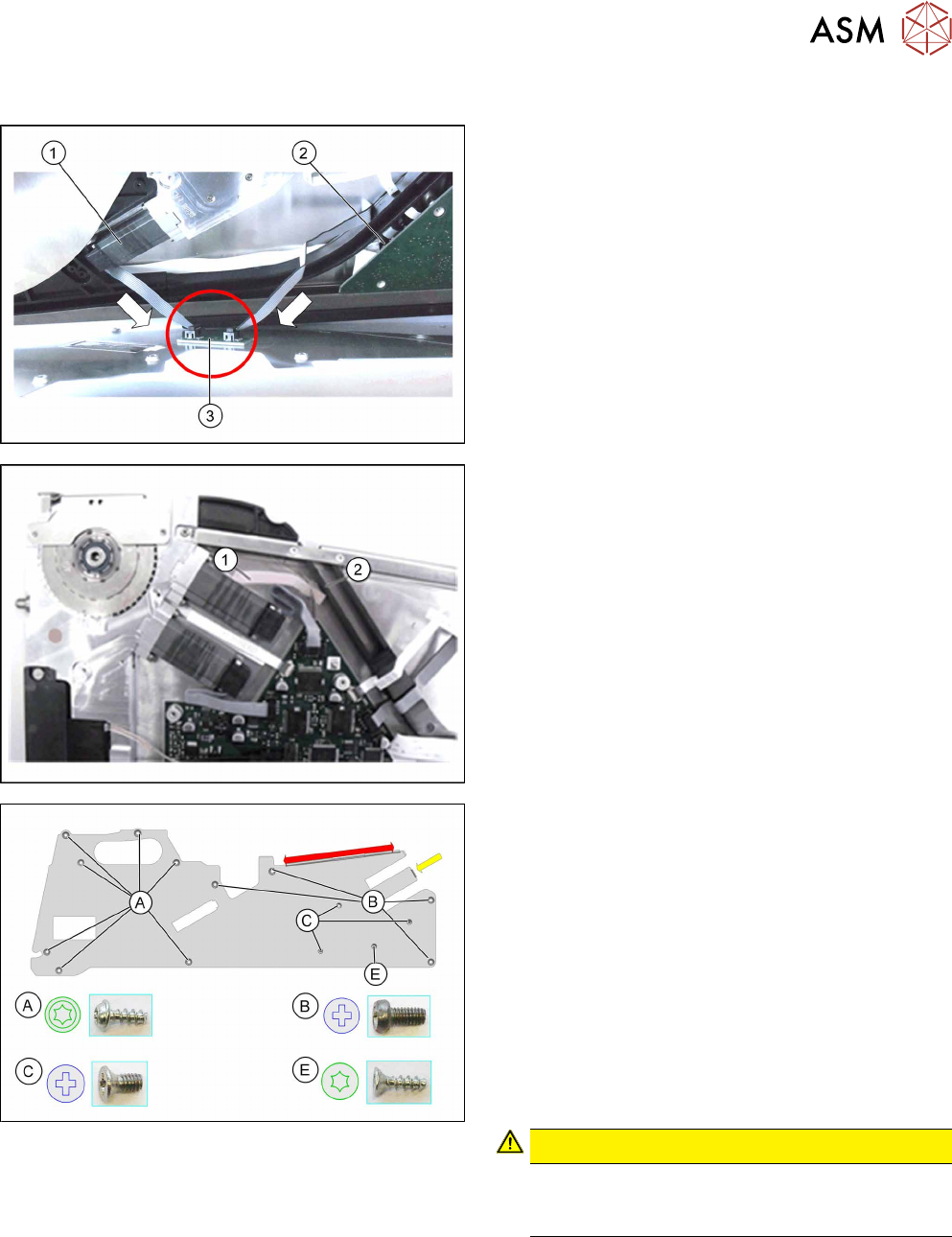

6.3.4 Fitting the Right Side Cover
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Connect the motor connector for the foil disposal
(1) to the left connection for the coupling board
(3).
► Plug the connector from the control board (2) into
the right connection on the coupling board (3).
Observe the correct position of the foam seal (1).
Make sure that the foam seal does not get trapped in
the empty tape duct (2) or protrude into it!
To check the correct position of the foam seal, remove
the left side cover, as shown (after fitting the right side
cover), and correct the position of the foam rubber if
necessary.
► Insert the side cover (in the area marked red), as
shown, under the rail, as far as the stop.
► Insert the side cover on the right side, in the area
marked yellow under the encoder.
► Fasten the screws as shown in the diagram. Be-
gin with the inner screws (C) and work towards
the outside (B + A).
The screw marked Eshould be fastened last.
You need a Phillips screwdriver with 0.6 Nm for the
screws marked B and C.
You need a TORX screwdriver with 0.6 Nm for the
screws marked A.
Also use a TORX screwdriver for the screw marked D.
 CAUTION!
Tighten screw E no more than hand-tight, other-
wise the screw fixtures inside the feeder module
could be damaged or broken.
.
