6 Repairs to SmartFeeder 4 mm X
6.5 Pickup window
40 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
6.5.3 Removing the actuator

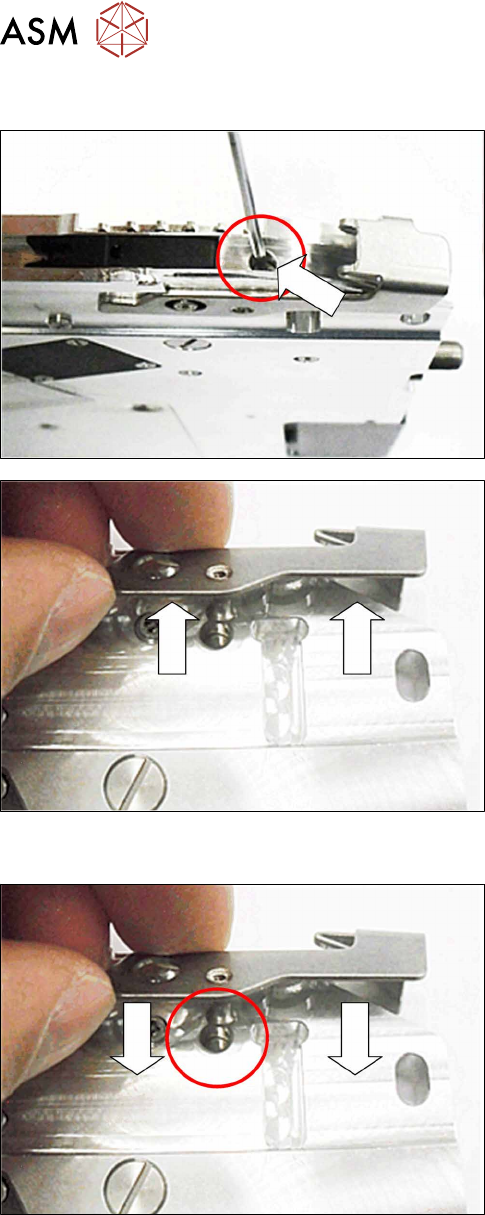

► Remove the pickup window 6.5.1 "Removing the
Pickup Window" [}38]).
► Remove the fitting screw shown in the diagram.
Use a 1.5mm Allen key.
► Pull the actuator on the righthand side of the
feeder module out of the base unit.
6.5.4 Fitting the actuator
► Push the actuator on the righthand side of the
feeder module into the base unit as shown.
During this, push the actuator axis into the hole
shown in the diagram.
6 Repairs to SmartFeeder 4 mm X
6.6 Splice sensor
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 41
► Fasten the actuator axis with a fitting screw
Use a 1.5mm Allen key for this.
► Fasten the pickup window (see 6.5.2 "Fitting the
Pickup Window" [}38]).
6.6 Splice sensor
NOTICE
No splice sensor for the SmartFeeder 4 mm X
There is currently no splice sensor available for the SmartFeeder 4 mm X.
6.7 Drives
6.7.1 Foil motor
Required spare part

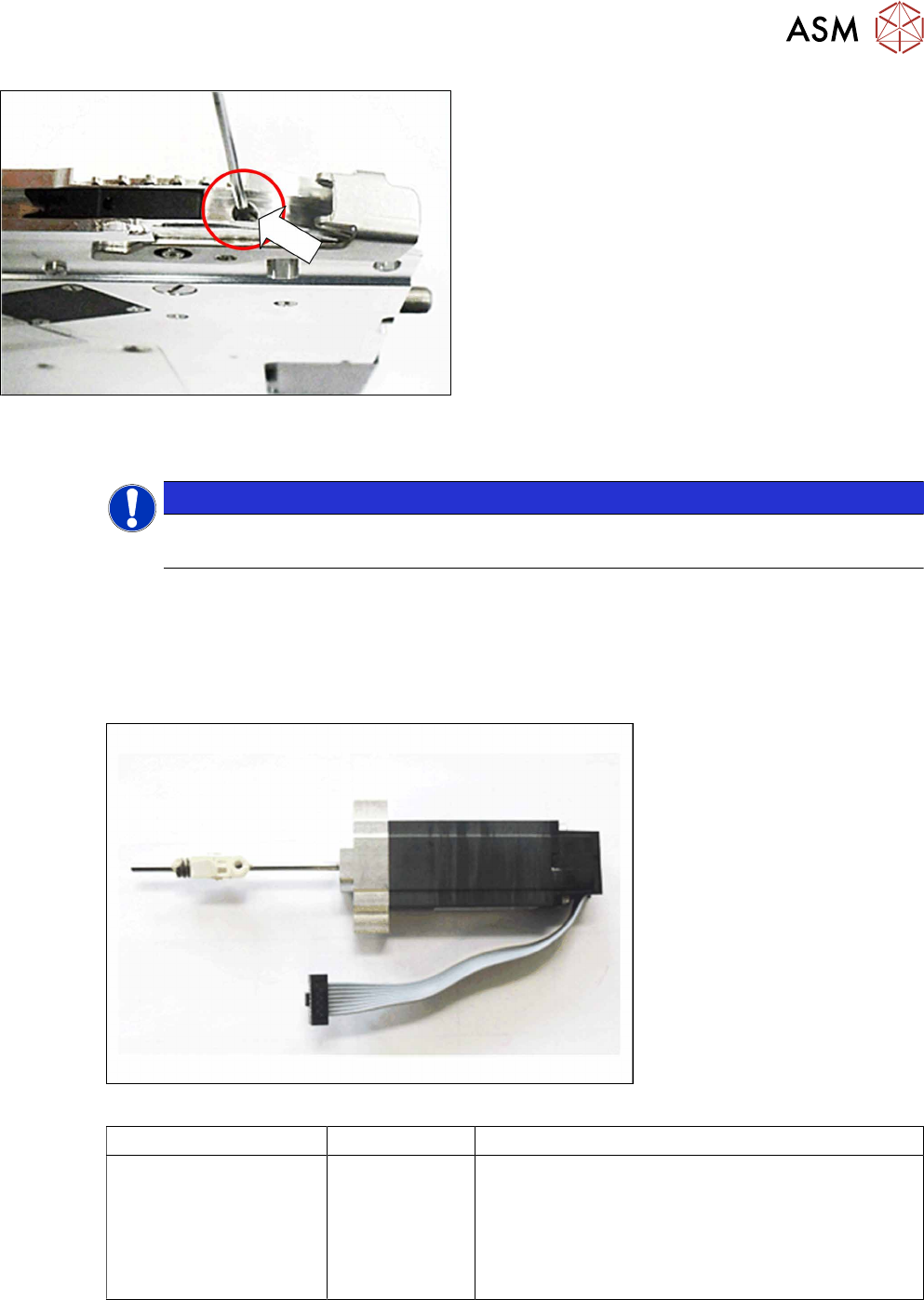

Fig.8: Motor coupling/foil disposal X-Series
Feeder module Item no. Designation
SmartFeeder 4mm X 03050686Sxx
03028610-xx
03012488-xx
03042536-01
Motor coupling/foil disposal X-Series
Bearing block, ceramic
SN 213307-H-M2 x 2.5-A2
(for fitting the bearing block)
ISO 4762 - M 2.5 x 12-A2-70
(for fitting the motor)
6 Repairs to SmartFeeder 4 mm X
6.7 Drives
42 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
Required tools
●
Phillips screwdriver 0.9Nm
●
Flat-bladed screwdriver size 3
●
TORX screwdriver 0.6Nm, size T8
●
Angled Allen key, size 2
●
Allen key 0.9 Nm, size 4
●
Tweezers
Required consumables
●
Grease Klübersynth GE 14-151
6.7.1.1 Removing the Foil Disposal Motor
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Remove the left side cover (see 6.3.1 "Removing
the Left Side Cover" [}31]).

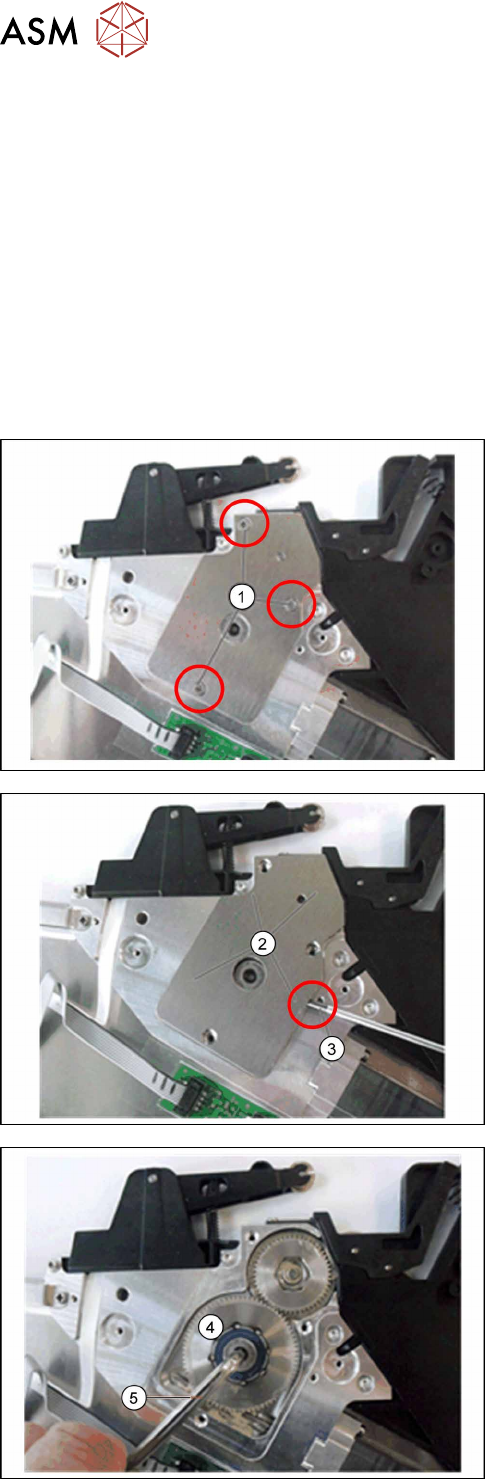

► Remove the 3 Phillips screws(1) marked in the
diagram from the bearing cap for the foil gear.
► Lift the bearing cap(2) up with a pair of tweezers
or a small screwdriver(3) and remove it.
► Loosen the spiral gear(4) on the foil disposal
with a size 4 Allen key(5).
