6 Repairs to SmartFeeder 4 mm X
6.10 Tamp wheel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 59
6.10.1 Removing the tamp wheel
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Remove the left side cover (see 6.3.1 "Removing
the Left Side Cover" [}31]).

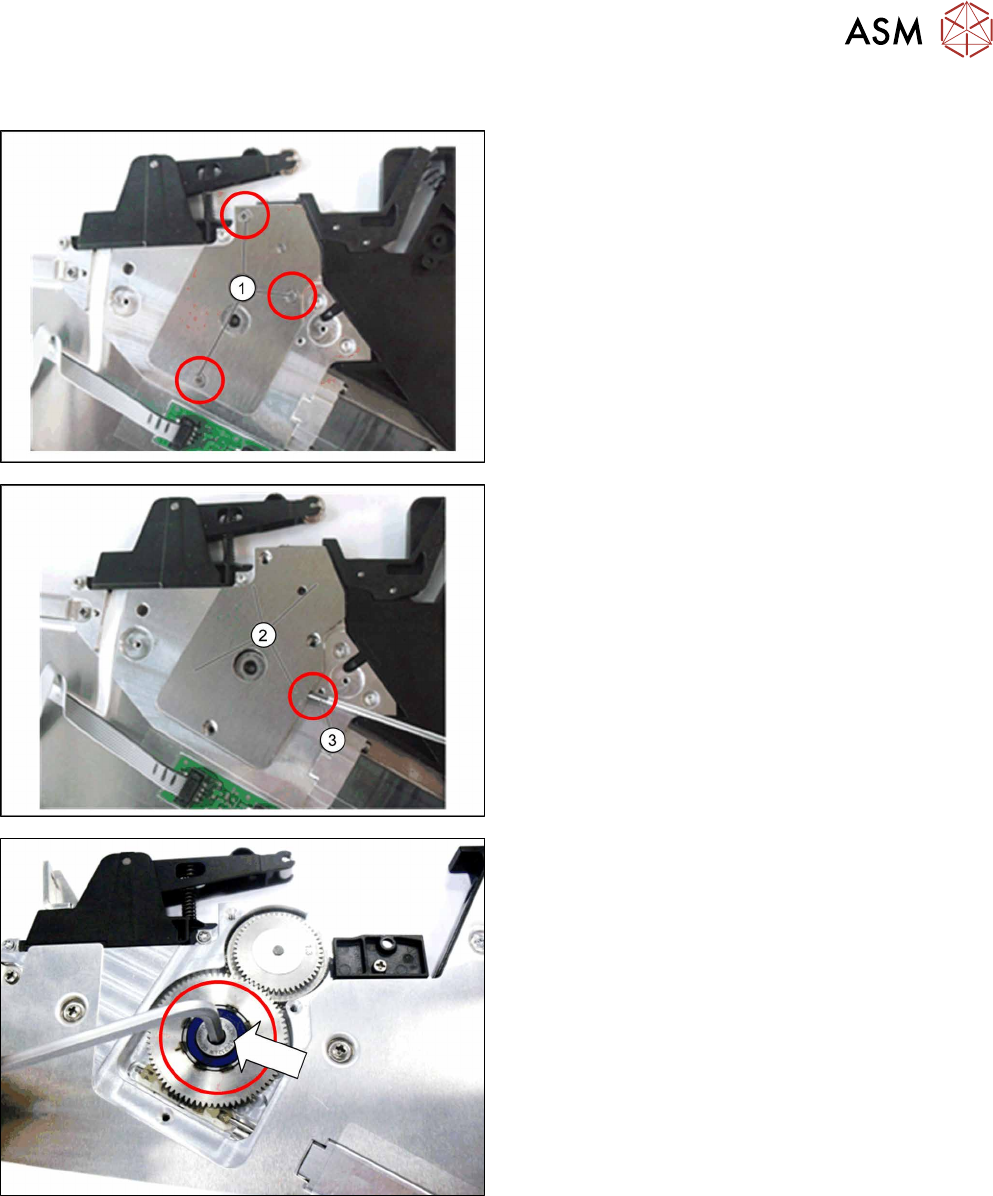

► Remove the 3 Phillips screws(1) marked in the
diagram from the bearing cap for the foil drive.
► Lift the bearing cap(2) up with a pair of tweezers
or a small screwdriver(3) and remove it.
► Remove the rocker (see 6.9.1 "Removing the
rocker" [}54]).
► Remove the wiper (see 6.11.1 "Removing the
wiper 4 mm X" [}65]).
► Loosen the Allen screw on the spiral gear.
Use a size 4 Allen key for this.
6 Repairs to SmartFeeder 4 mm X
6.10 Tamp wheel
60 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
► Tilt the feeder module to the right and hold the Al-
len screw on the spiral gear with one finger.
► Remove the slotted screw.
► Remove the spiral gear.
► Remove the top washer from the spiral gear.
6 Repairs to SmartFeeder 4 mm X
6.10 Tamp wheel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 61
► Remove the tamp wheel.
► If the bottom washer is still stuck to the spiral
gear, take it and place it back on the axis.
6.10.2 Fitting the tamp wheel
► Carefully place the feeder module with the right
side down on a stable, level and clean surface.
► Make sure that there is a washer on the axis.
