6 Repairs to SmartFeeder 4 mm X
6.10 Tamp wheel
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 63
► Tilt the feeder module to the right and hold the Al-
len screw on the spiral gear with one finger.
► Fasten the slotted screw.
Use a flat-bladed screwdriver for this.
► Fasten the Allen screw to the spiral gear on the
left side.
Use a size 4 Allen key with 0.9Nm for this.
► Fasten the wiper (see 6.11.2 "Fitting the wiper 4
mm X" [}65]).
► Fasten the rocker (see 6.9.2 "Fitting the
rocker" [}55]).
► Fit the bearing cap onto the foil stripping unit, as
shown.
► Fasten the bearing cap with the three screws
shown(1). Use a Phillips screwdriver with 0.9 Nm
for this.
► Fasten the left side cover (see 6.3.2 "Fitting the
Left Side Cover" [}31]).
6 Repairs to SmartFeeder 4 mm X
6.11 Wiper
64 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
6.11 Wiper
Required spare part

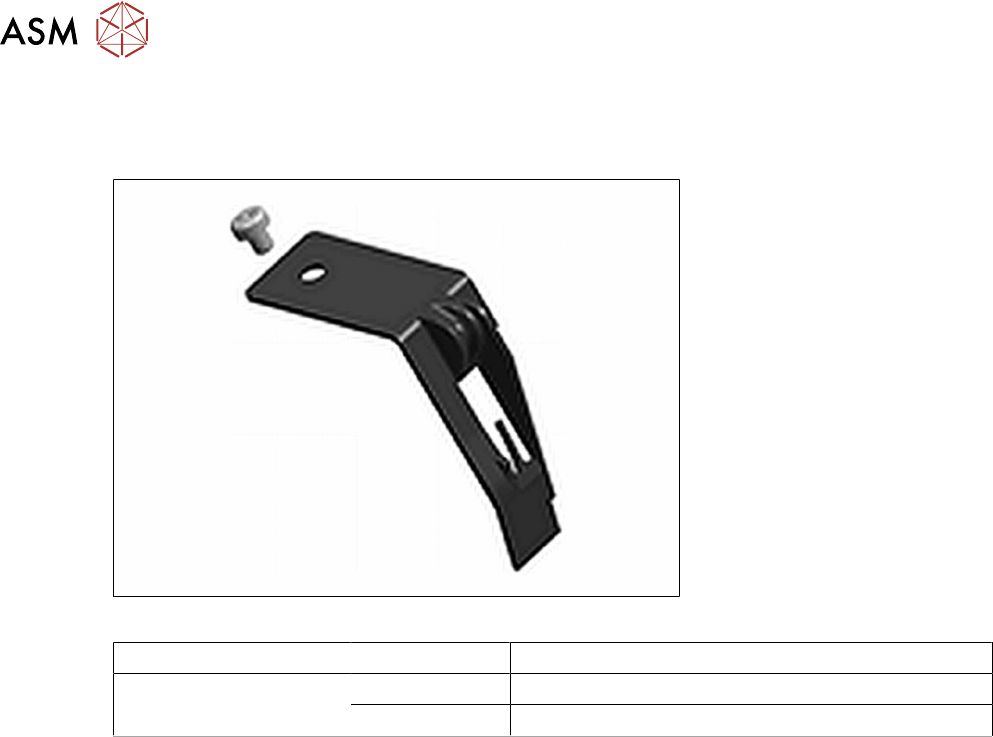

Fig.15: Wiper for foil disposal X4Smart V2
Feeder module Item no. Designation
SmartFeeder 4mm X 03134363Sxx Wiper for foil disposal X4Smart V2
03071821-xx SN 213307-H-M2.5 x 3-A2-70
Required tools
●
Phillips screwdriver, small
●
Tweezers
6 Repairs to SmartFeeder 4 mm X
6.11 Wiper
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 65

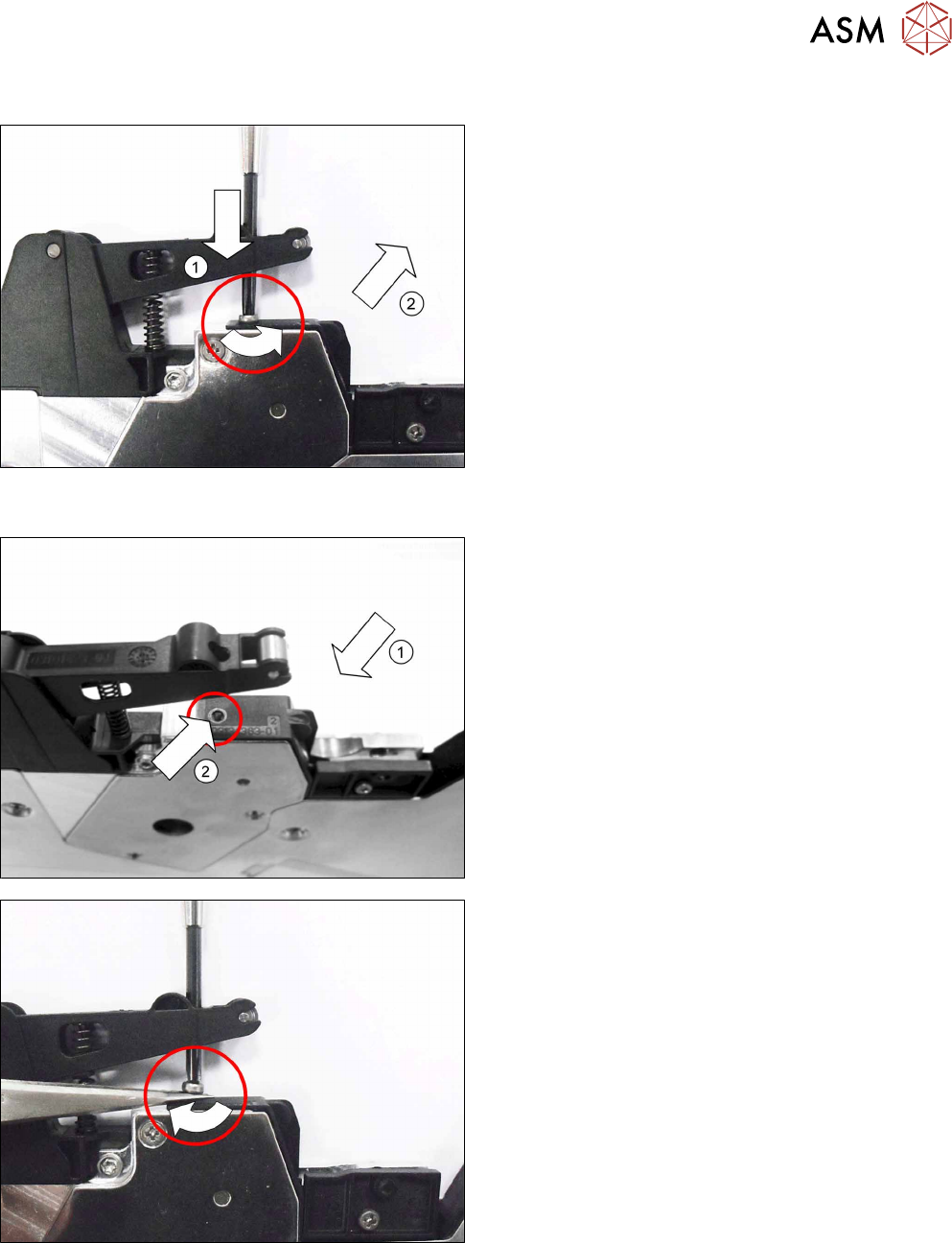

6.11.1 Removing the wiper 4 mm X
► Remove the rocker (see 6.9.1 "Removing the
rocker" [}54]).
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Insert the Phillips screwdriver through the open-
ing in the rocker(1).
► Remove the Phillips screwwhich is fastening the
wiper.
► Pull the wiper diagonally upwards and out. (2)
6.11.2 Fitting the wiper 4 mm X
► Insert the wiper as shown.(1)
► Make sure that you can see the hole for the
screw through the wiper.(2)
► Use a pair of tweezers to hold the Phillips screw
over the hole.
► Insert the Phillips screwdriver through the open-
ing in the rocker.
► Hand-tighten the wiper.
► Fit the rocker (see 6.9.2 "Fitting the
rocker" [}55]).
