6 Repairs to SmartFeeder 4 mm X 6.11 Wiper Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 65 6.11.1 Removing the wiper 4 mm X ► Remove the rocker (see 6.9.1 "Removing the rocker" [ } 54] ). ► Carefull…
6 Repairs to SmartFeeder 4 mm X
6.11 Wiper
64 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
6.11 Wiper
Required spare part
Fig.15: Wiper for foil disposal X4Smart V2
Feeder module Item no. Designation
SmartFeeder 4mm X 03134363Sxx Wiper for foil disposal X4Smart V2
03071821-xx SN 213307-H-M2.5 x 3-A2-70
Required tools
●
Phillips screwdriver, small
●
Tweezers
6 Repairs to SmartFeeder 4 mm X
6.11 Wiper
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 65
6.11.1 Removing the wiper 4 mm X
► Remove the rocker (see 6.9.1 "Removing the
rocker" [}54]).
► Carefully place the feeder module with the left
side down on a stable, level and clean surface.
► Insert the Phillips screwdriver through the open-
ing in the rocker(1).
► Remove the Phillips screwwhich is fastening the
wiper.
► Pull the wiper diagonally upwards and out. (2)
6.11.2 Fitting the wiper 4 mm X
► Insert the wiper as shown.(1)
► Make sure that you can see the hole for the
screw through the wiper.(2)
► Use a pair of tweezers to hold the Phillips screw
over the hole.
► Insert the Phillips screwdriver through the open-
ing in the rocker.
► Hand-tighten the wiper.
► Fit the rocker (see 6.9.2 "Fitting the
rocker" [}55]).
6 Repairs to SmartFeeder 4 mm X
6.12 Flap/drip tray for cover foil
66 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
6.12 Flap/drip tray for cover foil
Required spare part

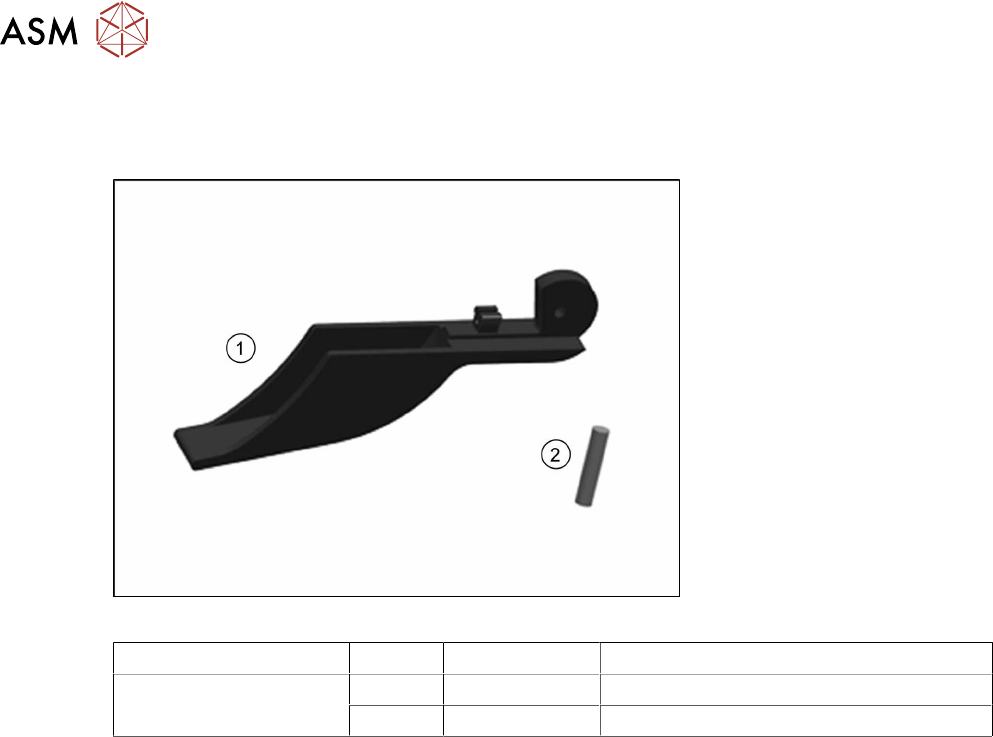

Fig.16: Drip tray and shaft
Feeder module Position Item no. Designation
SmartFeeder 4mmX 1 03119392Sxx Drip tray for cover foil X4Smart
2 03004081-xx Shaft for D2 foil flap X8
Required tools
●
TORX screwdriver size T8, with 0.6Nm
●
Phillips screwdriver 0.9Nm
