6 Repairs to SmartFeeder 4 mm X 6.14 Insertion foil container Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 69 6.14 Insertion foil container Required spare part Fig.18: Insertion foil container X4Smart V2 Feed…
6 Repairs to SmartFeeder 4 mm X
6.13 Foil disposal blade
68 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
6.13 Foil disposal blade
Required spare part

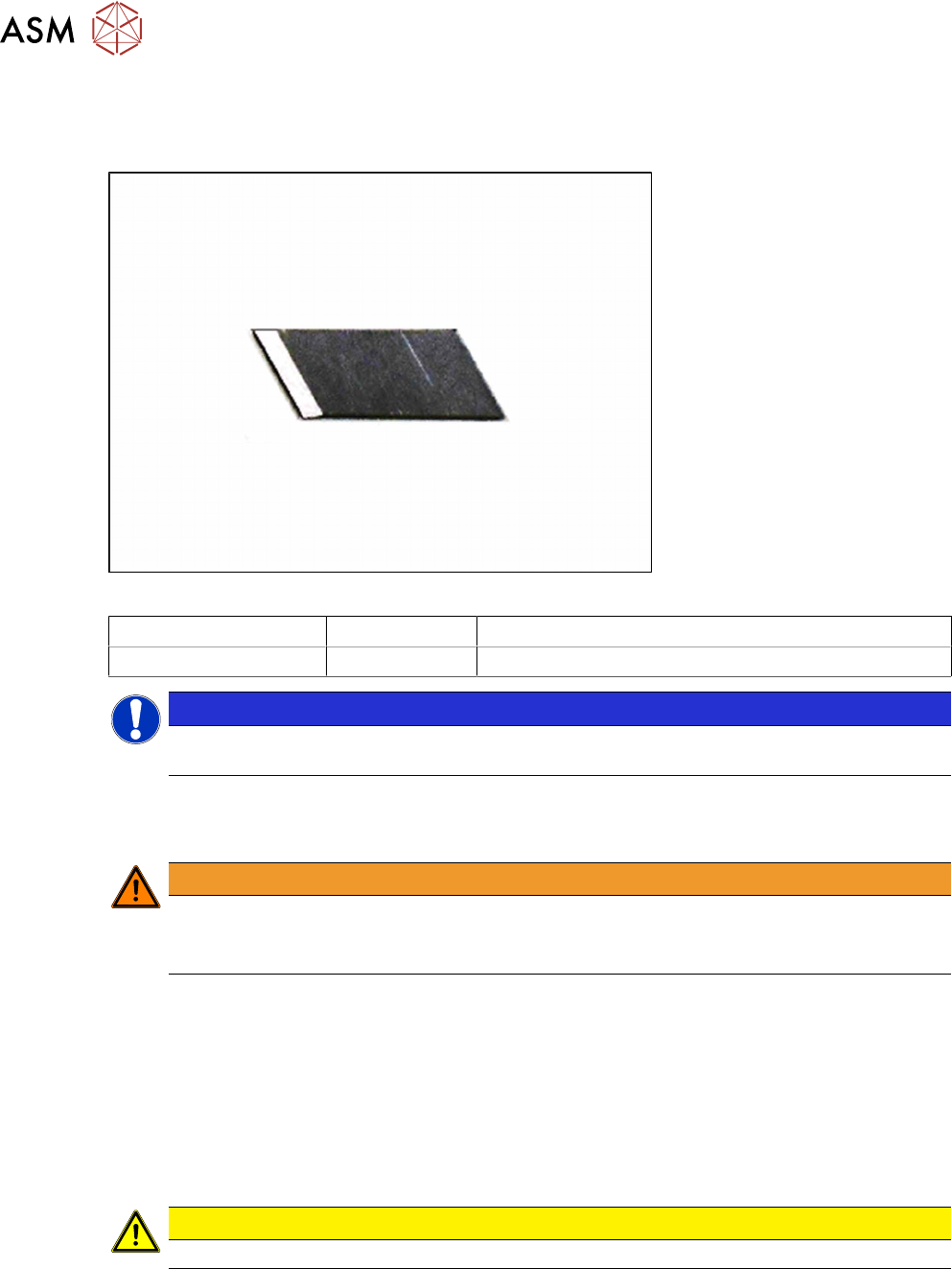

Fig.17: Blade partition wall
Feeder module Item no. Designation
SmartFeeder 4mmX 00341370Sxx Blade partition wall
NOTICE
Pay attention when preparing the individual blades. Individual blades must be broken at the
cutter edge. Ensure all safety precautions are observed.
Required tools
●
TORX screwdriver 0.6Nm, size T8
WARNING
Risk of injury
The edge of the blade is very sharp. Make sure that you always use a pair of tweezers
when removing and fitting the blade.
6.13.1 Removing the Blade Partition Wall
► Place the feeder on a stable, level and clean surface.
► Open the flap.
► Loosen the screw fastening the blade and remove the old blade.
6.13.2 Fitting the Blade Partition Wall
► Place the new blade in position and tighten the screw.
CAUTION
► The blades are sharp, take necessary safety precautions.
6 Repairs to SmartFeeder 4 mm X
6.14 Insertion foil container
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 69
6.14 Insertion foil container
Required spare part

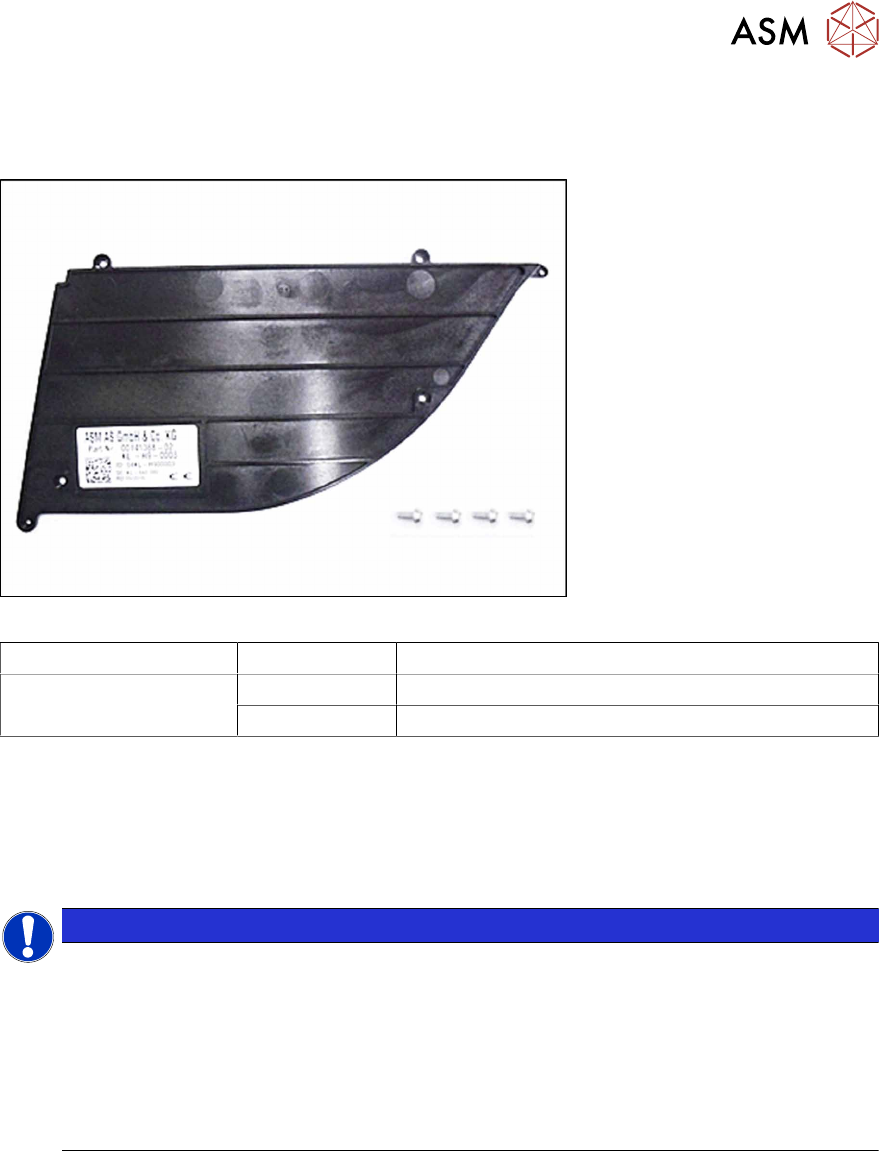

Fig.18: Insertion foil container X4Smart V2
Feeder module Item no. Designation
SmartFeeder 4mmX 03126541Sxx Insertion foil container X4Smart V2
03033796-xx RF-SN75-2.5 x 6-9.8
Required tools
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver 0.6Nm, size T8
6.14.1 Replacing the foil container
NOTICE
Risk of confusion
The "insertion foil container X4Smart V2" has a label with details about the feeder module
(item number, serial number, barcode,…).
When replacing the insertion foil container, you need to create a new label and attach it to
the feeder module, so that the feeder module can be clearly identified again after the re-
placement.
For a description of how to create new labels, see section 2.5 "Creating new labels for
feeder modules" [}17].
► Carefully place the feeder module with the left side down on a stable, level and clean surface.
► Remove the right side cover (see 6.3.3 "Removing the Right Side Cover" [}32]).
6 Repairs to SmartFeeder 4 mm X
6.15 Handle with control panel
70 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017
► Remove the 4 screws marked in the diagram.
Use a size 8 TORX screwdriver for this.
► Carefully remove the insertion foil container.
► Clean the foil container thoroughly and remove
all foil and adhesive residues.
► Insert the insertion foil container again.
► Fix the foil container with the 4 screws marked in
the diagram. Use a size 8 (0.6 Nm) TORX screw-
driver for this.
► Fit the right side cover (see 6.3.4 "Fitting the Right Side Cover" [}33]).
6.15 Handle with control panel
6.15.1 Control Panel Assembly
Required spare part
Fig.19: Board assy. control panel (top), control panel assy. (bottom)
Feeder module Item no. Designation
SmartFeeder 4mm X 03104269-xx Board assy. control panel X8Smart
03102428 -xx Control panel assy. X8Smart
Required tools
●
Phillips screwdriver 0.9Nm
●
TORX screwdriver size T8, 0.6Nm
●
Tweezers or small screwdriver
