7 Repairs to SmartFeeder 8 mm X 7.2 Rear Sliding Guide 80 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 7.1.2 Fitting the Sliding Foil ► Press the sliding foil slightly together. ► Push the sliding foil into th…
7 Repairs to SmartFeeder 8 mm X
7.1 Front sliding guide/sliding foil
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 79
7 Repairs to SmartFeeder 8 mm X
Feeder module Item no. Description
SmartFeeder 8mmX 00141370- xx
00141390-xx
SIPLACE SmartFeeder 8mm X
SIPLACE SmartFeeder 8mm X splice sensor

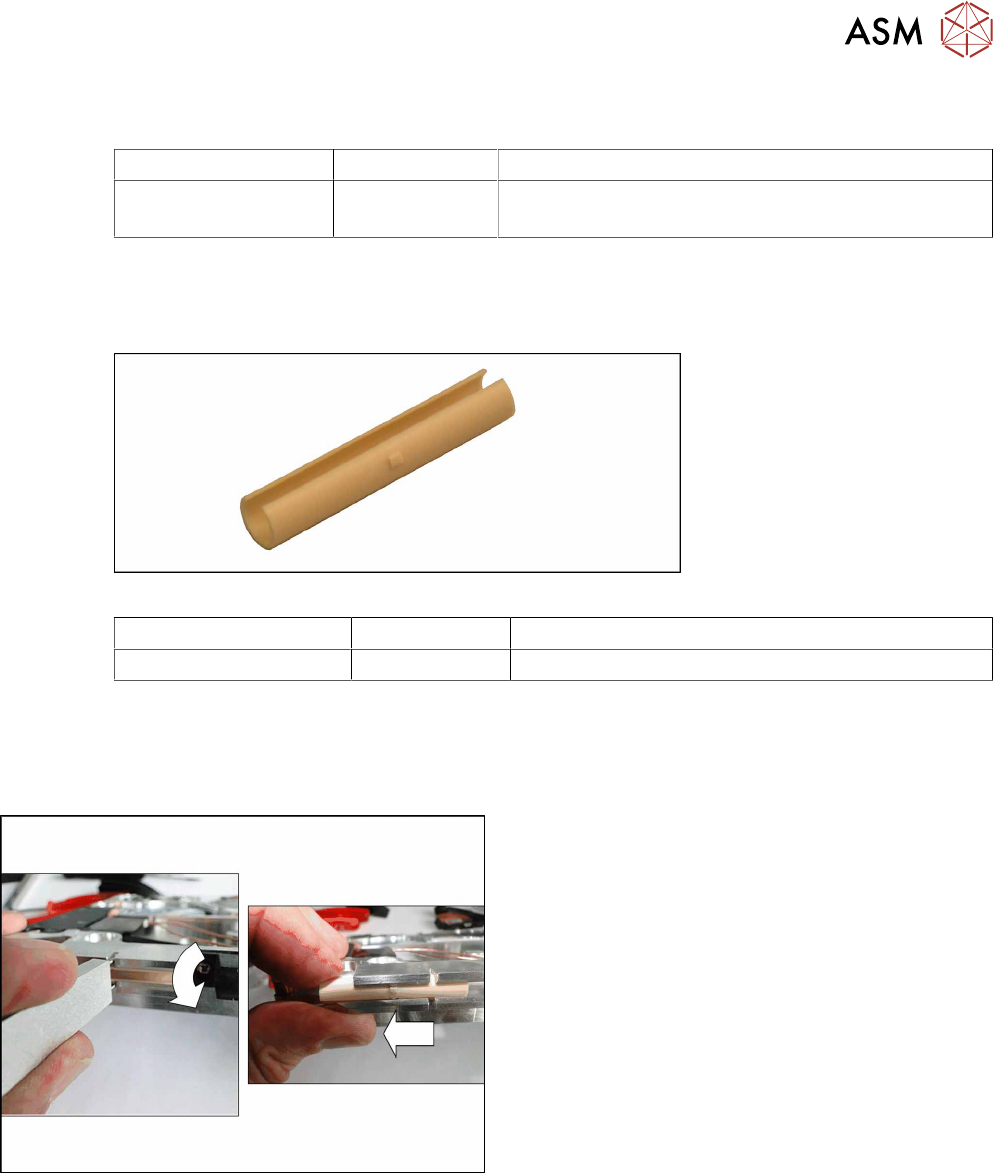

7.1 Front sliding guide/sliding foil
Required spare part
Fig.22: Sliding foil
Feeder module Item no. Designation
SmartFeeder 8mmX 03019604Sxx Sliding foil, X-feeder JUM-S-06LY
Required tools
●
Sliding foil remover [03075421-xx]
7.1.1 Removing the Sliding Foil
► Place the feeder module carefully down on its
side, onto a stable, level and clean surface.
► Place the sliding foil remover into the sliding
guide, as shown in the diagram.
► Lever the sliding foil out of the engaged position.
► Pull the sliding foil out of the sliding guide, to-
wards the front.
7 Repairs to SmartFeeder 8 mm X
7.2 Rear Sliding Guide
80 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

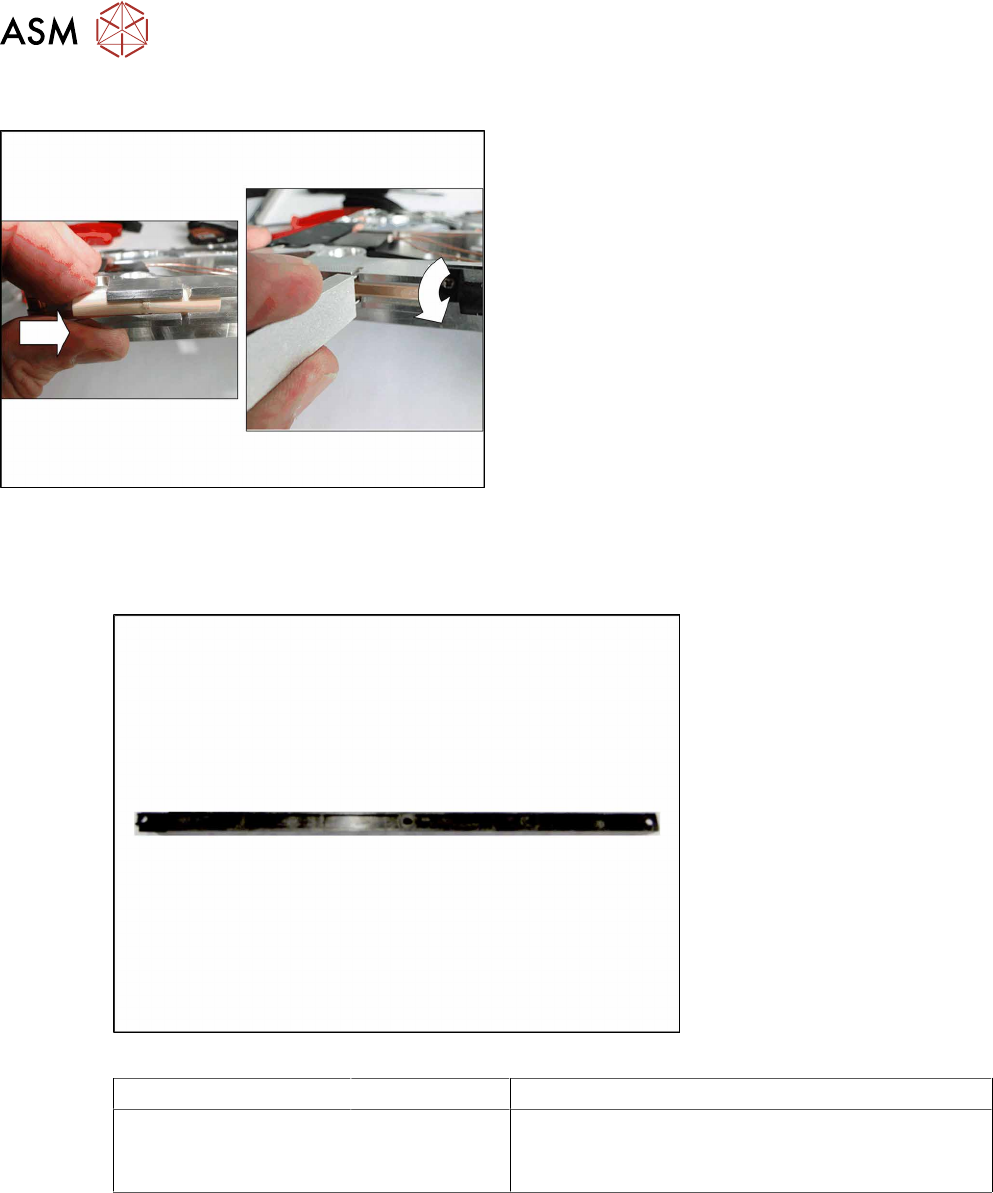

7.1.2 Fitting the Sliding Foil
► Press the sliding foil slightly together.
► Push the sliding foil into the sliding guide, from
the front, as far as the end stop.
► Turn the sliding foil, until the slit can be fully seen
and the sliding foil engages audibly.
7.2 Rear Sliding Guide
Required spare part
Fig.23: Sliding guide, back
Feeder module Item no. Designation
SmartFeeder 8mmX 03003994- xx
03119317-xx
00328251-xx
Sliding guide / back L200
ISO 14585 - ST2.9x9.5-F-St,FeZn (3x)
SN 213307-H-M2.5 x 8-A2-70 (1x)
Required tools
●
Phillips screwdriver 0.6Nm (for 4mmX)
●
TORX screwdriver 0.6Nm, size T8 (for 8 mm X)
7 Repairs to SmartFeeder 8 mm X
7.2 Rear Sliding Guide
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 81
7.2.1 Removing the Sliding Guide
► Turn the feeder module so that its underside is at
the top.
► Remove the Phillips screw from the left side.
► Remove the three TORX screws from the right
side.
► Lift the gliding slide upwards and off.
7.2.2 Fitting the Sliding Guide
► Turn the feeder module so that its underside is at
the top.
► Fit the guiding slide – as illustrated – to the un-
derside of the feeder module.
Observe the arrangement of the drilled holes in
the guiding slide.
► Push the guiding slide, as shown, to the left
(front) towards the front guiding slide, as far as
the stop.
► Now lower the two snap tabs of the guiding slide
into the openings provided on the underside of
the feeder module.
► Fasten the sliding guide on the left side to the
feeder module, using the Phillips screw "ISO
7045 - M2.5 x 6-A2-50-H" tightened to 0.6N.
► Use the 3 TORX screws to fix the guiding slide
on the right side with 0.6Nm to the feeder mod-
ule.
