7 Repairs to SmartFeeder 8 mm X
7.5 Pickup window
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 91

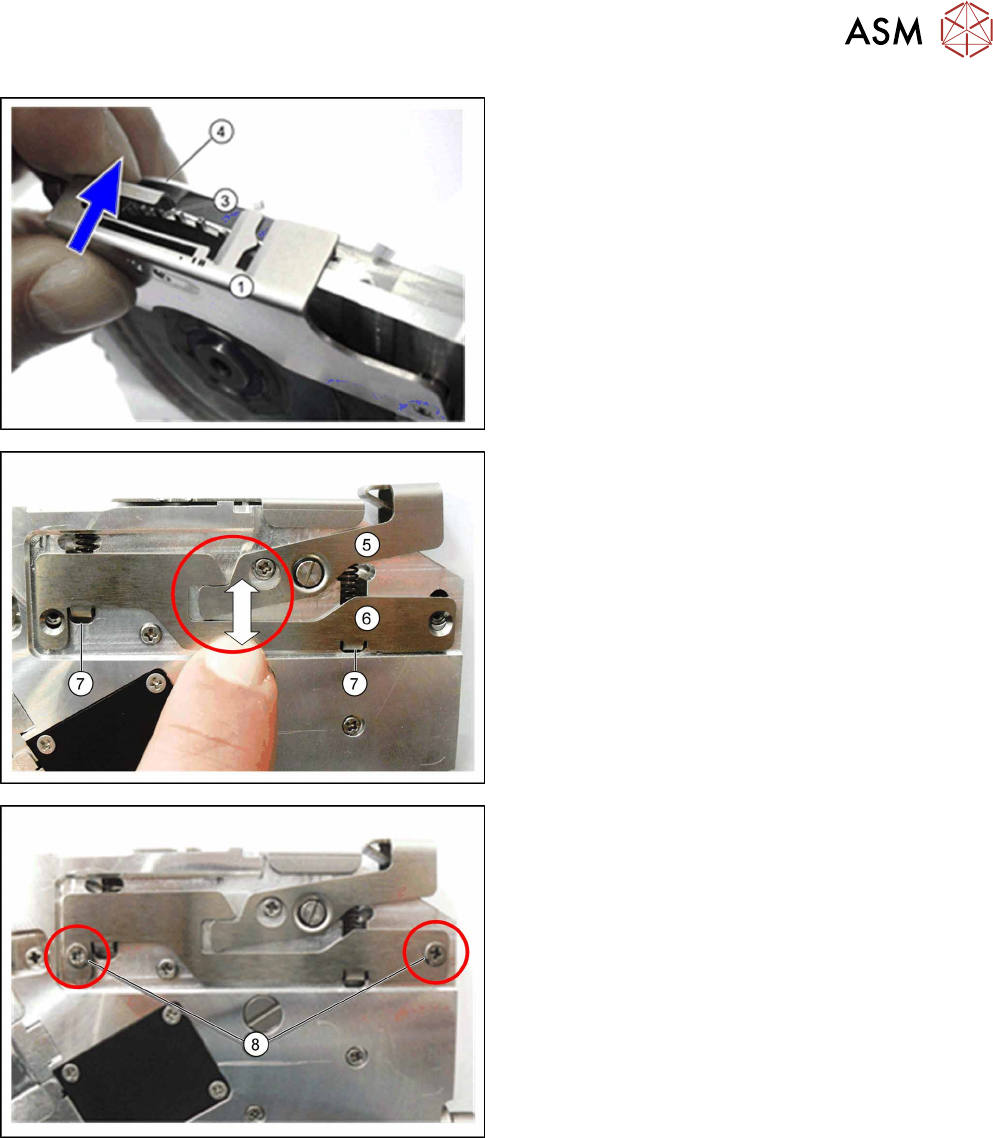

► Carefully guide the pickup window (1) over the
pin wheel (3) and over the right edge (4) of the
feeder module.
► Make sure that, in the marked area, the actu-
ator(5) for the pickup window and the counter-
plate(6) lie flat against the wall of the feeder
module and can be moved up and down.
► Take care when you insert the counterplate that
the springs(7) are completely as shown within
their guidance and that the counterplate can be
inserted neatly.
► Fasten the pickup window (hand-tight) with the
two screws(8) marked in the diagram.
Use a Phillips screwdriver and 0.6Nm.
7 Repairs to SmartFeeder 8 mm X
7.5 Pickup window
92 Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017

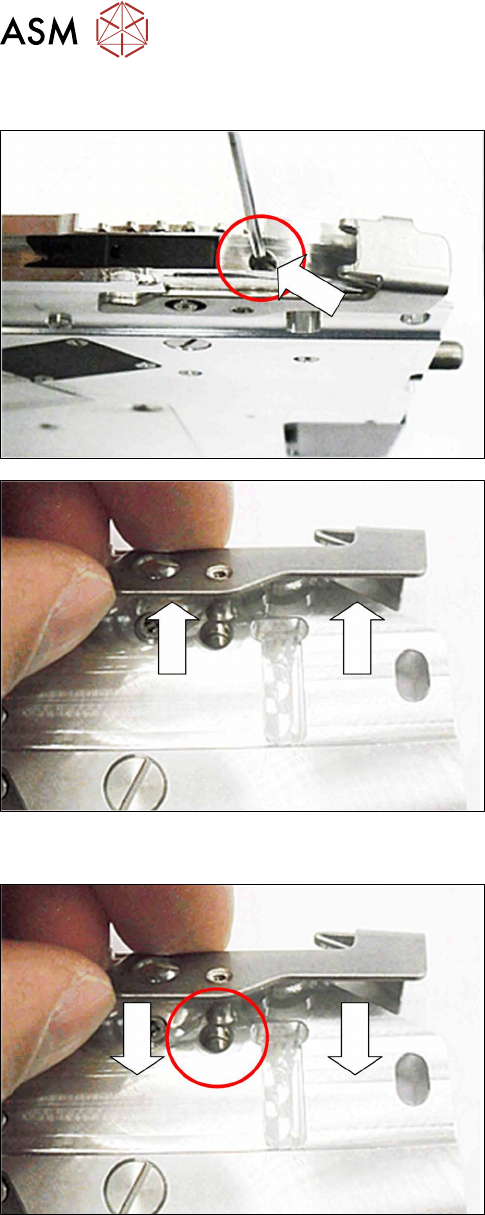

7.5.3 Removing the actuator
► Remove the pickup window 7.5.1 "Removing the
Pickup Window" [}90]).
► Remove the fitting screw shown in the diagram.
Use a 1.5mm Allen key.
► Pull the actuator on the righthand side of the
feeder module out of the base unit.
7.5.4 Fitting the actuator
► Push the actuator on the righthand side of the
feeder module into the base unit as shown.
During this, push the actuator axis into the hole
shown in the diagram.
7 Repairs to SmartFeeder 8 mm X
7.6 Splice sensor
Service Manual SIPLACE SmartFeeder 4 - 104 mm X 11/2017 93

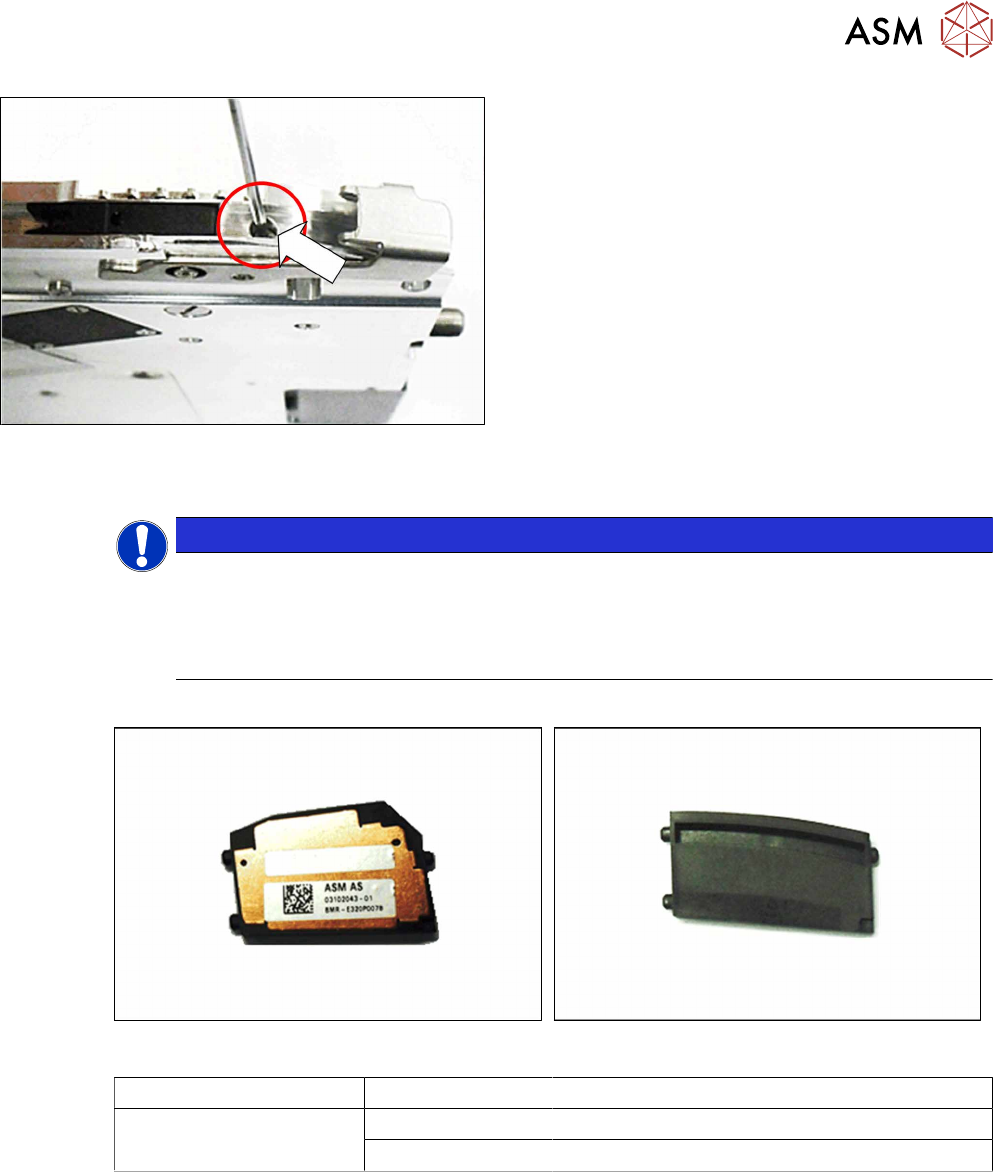

► Fasten the actuator axis with a fitting screw
Use a 1.5mm Allen key for this.
► Fasten the pickup window (see 7.5.2 "Fitting the
Pickup Window" [}90]).
7.6 Splice sensor
NOTICE
Removing retrofitted splice sensors
Each SmartFeeder 8mmX is prepared for using a splice sensor, although it is supplied
without the splice sensor. To re-establish this delivery state, you need to remove any retro-
fitted splice sensors before you send the feeder module back to the manufacturer for re-
pairs.
Required spare part
Splice sensor Dummy splice sensor
Feeder module Item no. Designation
SmartFeeder 8mm X 03107028 -xx Splice sensor X8Smart assy.
03104558 -xx Dummy splice sensor X8Smart
Required tools
●
TORX screwdriver 0.6Nm, size T8
