PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 21 部品ｶﾞｲﾄﾞ ﾏｳﾝﾄ部( 左右共通)(40 ｽﾃｰｼｮﾝ) PARTS GUIDE MOUNT SE CT.(LEFT & R IGHT COMMO N)(40 STATION) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610123560AA PARTS GUIDE M OUNT UNIT ﾌﾞ…

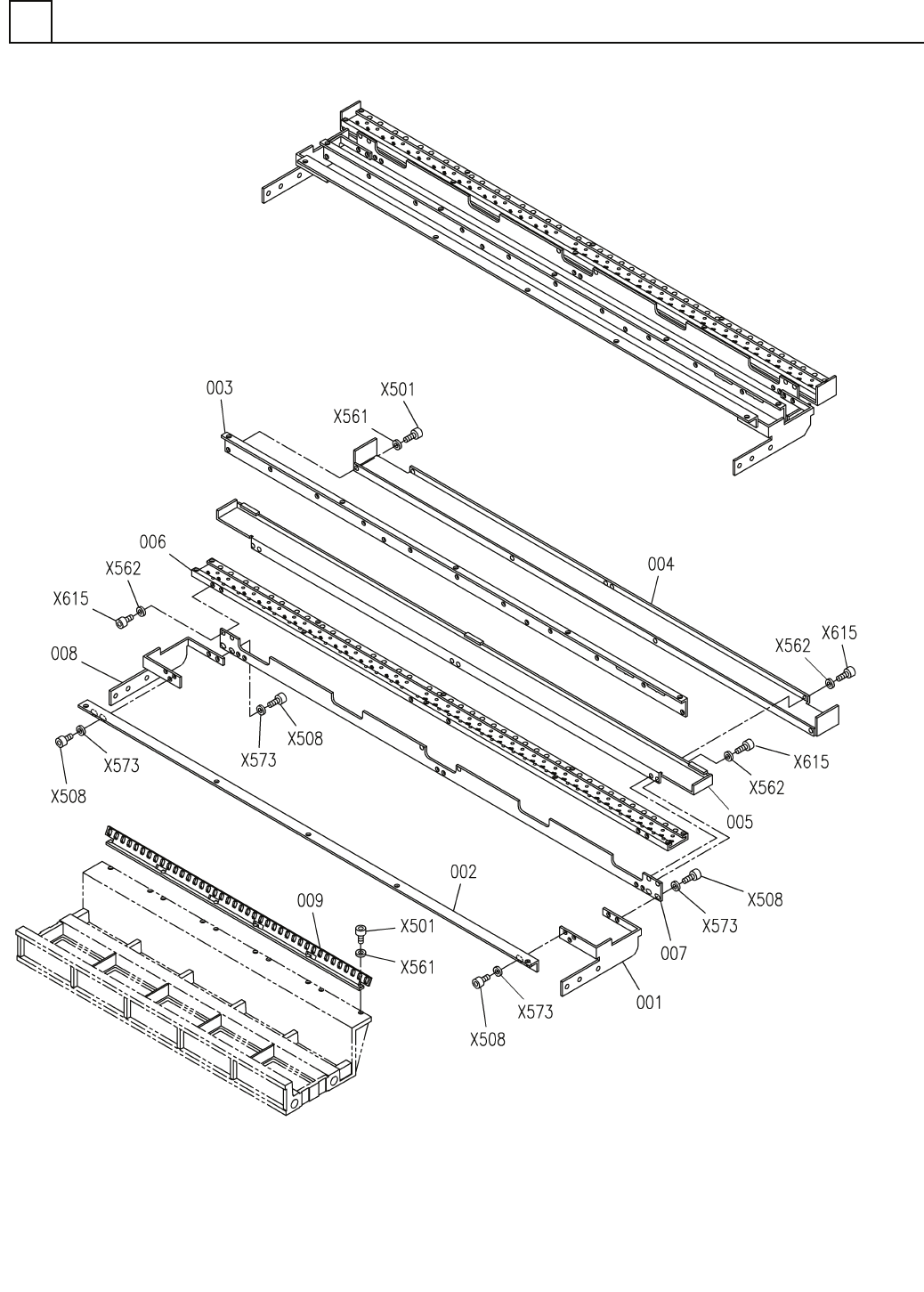

部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通)(40ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(LEFT & RIGHT COMMON)(40 STATION)
21
FN610123560AA_01
M279
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
21
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通)(40ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(LEFT & RIGHT COMMON)(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610123560AA
PARTS GUIDE MOUNT UNIT ﾌﾞﾋﾝｶ
ﾞｲﾄﾞﾏｳﾝﾄﾕﾆｯﾄ
1
001 N210146528AC
BRACKET ﾌﾞﾗｹｯﾄ
1
002 N210088607AA
STAY ｽﾃｰ
1003 N210098160AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1004 N210088609AA
COVER ｶﾊ
ﾞｰ
1
005 N210088610AA
COVER ｶﾊﾞｰ
1
006 N210088612AB
BRACKET ﾌﾞﾗｹｯﾄ
1007 N210098161AA
PLATE ﾌ
ﾟﾚｰﾄ
1008 N210146520AC
BRACKET ﾌﾞﾗｹｯﾄ
1
009 N210124701AA
BRACKET ﾌﾞﾗｹｯﾄ
M5X12-10.9 A2J (Triva
8
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X5-10.9 A2J (Trival
10
X501
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X8-10.9 A2J (Trival
12
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5
8
X573
N510020100AA
WASHER ｻﾞｶﾞﾈ
3 10H A2J (Trivalent)
10
X561
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
12
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M280
FN610123560AA_01

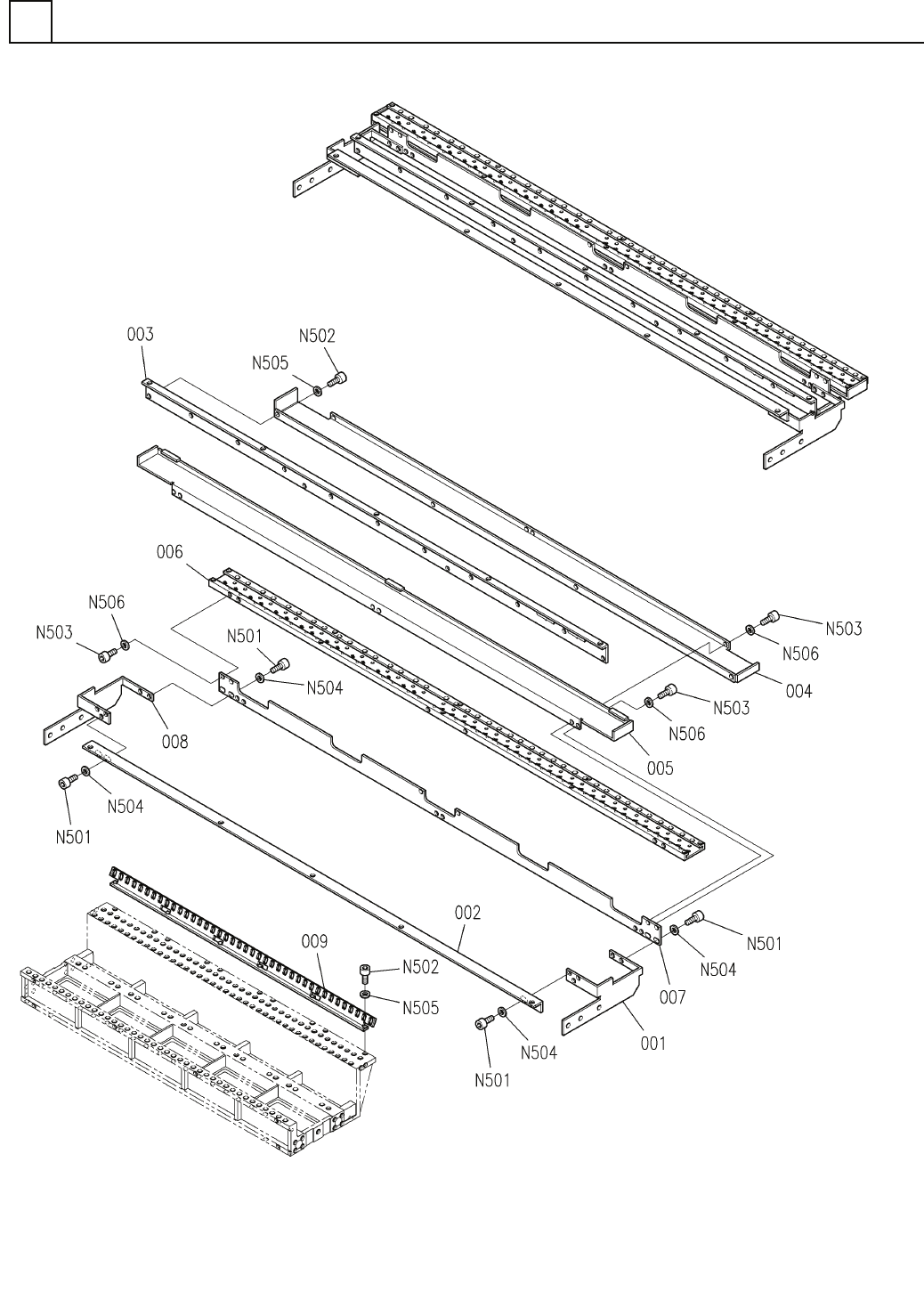

部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通)(80ｽﾃｰｼｮﾝ)
PARTS GUIDE MOUNT SECT.(LEFT & RIGHT COMMON)(80 STATION)
21
FN610071314AA_02_A
M281
