PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 6 ｶﾊﾞｰ部( ﾄﾞｱ部2 ) COVER SECT. (DOOR SEC T.-2) 部 品 名 品 番 個数 備 考 R 1 R 2 1 005 N210153692AA BRACKET ﾌ ﾞﾗｹｯﾄ 1 006 N210154620AB COVER ｶﾊﾞｰ 1 007 N210149452AA BRACKET ﾌﾞﾗ…

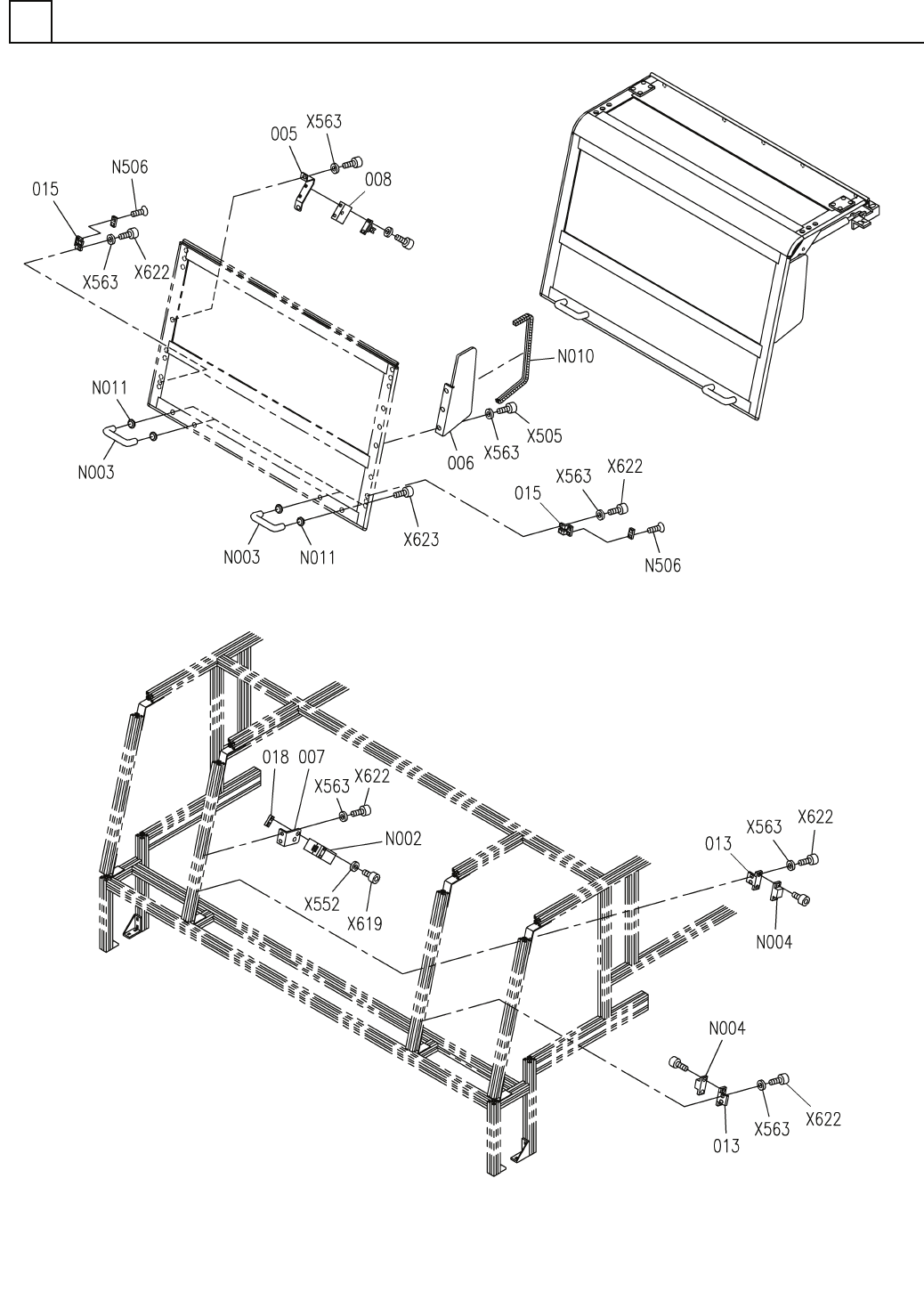

ｶﾊﾞｰ部(ﾄﾞｱ部2)
COVER SECT.(DOOR SECT.-2)
6
FN610131662AA_02-2
M75
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
6
ｶﾊﾞｰ部(ﾄﾞｱ部2)
COVER SECT.(DOOR SECT.-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1005 N210153692AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
006 N210154620AB
COVER ｶﾊﾞｰ
1
007 N210149452AA
BRACKET ﾌﾞﾗｹｯﾄ
1008 N210153696AC
BRACKET ﾌ
ﾞﾗｹｯﾄ
2013 N210149451AA
BRACKET ﾌﾞﾗｹｯﾄ
2
015 104680203103
BRACKET ﾌﾞﾗｹｯﾄ
1
018 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
HS5D-02RNP S
1
N002
N510056987AA
SWITCH ｽｲｯﾁ
THA-31-6
2
N003
N982THA3406A
DRAWER PULL ﾄｯﾃ
C-100-B-2
2
N004
KXF01BNAA00
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ
EL-10
1
N010
N348EL10
BUSHING FOR WIRING ﾌﾞｯｼｭ
THA-268-3452
4
N011
N982THA3452
WASHER ｻ
ﾞｶﾞﾈ
M4X10-10.9 A2J (Triva
3
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
2
X552
N510018479AA
ROUND PLAIN WASHER ｺｶﾞｶﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
13
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4X30-10.9 A2J (Triva
2
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X10-10.9 A2J (Triva
10
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X25-10.9 A2J (Triva
4
X623
N510017399AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X6-4.8 A2J (Trivale
4
N506
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M76
FN610131662AA_02-2

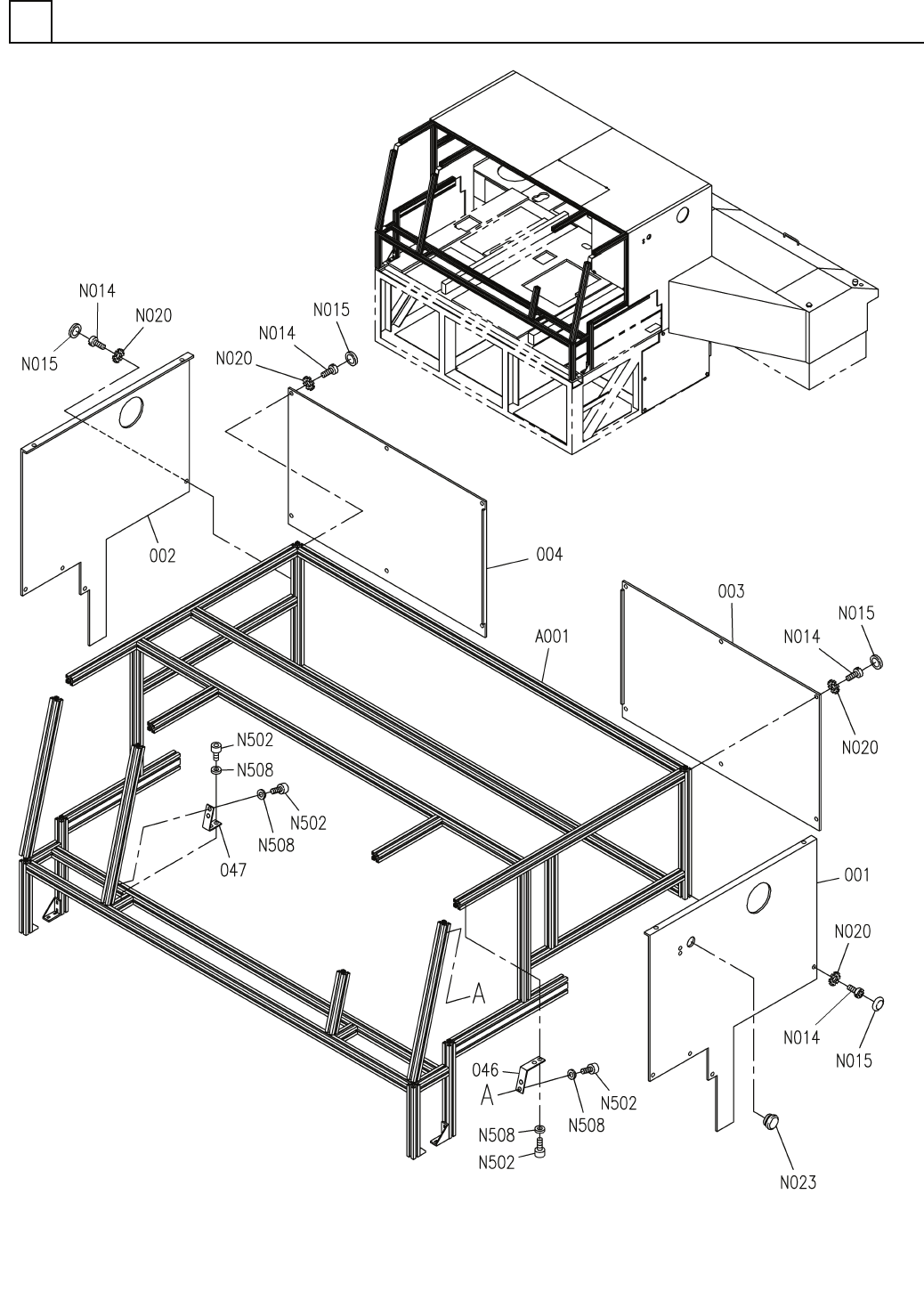

ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ1）
COVER SECT.(80 STATION-1)
6
FN610130678AA_08-1
