ｶﾊﾞｰ 部（40ｽﾃ ｰｼｮﾝ6 ） COVER SECT. (40 STATI ON-6) 6 FN610125947AA_05-6 M71
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
6
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ5）
COVER SECT.(40 STATION-5)
部 品 名 品 番 個数
備 考
R
1
R
2
1
A005
N610131535AA
COVER ｶﾊ
ﾞｰ
S
1
026 N210157280AA
COVER ｶﾊﾞｰ
1
027 N210100767AA
BRACKET ﾌﾞﾗｹｯﾄ
1037 N210153696AC
BRACKET ﾌ
ﾞﾗｹｯﾄ
1038 KXFB012PA01
NUT PLATE ﾅｯﾄﾌ
ﾟﾚｰﾄ
1
039 N210093565AA
HINGE ﾁｮｳﾊﾞﾝ
1
040 N210153695AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
1041 N210153693AA
SPACER ｽﾍ
ﾟｰｻ
2042 N210093563AB
BRACKET ﾌﾞﾗｹｯﾄ
1
044 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
HS5D-02RNP S
1
N009
N510056987AA
SWITCH ｽｲｯﾁ
53015030-WM
1
N010
KXF06F4AA00
JOINT ｼ
ﾞｮｲﾝﾄ
B-1223-12-L
1
N011
N980B122312L
STAY ｽﾃｰ
THA-31-6
1
N012
N982THA3406A
DRAWER PULL ﾄｯﾃ
THA-270-3(3460)
2
N013
N982THA3460
WASHER ｻﾞｶﾞﾈ
C-30-CS-6
2
N014
KXF0C9YAA00
RUBBER ｺ
ﾞﾑ
RSN-DW8C-101
1
N025
N510039718AA
LAMP LED ﾗﾝﾌﾟ
M3X8-10.9 A2J (Trival
2
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X12-10.9 A2J (Triva
4
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
2
X561
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
6
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
4
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3
4
X571
N510020098AA
WASHER ｻ
ﾞｶﾞﾈ
M4
6
X572
N510020099AA
WASHER ﾜｯｼｬ
M4-6H-4T A2J (Trivale
6
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X30-10.9 A2J (Triva
2
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Triva
4
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X12-4.8 A2J (Trival
6
N502
N510018259AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M5X10-4.8 A2J (Trival
5
N503
N510018284AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M5X16-4.8 A2J (Trival
2
N505
N510018290AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M70
FN610125947AA_05-5
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ6）
COVER SECT.(40 STATION-6)
6
FN610125947AA_05-6
M71
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
6

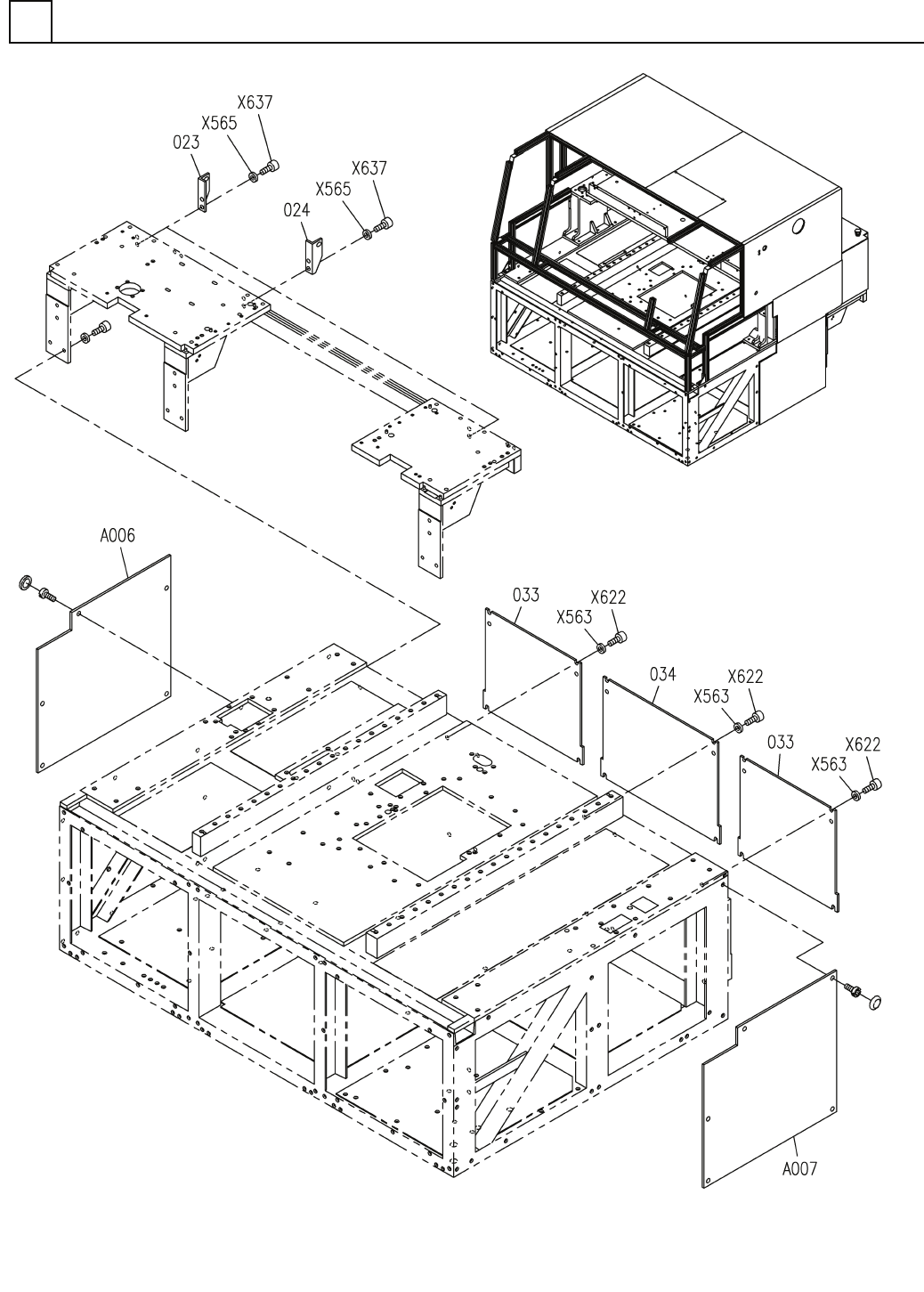

ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ6）
COVER SECT.(40 STATION-6)
部 品 名 品 番 個数
備 考
R
1
R
2
S
1
A006
N610131432AB
COVER UNIT ｶﾊ
ﾞｰﾕﾆｯﾄ
S
1
A007
N610131433AB
COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ
2
023 N210149330AA
BRACKET ﾌﾞﾗｹｯﾄ
1024 N210149331AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
2033 N210149555AB
COVER ｶﾊ
ﾞｰ
1
034 N210149556AB
COVER ｶﾊﾞｰ
5 10H A2J (Trivalent)
12
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
8 10H A2J (Trivalent)
9
X565
N510018503AA
WASHER ﾋﾗｻ
ﾞｶﾞﾈ
M5X10-10.9 A2J (Triva
12
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M8X12-10.9 A2J (Triva
10
X637
N510017465AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M72
FN610125947AA_05-6
