部品手册1N7203A389B - 第105页
PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 6 ｶﾊﾞｰ部( ﾄﾞｱ部1 ) COVER SECT. (DOOR SEC T.-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610131662AA DOOR UNIT ﾄﾞ ｱﾕﾆｯﾄ 1 A001 N610125386AA FRONT COVER ｶﾊﾞｰ(FRONT) 1 A002 N610125393…

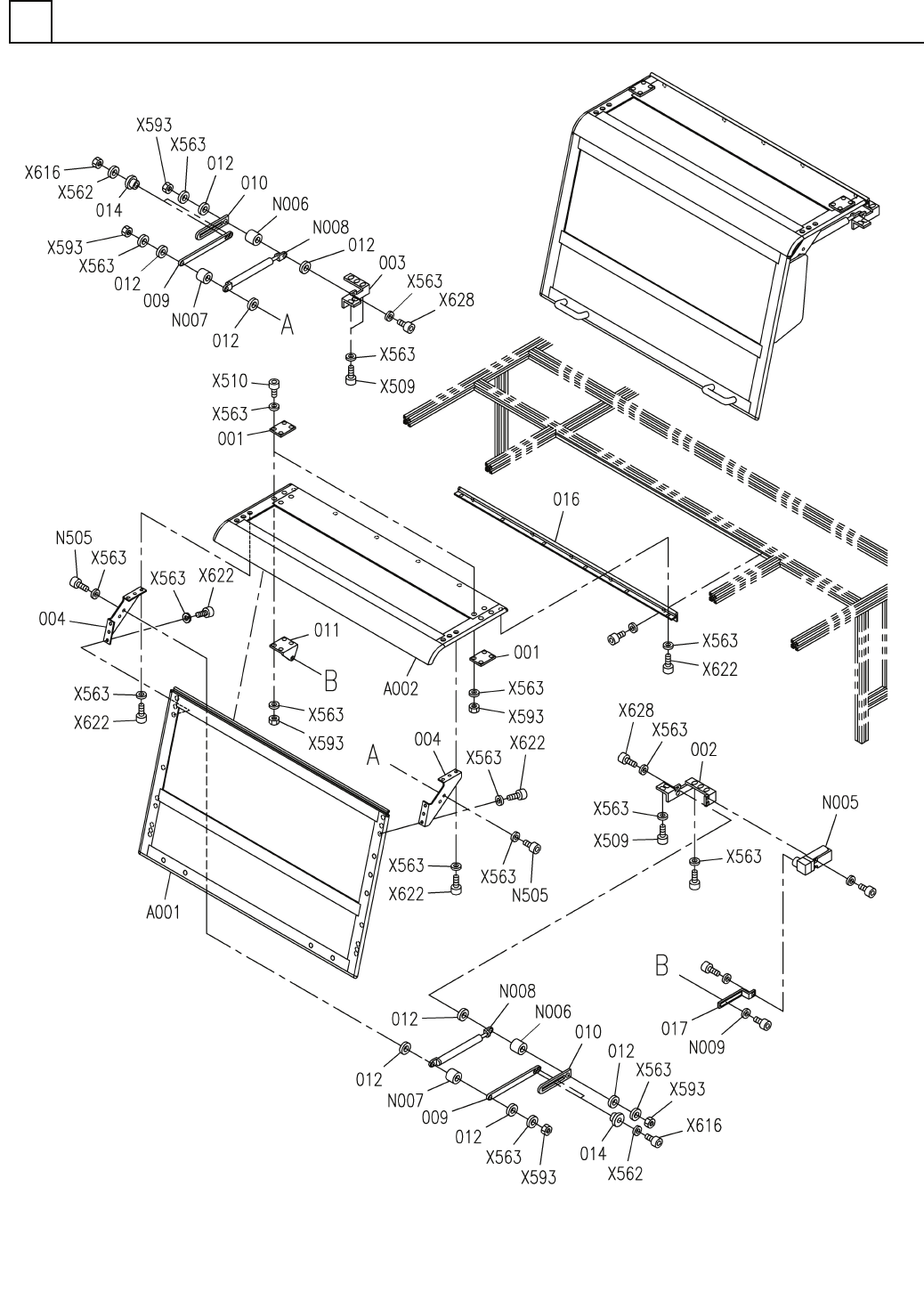

ｶﾊﾞｰ部(ﾄﾞｱ部1)
COVER SECT.(DOOR SECT.-1)
6
FN610131662AA_02-1
M73
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
6
ｶﾊﾞｰ部(ﾄﾞｱ部1)
COVER SECT.(DOOR SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610131662AA
DOOR UNIT ﾄﾞ
ｱﾕﾆｯﾄ
1
A001
N610125386AA
FRONT COVER ｶﾊﾞｰ(FRONT)
1
A002
N610125393AA
TOP COVER ｶﾊﾞｰ(TOP)
3001 N210149152AA
PLATE ﾌ
ﾟﾚｰﾄ
1002 N210154738AA
BRACKET ﾌﾞﾗｹｯﾄ
2
003 N210154737AA
BRACKET ﾌﾞﾗｹｯﾄ
2
004 N210149147AB
BRACKET ﾌﾞﾗｹｯﾄ
2009 N210155318AA
STOPPER PLATE ｽﾄｯﾊ
ﾟﾌﾟﾚｰﾄ
2010 N210155317AA
STOPPER PLATE ｽﾄｯﾊﾟ
ﾌﾟﾚｰﾄ
1
011 N210155344AA
GUIDE PLATE ｶﾞｲﾄﾞﾌﾟﾚｰﾄ
16012 N210149151AA
BUSH ﾌﾞｯｼｭ
2014 N210155312AA
COLLAR ｶﾗｰ
1
016 N210149171AA
HINGE ﾁｮｳﾊﾞﾝ
1
017 N210155958AA
LEVER ﾚﾊﾞｰ
D4NH-1BBC S
1
N005
N510037850AA
SWITCH ｽｲｯﾁ
87NCLBH6-16-26.2
2
N006
N510059586AA
COLLAR ｶﾗｰ
87NCLBH6-16-22.2
2
N007
N510059587AA
COLLAR ｶﾗｰ
KMF70-40 S
2
N008
KXF0E381A00
GAS SPRING ｶﾞｽｽﾌﾟﾘﾝｸﾞ
87FWSSB-D6.0-V4.0-T5.
1
N009
N510059824AA
WASHER ﾜｯｼｬ
M5X16-10.9 A2J (Triva
6
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X20-10.9 A2J (Triva
8
X510
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
8
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
52
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5-6H-4T A2J (Trivale
19
X593
N510017862AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X12-10.9 A2J (Triva
4
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Triva
22
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X50-10.9 A2J (Triva
2
X628
N510017409AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X55-10.9 A2J (Triva
2
N505
N510017412AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M74
FN610131662AA_02-1
ｶﾊﾞｰ部(ﾄﾞｱ部2)
COVER SECT.(DOOR SECT.-2)
6
FN610131662AA_02-2
M75
