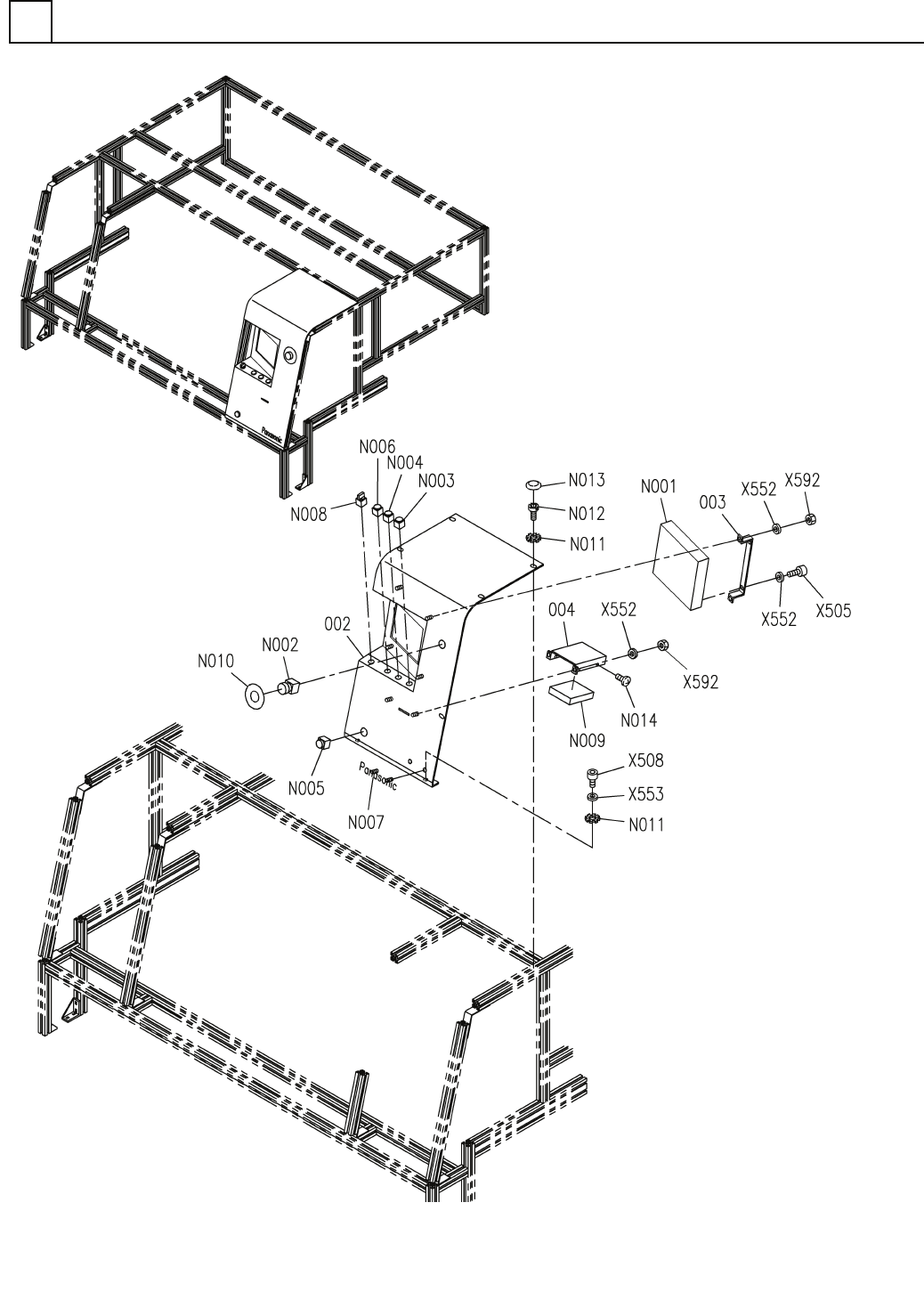

PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 6 ｶﾊﾞｰ部 (ｺﾝｿｰﾙﾊ ﾟﾈﾙ部) COVER SECT. (CONSOLE PANEL SECT.) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610125663AA PANEL ATTACHM ENT UNIT ﾊﾟﾈﾙﾄﾘﾂｹﾕﾆｯﾄ 1 002 N210157252AA COVER ｶﾊﾞｰ 2 0…
ｶﾊﾞｰ部(ｺﾝｿｰﾙﾊﾟﾈﾙ部)
COVER SECT.(CONSOLE PANEL SECT.)
6
FN610125663AA_03
M95
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
6
ｶﾊﾞｰ部(ｺﾝｿｰﾙﾊﾟﾈﾙ部)
COVER SECT.(CONSOLE PANEL SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610125663AA
PANEL ATTACHMENT UNIT ﾊﾟﾈﾙﾄﾘﾂｹﾕﾆｯﾄ
1
002 N210157252AA
COVER ｶﾊﾞｰ
2
003 N210149709AA
BRACKET ﾌﾞﾗｹｯﾄ
1004 N210157010AA
COVER ｶﾊ
ﾞｰ
R08RPF S
1
N001
N510055076AA
PANEL ﾊﾟ
ﾈﾙ
XW1E-BV402MFR-TK2377 S
1
N002
N510011524AA
SWITCH ｽｲｯﾁ
LW6L-M1C10VG-BC-TK250 S
1
N003
N510058513AA
SWITCH ｽｲｯﾁ
LW6L-M1C10VB-BC-TK250
1
N004
N510056841AA
SWITCH ｽｲｯﾁ
LW6L-M1C10VW-BC-TK250
1
N005
N510056842AA
SWITCH ｽｲｯﾁ
LW6L-M1C14VW-BC-TK250
1
N006
N510058509AA
SWITCH ｽｲｯﾁ
P-18(screw) S
1
N007
KXF0DXPLA00
NAME PLATE ﾒｲﾊﾞﾝ
AR22PR-220B S
1
N008
KXFP5GEAA00
SWITCH ｽｲｯﾁ
YD-8V06 S
1
N009
N510014081AA
CARD READER ｶｰﾄﾞﾘｰﾀﾞ
1
N010
3086239031
LABEL ﾗﾍﾞﾙ
5 External toothed St
7
N011
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
JB-A M5X8 +
5
N012
N510038044AA
BOLT ﾎ
ﾞﾙﾄ
M5X12
5
N013
N986YYYY-814
CAP ｷｬｯﾌﾟ
M3X5-4.8 A2J (Trivale
4
N014
N510018251AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4-6H-4T A2J (Trivale
6
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X10-10.9 A2J (Triva
4
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
4 10H A2J (Trivalent)
10
X552
N510018479AA
ROUND PLAIN WASHER ｺｶﾞｶﾏﾙﾋﾗｻﾞｶﾞﾈ
M5X12-10.9 A2J (Triva
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
2
X553
N510018480AA
ROUND PLAIN WASHER ｺｶﾞ
ﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
