PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 7 挿入ﾍｯﾄ ﾞ部(挿入 動力部4) INSERTION H EAD SECT. (INSERTION P OWER SECT. -4) 部 品 名 品 番 個数 備 考 R 1 R 2 1 049 N210092181AA SPRING ｽﾌ ﾟﾘﾝｸﾞ 1 056 N210048696AA WASHER ﾜｯｼｬ 1 05…

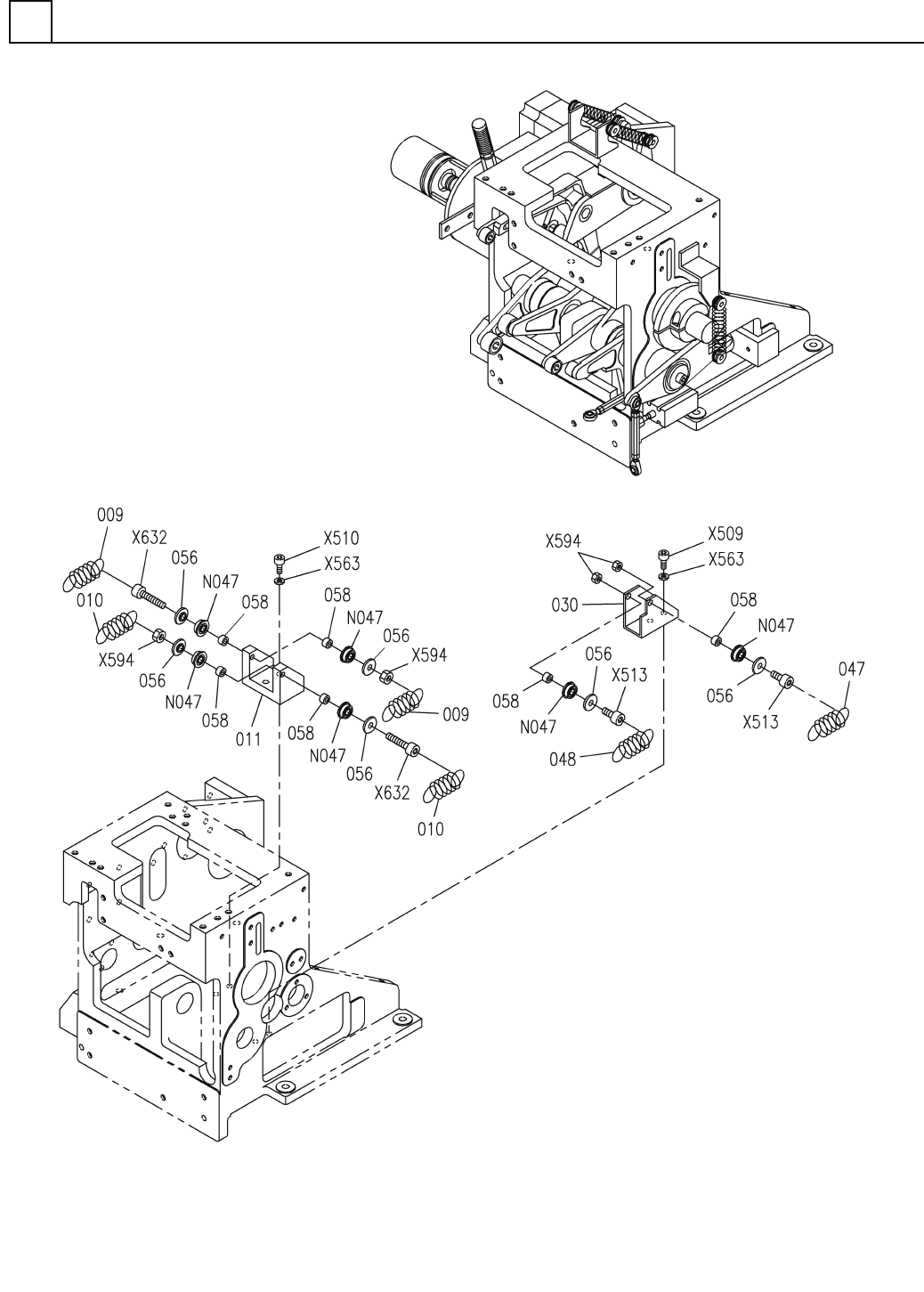

挿入ﾍｯﾄﾞ部(挿入動力部4)
INSERTION HEAD SECT.(INSERTION POWER SECT.-4)
7
FN610129985AA_05-4
M109
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部4)
INSERTION HEAD SECT.(INSERTION POWER SECT.-4)
部 品 名 品 番 個数
備 考
R
1
R
2
1049 N210092181AA
SPRING ｽﾌ
ﾟﾘﾝｸﾞ
1
056 N210048696AA
WASHER ﾜｯｼｬ
1
058 N210084980AA
COLLAR ｶﾗ-
1068 X01A45104
BRACKET ｶﾅｸ
ﾞ
1069 X01A45105
BRACKET(CYLINDER) ﾌﾞﾗｹｯﾄ
(ｼﾘﾝﾀﾞ)
1
072 X01A45113
BRACKET ｶﾅｸﾞ
1
073 N210092186AA
BRACKET ﾌﾞﾗｹｯﾄ
CDG1BN25-25-H7A1S
1
N035
N401CDG1-C49
CYLINDER ｼﾘﾝﾀ
ﾞ
CDU20-40D
1
N038
N401CDU2040D
CYLINDER ｼﾘﾝﾀ
ﾞ
F696ZZIMC3PS2S
1
N047
N510020363AA
BEARING ﾍﾞｱﾘﾝｸﾞ
AS1201F-M5-06
2
N057
KXF00YNAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
AS2201F-01-06S
2
N058
KXF00ZCAA00
SPEED CONTROLLER ｽﾋﾟ
ｰﾄﾞｺﾝﾄﾛｰﾗ
M5X12-10.9 A2J (Triva
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Triva
4
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X20-10.9 A2J (Triva
1
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X25-10.9 A2J (Triva
2
X517
N510017473AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
5 10H A2J (Trivalent)
8
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
Thick washer for M8
2
X575
N510020102AA
WASHER ｻﾞｶﾞﾈ
M6-6H-4T A2J (Trivale
2
X594
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5X50-10.9 A2J (Triva
2
X628
N510017409AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X30-10.9 A2J (Triva
1
X630
N510017438AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
D-H7A1
1
V 1 N401DH7A1
SWITCH ｽｲｯﾁ
M110
FN610129985AA_05-4
挿入ﾍｯﾄﾞ部(挿入動力部5)
INSERTION HEAD SECT.(INSERTION POWER SECT.-5)
7
FN610129985AA_05-5
M111
