部品手册1N7203A389B - 第145页
PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 7 挿入ﾍｯﾄ ﾞ部(挿入 動力部6) INSERTION H EAD SECT. (INSERTION P OWER SECT. -6) 部 品 名 品 番 個数 備 考 R 1 R 2 1 025 X02G45121 COLLAR ｶﾗｰ 1 026 X02G45122 COLLAR ｶﾗｰ 1 027 X02G45123 …

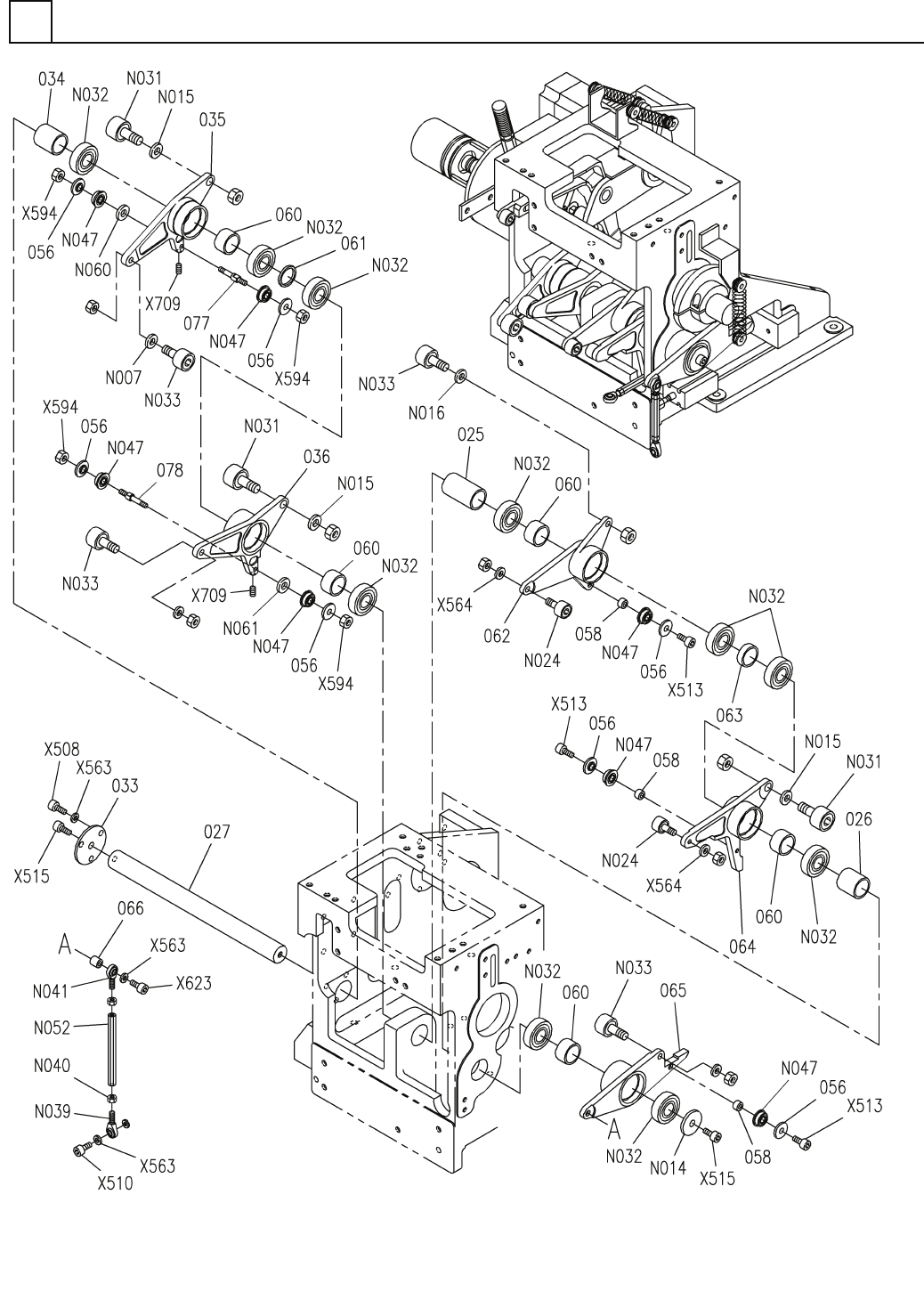

挿入ﾍｯﾄﾞ部(挿入動力部6)
INSERTION HEAD SECT.(INSERTION POWER SECT.-6)
7
FN610129985AA_05-6
M113
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部6)
INSERTION HEAD SECT.(INSERTION POWER SECT.-6)
部 品 名 品 番 個数
備 考
R
1
R
2
1025 X02G45121
COLLAR ｶﾗｰ
1
026 X02G45122
COLLAR ｶﾗｰ
1
027 X02G45123
SHAFT ｼｬﾌﾄ
1033 X02G45133
PLATE ﾌ
ﾟﾚｰﾄ
1034 X02G45134
COLLAR ｶﾗｰ
1
035 N210150042AA
LEVER ﾚﾊﾞｰ
1
036 N210145711AA
LEVER ﾚﾊﾞｰ
7056 N210048696AA
WASHER ﾜｯｼｬ
3058 N210084980AA
COLLAR ｶﾗ
-
5
060 X01A45069
COLLAR ｶﾗｰ
1061 X01A45071
COLLAR ｶﾗｰ
1062 N210154471AA
LEVER ﾚﾊ
ﾞｰ
1
063 X01A45081
COLLAR ｶﾗｰ
1
064 N210145712AA
LEVER ﾚﾊﾞｰ
1065 N210092185AA
LEVER ﾚﾊﾞｰ
1066 X01A45089
COLLAR ｶﾗｰ
1
077 N210145713AA
PIN ﾋﾟﾝ
1
078 N210145714AA
PIN ﾋﾟﾝ
87FWSSM-D13.0-V8.0-T2
1
N007
N510038168AA
WASHER ﾜｯｼｬ
87WASMH30-8
1
N014
N510027896AA
WASHER ﾜｯｼｬ
87FWSSM-D20.0-V12.0-T
3
N015
N510057551AA
WASHER ﾜｯｼｬ
87FWSSM-D15.0-V8.0-T3
1
N016
N510038169AA
WASHER ﾜｯｼｬ
CFN6R-A
2
N024
N531CFN6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CFN12R-A
3
N031
N531CFN12RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
6905ZZ
10
N032
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN8R-A
4
N033
N531CFN8RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
P0S5L
1
N039
N533P0S5L
ROD END ﾛｯﾄ
ﾞｴﾝﾄﾞ
M5,1-TYPE,STEEL,Z.C.T
1
N040
N510018945AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
P0S5
1
N041
N533P0S5
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
F696ZZIMC3PS2S
7
N047
N510020363AA
BEARING ﾍﾞｱﾘﾝｸﾞ
87LBMFN5-60
1
N052
N510038166AA
ROD ﾛｯﾄ
ﾞ
87FWSSM-D9.0-V6.0-T2.
1
N060
N510057552AA
WASHER ﾜｯｼｬ
87FWSSM-D9.0-V6.0-T4.
1
N061
N510057554AA
WASHER ﾜｯｼｬ
M5X12-10.9 A2J (Triva
3
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20-10.9 A2J (Triva
1
X510
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M6X20-10.9 A2J (Triva
3
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X16-10.9 A2J (Triva
2
X515
N510017470AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
5
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶ
ﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
2
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻ
ﾞｶﾞﾈ
M6-6H-4T A2J (Trivale
4
X594
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5X25-10.9 A2J (Triva
1
X623
N510017399AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X5-45H A2J (Trivale
2
X709
N510018372AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M114
FN610129985AA_05-6
挿入ﾍｯﾄﾞ部（ｶﾑ(2P))
INSERTION HEAD SECT.(CAM(2P))
7
FN610130682AA_00
M115
