部品手册1N7203A389B - 第150页

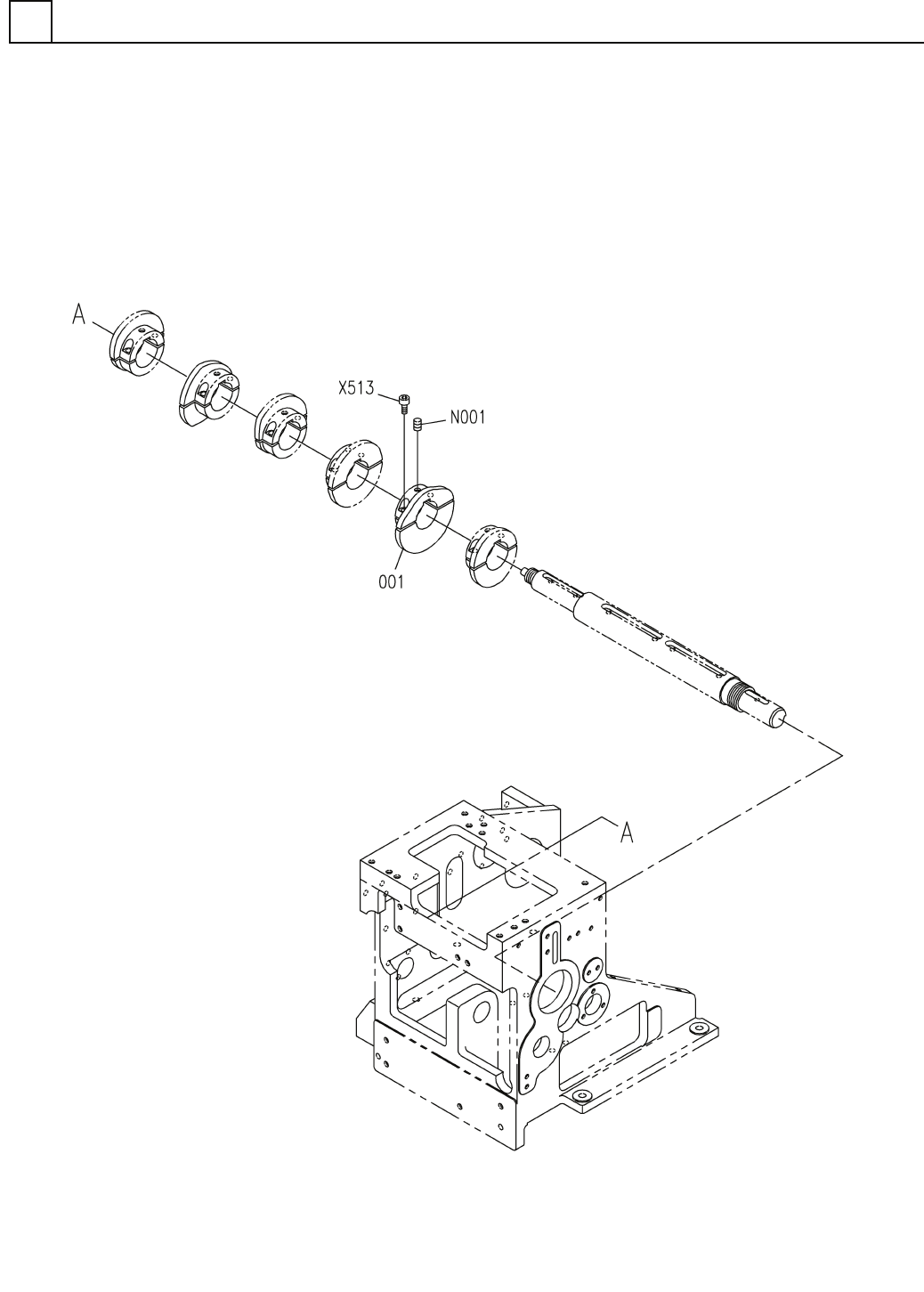

挿入ﾍｯﾄﾞ部 （ｶﾑ(4 P)) INSERTION H EAD SECT. (CAM(4P)) 7 FN610130684AA_00 M119
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部（ｶﾑ(3P))
INSERTION HEAD SECT.(CAM(3P))
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610130683AA
INSERTION HEAD UNIT ｿｳﾆｭｳﾍｯﾄ
ﾞﾕﾆｯﾄ
1
001 N210145759AB
CAM ｶﾑ
M8X10 45H A2J (Trival
1
N001
N510018388AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M6X20-10.9 A2J (Triva
2
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M118
FN610130683AA_00
挿入ﾍｯﾄﾞ部（ｶﾑ(4P))
INSERTION HEAD SECT.(CAM(4P))
7
FN610130684AA_00
M119
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部（ｶﾑ(4P))
INSERTION HEAD SECT.(CAM(4P))
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610130684AA
INSERTION HEAD UNIT ｿｳﾆｭｳﾍｯﾄ
ﾞﾕﾆｯﾄ
1
001 N210145760AA
CAM ｶﾑ
M8X10 45H A2J (Trival
1
N001
N510018388AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M6X20-10.9 A2J (Triva
2
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M120
FN610130684AA_00
