部品手册1N7203A389B - 第178页
ﾃｰﾌﾟ屑ﾀﾞｸ ﾄ部(8 0ｽﾃｰｼｮﾝ) WASTE TAPE DUCT SECT .(80 STATION ) 9 FN610130631AA_02 M147
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
9
ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(40ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610123555AA
WASTE TAPE DUCT UNIT ﾃｰﾌﾟ
ｸｽﾞ ﾀﾞｸﾄﾕﾆｯﾄ
1
001 N210152892AA
DUCT ﾀﾞｸﾄ
1
002 N210154433AB
BRACKET ﾌﾞﾗｹｯﾄ
1003 N210145904AB
BRACKET ﾌ
ﾞﾗｹｯﾄ
NMC406-Blue
2
N001
N510040711AA
BOX ﾎﾞｯｸｽ
M5
12
N002
N510020100AA
WASHER ｻﾞｶﾞﾈ
M5X10-10.9 A2J (Triva
8
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X25-10.9 A2J (Triva
4
X623
N510017399AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M146
FN610123555AA_03

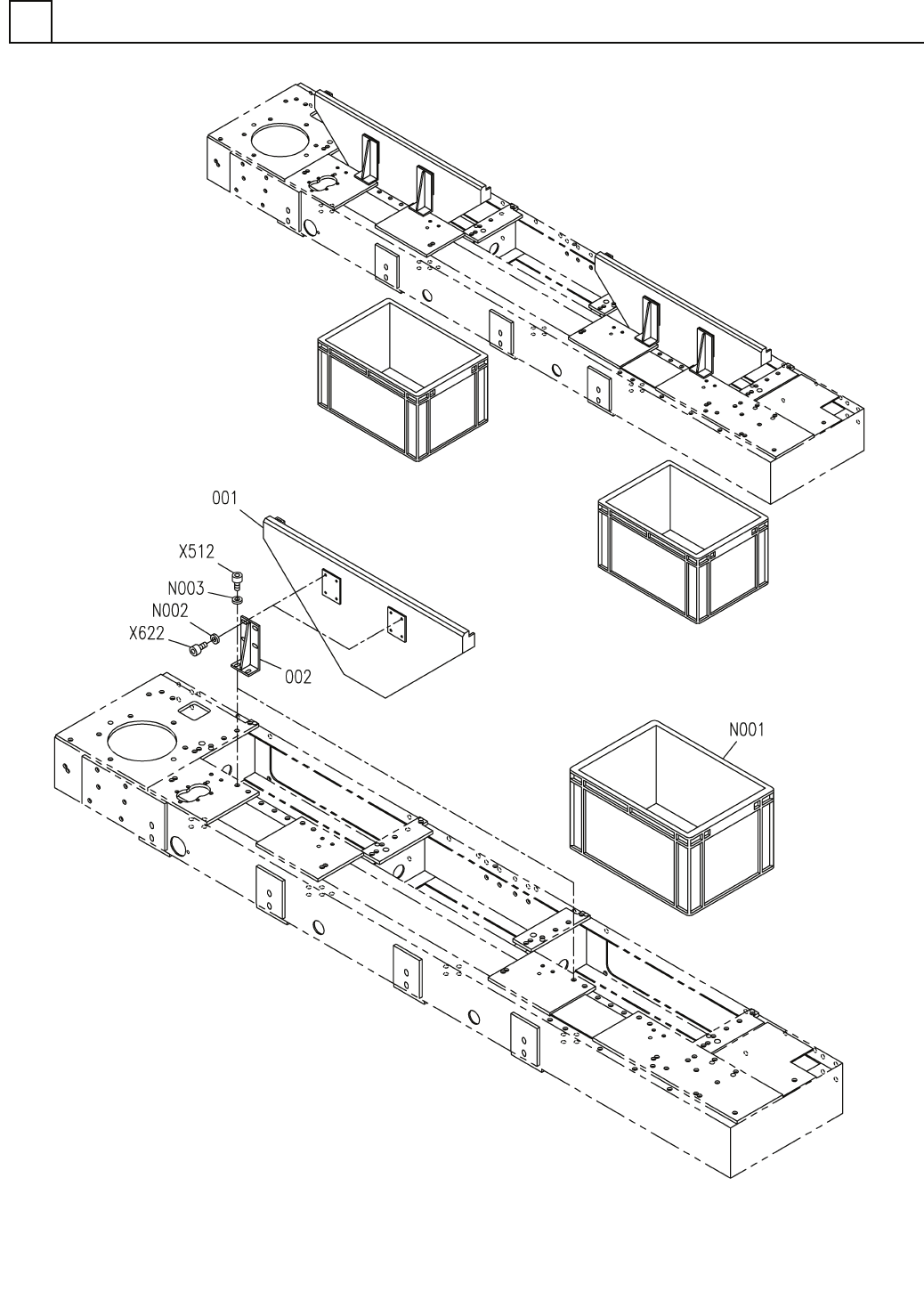

ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(80ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(80 STATION)
9
FN610130631AA_02
M147
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
9
ﾃｰﾌﾟ屑ﾀﾞｸﾄ部(80ｽﾃｰｼｮﾝ)
WASTE TAPE DUCT SECT.(80 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610130631AA
WASTE TAPE DUCT UNIT ﾃｰﾌﾟ
ｸｽﾞ ﾀﾞｸﾄﾕﾆｯﾄ
2
001 N210152892AA
DUCT ﾀﾞｸﾄ
4
002 X02P14008
BRACKET ﾌﾞﾗｹｯﾄ
NMC406-Blue
2
N001
N510040711AA
BOX ﾎ
ﾞｯｸｽ
M5
16
N002
N510020100AA
WASHER ｻﾞ
ｶﾞﾈ
M6
8
N003
N510020101AA
WASHER ｻﾞｶﾞﾈ
M6X16-10.9 A2J (Triva
8
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Triva
16
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M148
FN610130631AA_02
