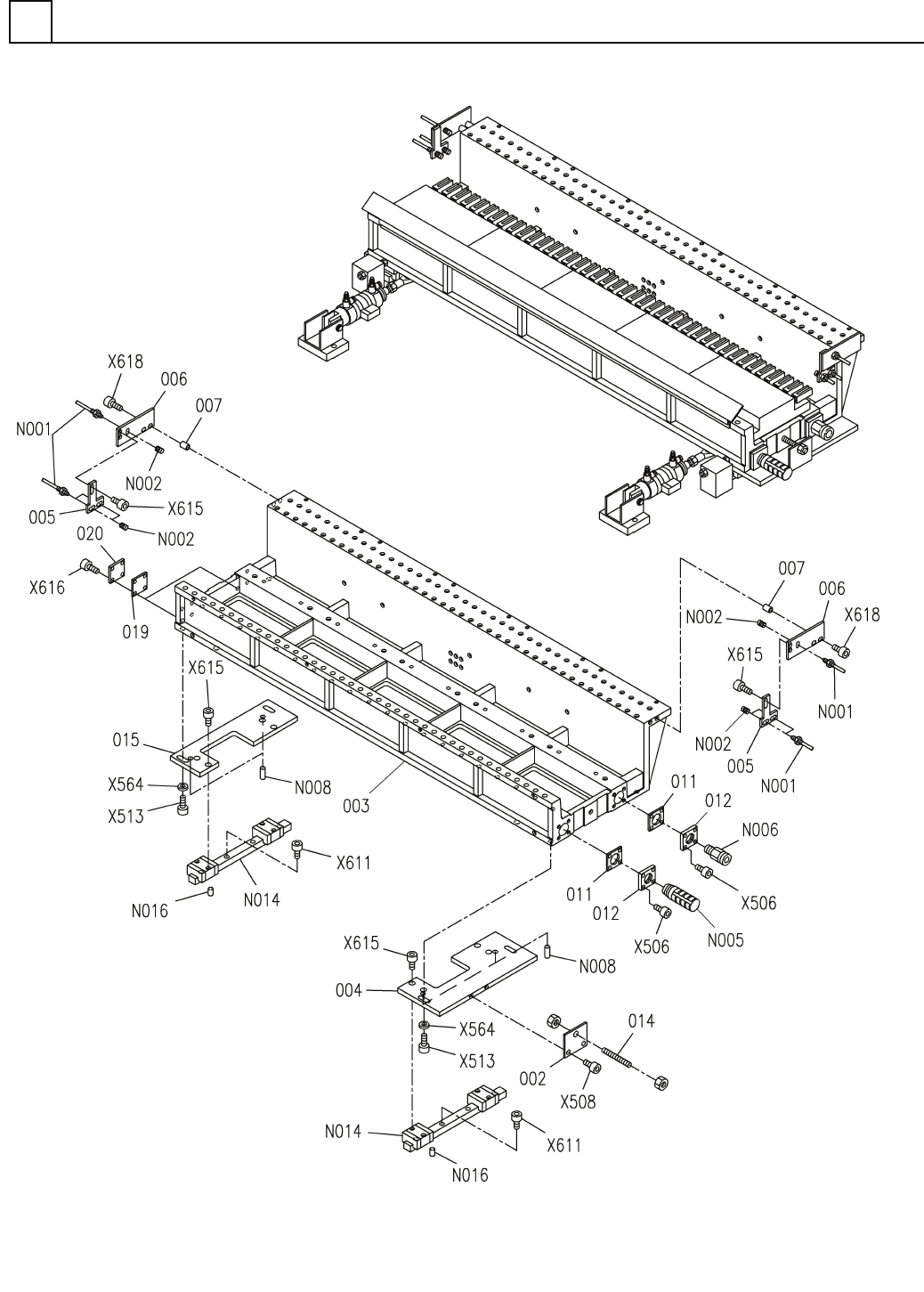

部品供給部（ﾃｰﾌﾟﾌｨｰﾀﾞ駆動部1）(40ｽﾃｰｼｮﾝ)
FEEDER CARRIAGE SECT.(TAPE FEEDER DRIVING SECT.-1)(40 STATION)
17
FN610123557AA_05-1
M199
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
17
部品供給部（ﾃｰﾌﾟﾌｨｰﾀﾞ駆動部1）(40ｽﾃｰｼｮﾝ)
FEEDER CARRIAGE SECT.(TAPE FEEDER DRIVING SECT.-1)(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610123557AA
FEEDER CARRIAGE UNIT ﾌﾞﾋﾝｷｮｳｷｭｳﾕﾆｯﾄ
1
002 X02P07013
PLATE ﾌﾟﾚｰﾄ
1
003 N210098162AB
FRAME ﾌﾚｰﾑ
1004 N210106774AB
PLATE ﾌ
ﾟﾚｰﾄ
2005 N210113070AA
PLATE ﾌﾟﾚｰﾄ
2
006 N210113076AA
PLATE ﾌﾟﾚｰﾄ
4
007 X02P07007
SPACER ｽﾍﾟｰｻ
2011 X02P07011
PACKING ﾊ
ﾟｯｷﾝ
2012 X02P07012
PLATE ﾌﾟﾚｰﾄ
1
014 X01A31029
ADJUSTING BOLT ｱｼﾞｬｽﾄﾎﾞﾙﾄ
1015 N210106775AA
GUIDE ｶﾞｲﾄﾞ
2019 X02P07019
PACKING ﾊ
ﾟｯｷﾝ
2
020 X02P07020
PLATE ﾌﾟﾚｰﾄ
E32-T11R
3
N001
KXF0DZAPA00
SENSOR ｾﾝｻ
E39-F1
3
N002
N310E39F1
LENS UNIT ﾚﾝｽﾞﾕﾆｯﾄ
AN303-03
1
N005
KXF00WGAA00
SILENCER ｻｲﾚﾝｻ
KQ2H10-03S
1
N006
KXF0E34XA00
FITTING ﾂｷﾞﾃ
87MS6-15
4
N008
N510022040AA
PIN ﾋﾟﾝ
SR15V2UU+220L-2
2
N014
N513SR15-171
GUIDE ｶﾞｲﾄﾞ
87MS6-10
4
N016
N510028981AA
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
M3X16-10.9 A2J (Triva
8
X611
N510017313AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trival
12
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Triva
8
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X25-10.9 A2J (Triva
4
X618
N510017359AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X12-10.9 A2J (Triva
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X20-10.9 A2J (Triva
4
X513
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Triva
8
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
6 10H A2J (Trivalent)
4
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
