部品搬 送部(1)(40 ｽﾃｰｼｮﾝ) PARTS TRANSFER SECT. (1)(40 ST ATION) 19 FN610123556AA_05-1 M221
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
18
部品ﾎﾞｯｸｽ部(ﾘｰﾙｻﾎﾟｰﾄ部<小>)(ｵﾌﾟｼｮﾝ)
PARTS BOX SECT.(REEL SUPPORT SECT. <SMALL>)(OPTION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610130363AA
PARTS BOX UNIT ﾌﾞﾋﾝﾎ
ﾞｯｸｽﾕﾆｯﾄ
2
001 N210142694AA
HOLDER(REEL) ﾎﾙﾀﾞ(ﾘｰﾙ)
1
002 N210143010AA
SHAFT ｼｬﾌﾄ
M4X6-10.9 A2J (Trival
4
N001
N510017534AA
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾀﾝﾎﾞﾙﾄ
M220
FN610130363AA_00
部品搬送部(1)(40ｽﾃｰｼｮﾝ)
PARTS TRANSFER SECT.(1)(40 STATION)
19
FN610123556AA_05-1
M221
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
19

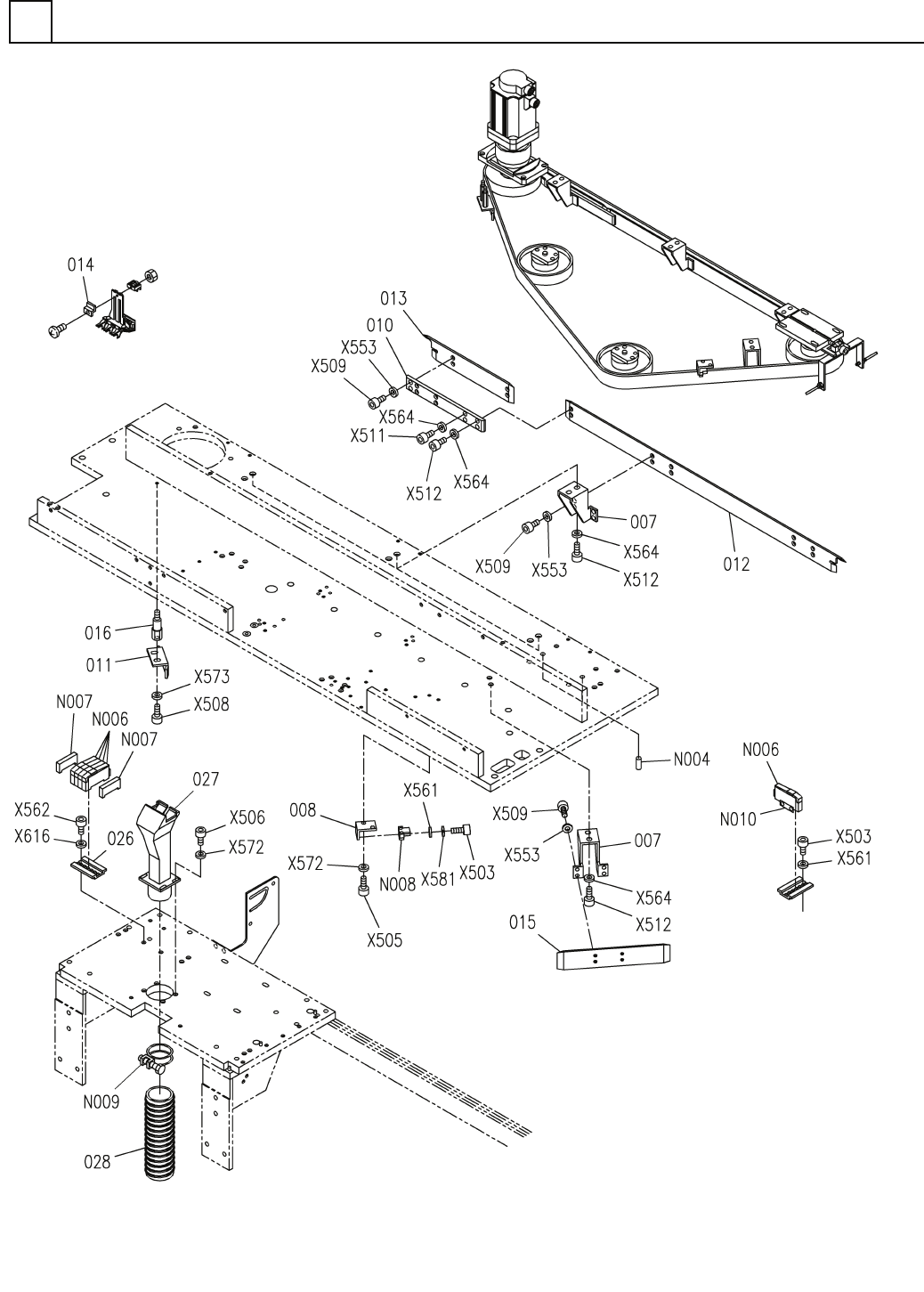

部品搬送部(1)(40ｽﾃｰｼｮﾝ)
PARTS TRANSFER SECT.(1)(40 STATION)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610123556AA
PARTS TRANSFER UNIT ﾌﾞﾋﾝﾊﾝｿｳﾕﾆｯﾄ
4
007 X02P27004
BRACKET ﾌﾞﾗｹｯﾄ
1
008 X02P26012
BRACKET ﾌﾞﾗｹｯﾄ
1010 N210147246AA
PLATE ﾌ
ﾟﾚｰﾄ
1011 N210145737AB
GUIDE ｶﾞ
ｲﾄﾞ
1
012 N210153392AB
GUIDE ｶﾞｲﾄﾞ
1
013 N210153393AA
GUIDE ｶﾞｲﾄﾞ
1014 X01A35027
DETECTION PLATE ｹﾝｼｭﾂﾊ
ﾞﾝ
1015 N210147242AA
GUIDE ｶﾞ
ｲﾄﾞ
2
016 N210159895AA
SPACER ｽﾍﾟｰｻ
1026 X02G35111
RAIL ﾚｰﾙ
1027 N210155603AB
DUCT ﾀ
ﾞｸﾄ
1
028 N210096148AB
HOSE ﾎｰｽ
MS10-15
2
N004
N986MS1015
PIN ﾋﾟﾝ
E3X-NA11
5
N006
N310E3XNA11
AMPLIFIER ｱﾝﾌﾟ
PFP-M
2
N007
N322PFPM
PLATE ﾌ
ﾟﾚｰﾄ
EE-SX671
1
N008
KXF01YEAA00
SENSOR ｾﾝｻ
92210-SY65(SUS)
1
N009
N510023057AA
BAND ﾊﾞﾝﾄﾞ
E39-L143
1
N010
KXF0E0BBA00
BRACKET ﾄﾘﾂｹｶﾅｸﾞ
M3X12-10.9 A2J (Triva
4
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X10-10.9 A2J (Triva
2
X505
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Triva
2
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Triva
4
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X12-10.9 A2J (Triva
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X16-10.9 A2J (Triva
16
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X10-10.9 A2J (Triva
4
X511
N510017424AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Triva
10
X512
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
3 10H A2J (Trivalent)
4
X561
N510018478AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
2
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
16
X553
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
12
X564
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4
6
X572
N510020099AA
WASHER ﾜｯｼｬ
M5
2
X573
N510020100AA
WASHER ｻﾞｶﾞﾈ
No.2 3 S A2J (Trivale
2
X581
N510018327AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
M222
