PART No. ｲﾗｽﾄ No. REF No. PAR T NAME REMARKS Q'TY 20 部品加工部( 部品位置決 め部(4P) 2) PARTS PROCE SS SECT.( PARTS POSITI ONING SECT (4P).-2) 部 品 名 品 番 個数 備 考 R 1 R 2 1 008 N210154460AA SHAFT ｼｬﾌﾄ 1 010 N210085719AC PIN ﾋﾟﾝ 1 …

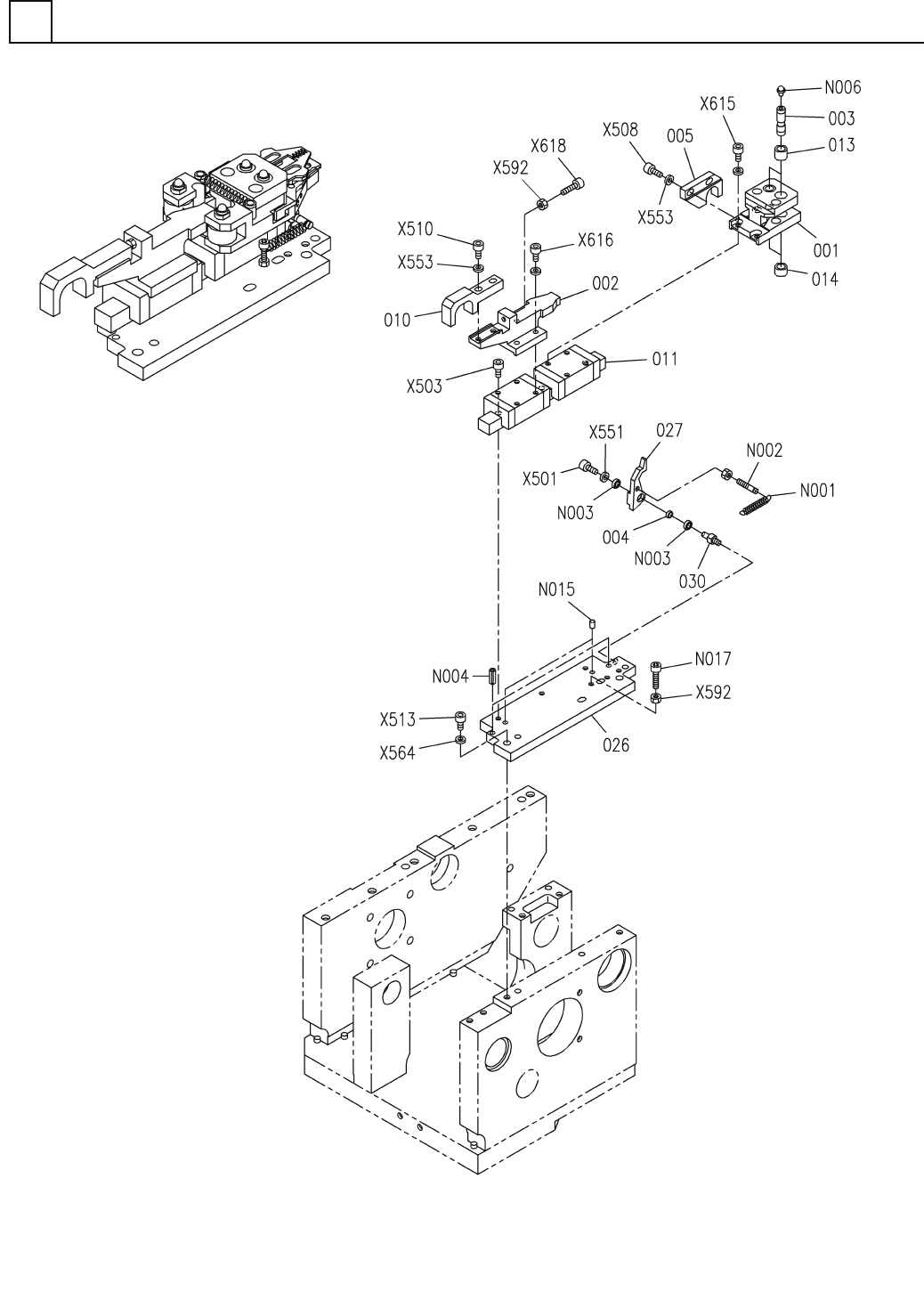

部品加工部(部品位置決め部(4P)2)
PARTS PROCESS SECT.(PARTS POSITIONING SECT(4P).-2)
20
FN610130086AA_05-2
M255
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(部品位置決め部(4P)2)
PARTS PROCESS SECT.(PARTS POSITIONING SECT(4P).-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1008 N210154460AA
SHAFT ｼｬﾌﾄ
1
010 N210085719AC
PIN ﾋﾟﾝ
1
011 N210085720AA
LEVER ﾚﾊﾞｰ
1012 N210085721AA
PIN ﾋ
ﾟﾝ
1014 N210154643AB
BRACKET ﾌﾞﾗｹｯﾄ
1
016 X01L11026
LEVER ﾚﾊﾞｰ
1
017 X01A11046
COLLAR ｶﾗｰ
1018 X02G11120
PLATE ﾌ
ﾟﾚｰﾄ
1019 X01L11050
PLATE ﾍﾞｱﾘﾝｸ
ﾞｵｻｴ
1
020 X01L11051
SPACER ｽﾍﾟｰｻ
1021 X01A11047
LEVER ﾚﾊﾞｰ
1027 N210103579AB
PIN ﾋ
ﾟﾝ
1
029 N210088897AA
SPRING ｽﾌﾟﾘﾝｸﾞ
1
030 N210088898AA
COLLAR ｶﾗｰ
1031 X01A1102603
SPRING ｱｯｼｭｸﾊﾞﾈ
1032 N210098686AA
COLLAR ｶﾗｰ
LM10UU
1
N001
N513LM10UU
BUSHING ﾌﾞｯｼﾝｸﾞ
2X10,STEEL
1
N003
XPL2A10WFW
SPRING PIN ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
6800ZZ
2
N005
KXF00M6AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
N0S4T
2
N006
N533N0S4T
ROD END ﾛｯﾄ
ﾞｴﾝﾄﾞ
NOS4TL
2
N007
N533N0S4TL
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
87FWSSB-D15.0-V4.0-T3
2
N010
N510028123AA
WASHER ﾜｯｼｬ
M3X40
2
N011
N401CDQS-D87
BOLT ﾎ
ﾞﾙﾄ
USB4-15
1
N012
N986USB415
STOPPER BOLT ｽﾄｯﾊ
ﾟﾎﾞﾙﾄ
6000ZZ
2
N013
KXF0E3BVA00
BEARING ﾍﾞｱﾘﾝｸﾞ
KJL06-M5
2
N014
KXF029LAA00
FITTING ﾂｷﾞﾃ
87LMST10
1
N015
N510036441AA
PLATE ﾌ
ﾟﾚｰﾄ
87FWSSB-D12.0-V5.0-T3
1
N017
N510036443AA
WASHER ﾜｯｼｬ
87LBMFN4-75
1
N018
N510041172AA
ROD ﾛｯﾄﾞ
CFN5R-A
1
N020
N531CFN5RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CDQSB16-15D-F9NVS
1
N021
N401CDQS-D76
CYLINDER ｼﾘﾝﾀ
ﾞ
87LBMFN4-125
1
N022
N510023242AA
ROD ﾛｯﾄﾞ
M3X6-10.9 A2J (Trival
2
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X8-10.9 A2J (Trival
4
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X12-10.9 A2J (Triva
2
X503
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X12-10.9 A2J (Triva
5
X616
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Triva
3
X506
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X20-10.9 A2J (Triva
1
X617
N510017354AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X30-10.9 A2J (Triva
1
X619
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M5X12-10.9 A2J (Triva
1
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
5
X562
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
8 10H A2J (Trivalent)
1
X565
N510018503AA
WASHER ﾋﾗｻ
ﾞｶﾞﾈ
10 10H A2J (Trivalent
1
X556
N510018483AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivale
2
X592
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5-6H-4T A2J (Trivale
1
X593
N510017862AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M8-6H-4T A2J (Trivale
1
X595
N510017877AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
D-F9NV
1
V 1 N401DF9NV
SENSOR ｾﾝｻ
M256
FN610130086AA_05-2
部品加工部(Vｶｯﾄ部(2P/3P)1)
PART PROCESS SECT. (V-CUT SECT.(2P/3P)-1)
20
FN610125960AA_02-1
M257
